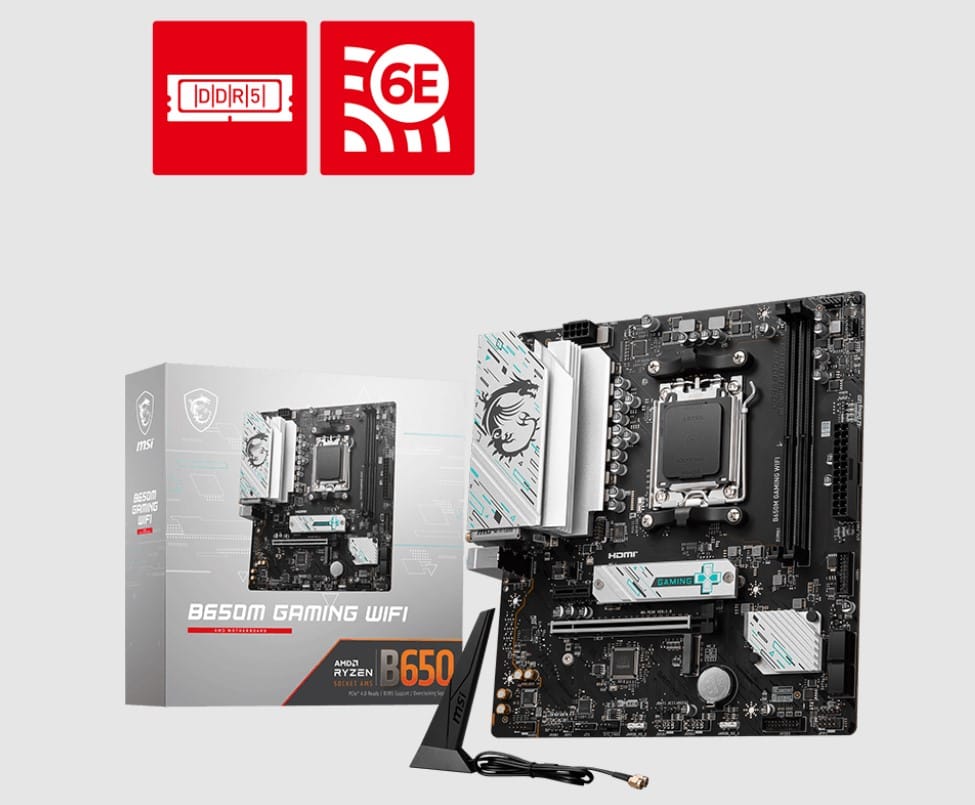

MSI B650M GAMING WIFI AM5 Micro-ATX Motherboard

MSI B650M GAMING WIFI AMD AM5 MATX Motherboard, 4x DDR5 ~128GB, 1x PCI-E x16, 2x M.2, 4x SATA, 8x USB 3.2,

CHIPSET AMD B650
CPU SUPPORT Supports AMD Ryzen 7000 Series Desktop Processors
Socket AM5

MEMORY 4x DDR5, Maximum Memory Capacity 128GB
Memory Support DDR5 6400+(OC)/6200(OC)/6000(OC)/5800(OC)/5600(OC)/5400(OC)/5200(OC)/5000(OC)/4800(JEDEC) MHz
Max. overclocking frequency:
1DPC 1R Max speed up to 6400+ MHz
1DPC 2R Max speed up to 5800+ MHz
2DPC 1R Max speed up to 6000+ MHz
2DPC 2R Max speed up to 4000+ MHz

Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports AMD EXPO

ONBOARD GRAPHICS 1x HDMI
1x DisplayPort
Support HDMITM 2.1, maximum resolution of 4K 60Hz*
Supports DP1.4, maximum resolution of 4K 60Hz*
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.

EXPANSION SLOT 2x PCI-E x16 slot
1x PCI-E x1 slot
PCI_E1 PCIe 4.0 supports up to x16 (From CPU)
PCI_E2 PCIe 3.0 supports up to x1 (From Chipset)
PCI_E3 PCIe 4.0 supports up to x4 (From Chipset)

STORAGE 2x M.2 slot
M.2_1 (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_2 (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
4x SATA 6G port

USB 4x USB 2.0 (Front)
4x USB 3.2 Gen1 Type A (Rear)
2x USB 3.2 Gen1 Type A (Front)
4x USB 3.2 Gen2 Type A (Rear)
1x USB 3.2 Gen2 Type C (Front)

PCB DIMENSION mATX
243.84mmx243.84mm
