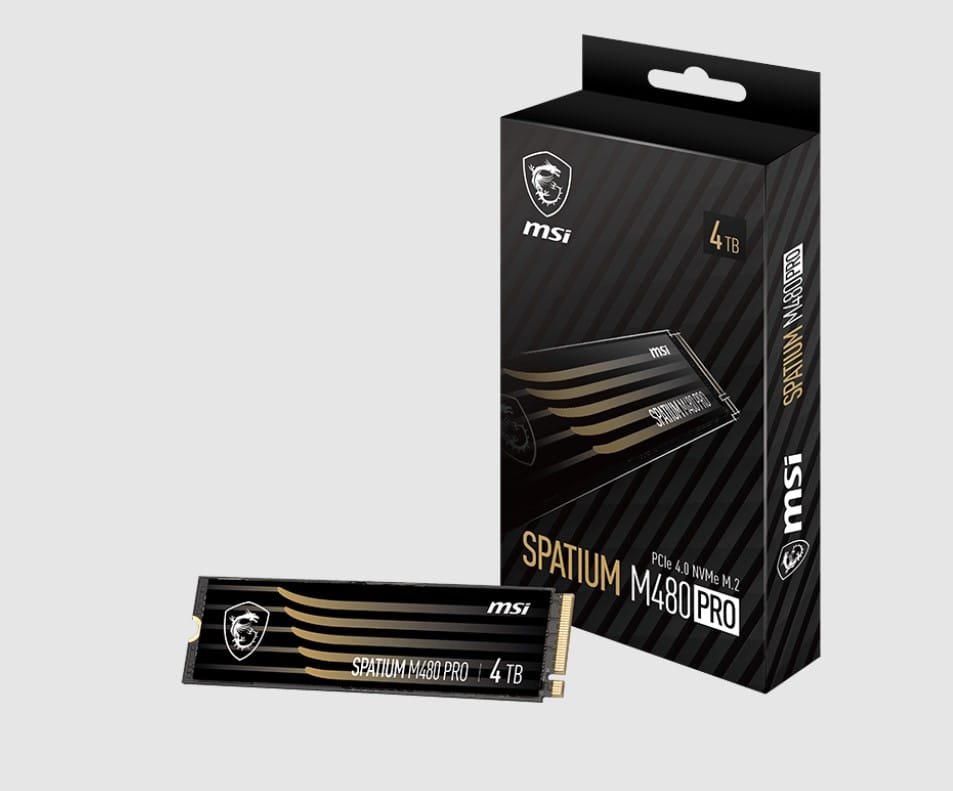

MSI 4TB M480 PCIe 4.0 NVMe M.2 SSD, Sequential Read up to 7400MB/s, Sequential Write 7000MB/s, 3000 TBW, 5 Year Warranty
MSI 4TB M480 PCIe 4.0 NVMe M.2 SSD, Sequential Read up to 7400MB/s, Sequential Write 7000MB/s, 3000 TBW, 5 Year Warranty
Capacity 4TB
Controller PHISON E18
Flash Memory 3D NAND
DRAM Cache 2GB DDR4
Form Factor M.2 2280
Interface PCIe Gen4 x4, NVMe 1.4
Compatibility PCIe Gen4 / Gen3 / Gen2 / Gen1
Dimensions 80.00mm (L) x 22.00mm (W) x 2.15mm (H)
Sequential Read up to (MB/s) 7400
Sequential Write up to (MB/s) 7000
Random Read 4KB up to (IOPS) 1,000,000
Random Write 4KB up to (IOPS) 1,000,000
Maximum Operating Power (W) 11.3
Idle Power PS3 (mW) 50
Low Power L1.2 (mW) 3
Operating Temperatures 0DegC 70DegC
Storage Temperatures -40DegC 85DegC
Terabytes Written (TBW) 3000
Mean Time Between Failure (MTBF) Up to 1,600,000 Hours
Limited Warranty 5 Years, or the coverage for the maximum TBW as stated, whichever comes first.
Capacity 4TB
Controller PHISON E18
Flash Memory 3D NAND
DRAM Cache 2GB DDR4
Form Factor M.2 2280
Interface PCIe Gen4 x4, NVMe 1.4
Compatibility PCIe Gen4 / Gen3 / Gen2 / Gen1
Dimensions 80.00mm (L) x 22.00mm (W) x 2.15mm (H)
Sequential Read up to (MB/s) 7400
Sequential Write up to (MB/s) 7000
Random Read 4KB up to (IOPS) 1,000,000
Random Write 4KB up to (IOPS) 1,000,000
Maximum Operating Power (W) 11.3
Idle Power PS3 (mW) 50
Low Power L1.2 (mW) 3
Operating Temperatures 0DegC 70DegC
Storage Temperatures -40DegC 85DegC
Terabytes Written (TBW) 3000
Mean Time Between Failure (MTBF) Up to 1,600,000 Hours
Limited Warranty 5 Years, or the coverage for the maximum TBW as stated, whichever comes first.
| Features | |
| NVMe version | 1.4 |
| SSD capacity The Solid State Drive's data storage capacity. | 4 TB |
| SSD form factor The size of the solid-state drive, given in inches | M.2 |
| Interface Interface ports to connect pieces of equipment. USB (Universal Serial Bus) has become the most popular wired interface to connect peripherals. USB 2.0 supports speeds up to 480 Mbit/s (USB 1: 12 Mbit/s). The interface FireWire is also known as the IEEE 1394 standard. Enhanced IDE (EIDE)is sometimes referred to as Fast ATA, Fast IDE or ATA-2. | PCI Express 4.0 |
| NVMe NVM Express (NVMe) or Non-Volatile Memory Host Controller Interface Specification (NVMHCIS) is an open logical device interface specification for accessing non-volatile storage media attached via a PCI Express (PCIe) bus. NVM Express, as a logical device interface, has been designed to capitalize on the low latency and internal parallelism of solid-state storage devices. |
 |
| Memory type Type of memory in the device e.g. DDR3, SRAM (Static RAM). | 3D NAND |
| Component for What this product is used as a part of (component for). | PC/Laptop |
| M.2 SSD size | 2280 (22 x 80 mm) |
| Read speed The speed at which a device can read data. | 7400 MB/s |
| Write speed The speed at which a device can write data. | 7000 MB/s |
| Random read (4KB) | 1000000 IOPS |
| Random write (4KB) | 1000000 IOPS |
| Controller type | Phison E18 |
| PCI Express interface data lanes | x4 |
| PCI Express CEM revision | 4.0 |
| S.M.A.R.T. support |
|
| ECC ECC means Error Correction Code, and it is memory that is able to detect and correct some memory errors without user intervention. |
|
| Mean time between failures (MTBF) Statistical model used to indicate product/mechanism reliability; expressed in hours and percentage of duty cycle. This number (in hours) does not indicate the mean time before failure for a single unit/mechanism. | 1600000 h |
| TBW rating | 1400 |
| Power | |
| Power consumption (max) The maximum amount of power used by the device. | 11.3 W |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 22 mm |
| Depth The distance from the front to the back of something. | 80 mm |
| Height The measurement of the product from head to foot or from base to top. | 2.15 mm |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 70 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -40 - 85 °C |
| SKU | 815923 |
| MPN | SPATIUM M480 4TB |
| Brand | MSI |
| Product Condition | Brand New/Unused |
| Drive Form Factor | M.2 |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 5 Years Warranty |
| Warranty Contact | https://au.msi.com/ |
