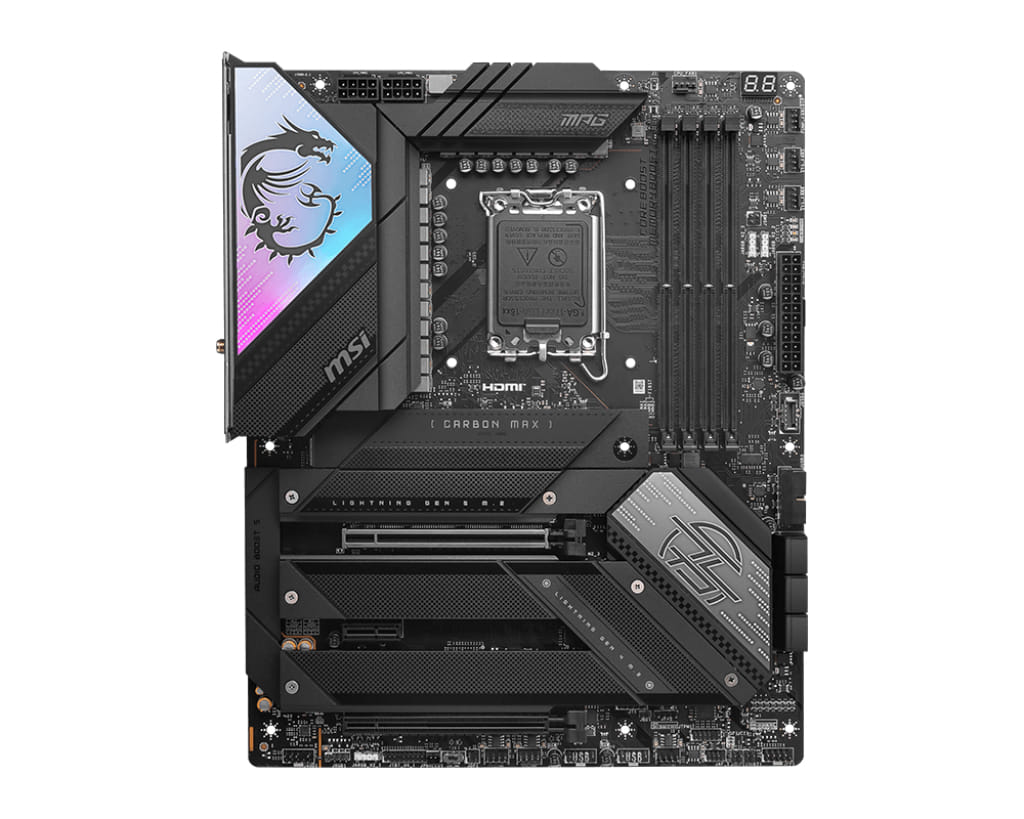

MSI MPG Z790 CARBON MAX WIFI, Intel, LGA 1700, Intel Celeron , Intel Pentium Gold, LGA 1700, DDR5-SDRAM, 128 GB
MPG Z790 CARBON MAX WIFI employs a carbon black color scheme and reflection decoration over Mysticlight RGB lighting to show a different identity. It is also powerful inside by featuring Wi-Fi 7 solution, optimized DDR5 circuit, and the latest PCIe 5.0 M.2 with Screwless M.2 Shield Frozr, making this motherboard one of the best Z790 ATX motherboards for Intel 14th Gen and 13th Gen Core processors.
The MPG series brings out fashionable products by showing extremely unique styles and expressing a conceited attitude towards the challenge of the gaming world. With extraordinary performance and style, the MPG series defines the future of gaming fashion.
TOOL-FREE M.2 INSTALLATION
Industrial first Magnetic with patented Screwless M.2 Shield Frozr & EZ M.2 Clip provide the easiest way for M.2 Installation.
Extended Heatsink
Extended Heatsink enlarges the surface of heat dissipation, ensuring even high-end processors to run in full speed.
Direct Touch Heat-pipe
Connecting two MOS heatsinks to enlarge the surface of heat dissipation.
M.2 Shield Frozr
Keeps M.2 SSDs safe while preventing throttling, making them run faster.
7W/mK Thermal Pad
High quality 7W/mK MOSFET thermal pads and extra choke thermal pads ensure all cores running in high performance.
Enhanced M.2 Thermal
Double-sided M.2 Shield Frozr and Enlarged heatsink desing keep M.2 SSDs safe while preventing throttling.
Enlarged PCH Heatsink
The enlarged heatsink design to reduce dust and noise as well as maintain high heat dissipation efficiency.
SMT PCIE 5.0 SLOT
The advanced SMT(Surface Mount Technology) PCIE slot diminish interference and electrical noise, fully support the PCI-E 5.0 signal.
The MPG series brings out fashionable products by showing extremely unique styles and expressing a conceited attitude towards the challenge of the gaming world. With extraordinary performance and style, the MPG series defines the future of gaming fashion.
TOOL-FREE M.2 INSTALLATION
Industrial first Magnetic with patented Screwless M.2 Shield Frozr & EZ M.2 Clip provide the easiest way for M.2 Installation.
Extended Heatsink
Extended Heatsink enlarges the surface of heat dissipation, ensuring even high-end processors to run in full speed.
Direct Touch Heat-pipe
Connecting two MOS heatsinks to enlarge the surface of heat dissipation.
M.2 Shield Frozr
Keeps M.2 SSDs safe while preventing throttling, making them run faster.
7W/mK Thermal Pad
High quality 7W/mK MOSFET thermal pads and extra choke thermal pads ensure all cores running in high performance.
Enhanced M.2 Thermal
Double-sided M.2 Shield Frozr and Enlarged heatsink desing keep M.2 SSDs safe while preventing throttling.
Enlarged PCH Heatsink
The enlarged heatsink design to reduce dust and noise as well as maintain high heat dissipation efficiency.
SMT PCIE 5.0 SLOT
The advanced SMT(Surface Mount Technology) PCIE slot diminish interference and electrical noise, fully support the PCI-E 5.0 signal.
| Processor | |
| Processor manufacturer The manufacturer that produced the processor. | Intel |
| Processor socket Mechanical component(s) that provides mechanical and electrical connections between a microprocessor and a printed circuit board (PCB). This allows the processor to be replaced without soldering. | LGA 1700 |
| Compatible processor series A processor which is compatible with this device, belongs to a 'series' which is part of 'family' e.g Celeron D, Celeron G, Celeron M, or, in some cases, is the same as 'family'. | Intel® Celeron®, Intel® Pentium® Gold |
| Supported processor sockets The sockets (plugs) for processors that are supported (can be used) by the device. | LGA 1700 |
| Memory | |
| Supported memory types Types of memory which can be used with the product. | DDR5-SDRAM |
| Number of memory slots | 4 |
| Memory channels | Dual-channel |
| ECC сompatibility | Non-ECC |
| Supported memory clock speeds Memory clock speed is the time it takes for a computer to complete basic operations. It refers to the computer's processing speed and is measured in hertz. It is however not such a reliable measure of a computer's speed as it doesn't take into account other factors like RAM and cache size. | 4800,5000,5200,5400,5600,5800,6400,6600,6800,7000,7200,7400,7600 MHz |
| Supported memory clock speed (max) | 7600 MHz |
| Maximum internal memory The maximum internal memory which is available in the product. | 128 GB |
| Unbuffered memory |
 |
| Storage controllers | |
| Supported storage drive types The type of storage drives the device is compatible with. | HDD & SSD |
| Supported storage drive interfaces | M.2, PCI Express |
| Number of storage drives supported How many storage drives can be fit into the product at once. | 10 |
| RAID levels RAID is a storage technology that combines multiple disk drive components into a logical unit for the purposes of data redundancy and performance improvement. Data is distributed across the drives in one of several ways, referred to as RAID levels, depending on the specific level of redundancy and performance required. | 0, 1, 5, 10 |
| Graphics | |
| Parallel processing technology support Parallel processing technology is the simultaneous use of more than one CPU or processor core to execute a program or multiple computational threads. Ideally, parallel processing makes programs run faster because there are more engines (CPUs or Cores) running it. In practice, it is often difficult to divide a program in such a way that separate CPUs or cores can execute different portions without interfering with each other. Most computers have just one CPU, but some models have several, and multi-core processor chips are becoming the norm. There are even computers with thousands of CPUs. | Not supported |
| Internal I/O | |
| USB 2.0 connectors The end of a cable with a USB 2.0 connector. USB 2.0 was released in April 2000 (now called "Hi-Speed"), adding higher maximum signaling rate of 480 Mbit/s (effective throughput up to 35 MB/s or 280 Mbit/s), in addition to the "USB 1.x Full Speed" signaling rate of 12 Mbit/s. USB 2.0 connectors are usually colored black. | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors This is a connector (normally attached to a cable) for USB 3.0. USB 3.0 is the second major revision of the Universal Serial Bus (USB) standard for computer connectivity. First introduced in 2008, USB 3.0 adds a new transfer mode called "SuperSpeed," (distinguishable from USB 2.0 by either the blue colour of the port or the initials SS) capable of transferring data at up to 5Gbit/s—more than ten times as fast as the 480 Mbit/s top speed of USB 2.0. | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
| Number of SATA III connectors Serial ATA (Advanced Technology Attachment) (SATA) is a computer bus interface that connects host bus adapters to mass storage devices such as hard disk drives and optical drives. SATA III (revision 3.x) interface, formally known as SATA 6Gb/s, is a third generation SATA interface running at 6.0Gb/s. The bandwidth throughput, which is supported by the interface, is up to 600MB/s. This interface is backwards compatible with SATA 3 Gb/s interface. | 6 |
| Front panel audio connector |
|
| Front panel connector |
|
| CPU fan connector |
|
| TPM connector |
|
| RGB LED pin header |
|
| Rear panel I/O ports | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 6 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity Number of USB 3.1 (3.1 Gen 2) ports with Type-C connector. USB 3.1 (3.1 Gen 2) is USB interface version which supports transfer rate up to 10 Gbit/s (SuperSpeed+). USB Type-C connector has symmetrical design architecture and compatible with Thunderbolt 3 interface. | 1 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
| Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. | 1 |
| HDMI ports quantity The number of sockets (ports) for HDMI connections. HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor, video projector, digital television, or digital audio device. HDMI is a digital replacement for existing analog video standards. | 1 |
| HDMI version | 2.1 |
| S/PDIF out port S/PDIF (Sony/Philips Digital Interconnect Format) is a digital audio interconnect used in consumer audio equipment over relatively short distances. The signal is transmitted over either a coaxial cable with RCA connectors or a fibre optic cable with TOSLINK connectors. |
|
| Network | |
| Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable. |
|
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Wi-Fi Popular technology that allows an electronic device to exchange data or connect to the internet wirelessly using radio waves. |
|
| Top Wi-Fi standard Connection of this device is done via Wi-Fi in a high standard. | Wi-Fi 6 (802.11ax) |
| Wi-Fi standards The type of wireless local area network (LAN). It can be ad-hoc, where units in a network communicate peer-to-peer, or Infrastructure, where units communicate with each other via an access point A LAN interconnects computers in a small area e.g. home, school or office. | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
| Bluetooth Bluetooth is a low-power radio technology developed to replace the cables and wires currently used to link or connect electronic devices such as personal computers, printers, and a wide variety of handheld devices including mobile phones. Because it uses radio-wave connectivity, a Bluetooth-enabled device has a constant, established connection to whatever browser it uses. This saves the user the trouble of logging on to check for emails or news updates, for example. |
|
| Bluetooth version The type of bluetooth technology in the product e.g. Bluetooth Smart (v4.0). | 5.3 |
| Features | |
| Motherboard chipset The chipset connects the microprocessor to the rest of the motherboard. | Intel Z790 |
| Audio output channels An audio output channel is an electric circuit which acts as a path for a signal produced by a device. A device may have several audio output channels. | 7.1 channels |
| Component for What this product is used as a part of (component for). | PC |
| Motherboard form factor Design of the motherboard (ATX, BTX etc). | ATX |
| Motherboard chipset family The category of motherboard chipset e.g. Intel, AMD. | Intel |
| Windows operating systems supported Windows vesions wich can be used with the device. | Windows 10 x64, Windows 11 x64 |
| BIOS | |
| BIOS type The BIOS (Basic Input/Output System) initializes and tests system hardware components, and loads a bootloader or an operating system from a mass memory device. The BIOS additionally provides abstraction layer for the hardware, i.e. a consistent way for application programs and operating systems to interact with the keyboard, display, and other input/output devices. There are several types of BIOS, including the motherboard ROM BIOS, video BIOS, drive controller BIOS, network adapter BIOS, and SCSI adapter BIOS. | UEFI AMI |
| BIOS memory size | 256 Mbit |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 304.8 mm |
| Depth The distance from the front to the back of something. | 243.8 mm |
| Packaging content | |
| Cables included | SATA |
| SKU | 754079 |
| MPN | MPG Z790 CARBON MAX WIFI |
| Brand | MSI |
| Product Condition | Brand New/Unused |
| Case/MB Form Factor | ATX |
| Motherboard Chipset | Intel Z790 |
| CPU Socket | LGA 1700 |
| Memory Type | DDR5 |
| Memory Form Factor | DIMM |
