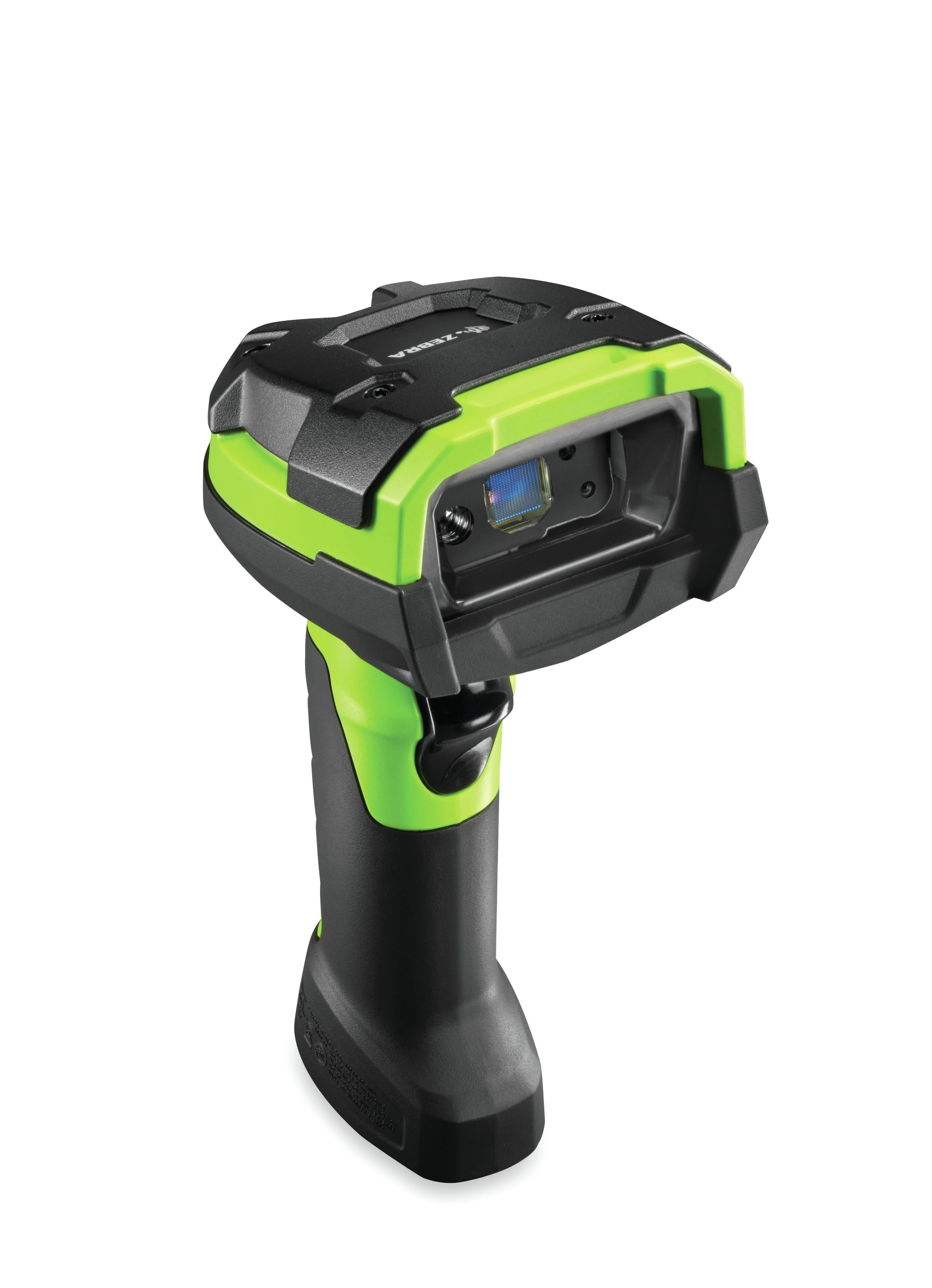

Zebra DS3608-SR, Handheld bar code reader, 1D/2D, LED, Codabar,Code 11,Code 128,Code 39,Code 93,GS1-128 (UCC/EAN-128),MSI,Plessey,U.P.C., Aztec Code, Composite Codes, Data Matrix, Han Xin, MaxiCode, Micro QR Code, MicroPDF417, PDF417,..., 610 nm
UNSTOPPABLE PERFORMANCE FOR STANDARD RANGE 1D/2D BARCODE CAPTURE
As a member of the Zebra 3600 Ultra-Rugged Series of scanners, the practically indestructible 1D/2D DS3608-SR corded and DS3678-SR cordless scanners are ready for the world's toughest environments the warehouse and manufacturing floor. Designed to capture virtually any barcode from near contact to as far as 5 ft./1.5 m away, these scanners are loaded with features that deliver truly unstoppable performance, redefining reliability and management simplicity. The result? The dependable, fast and accurate scanning you need to take the quality of your products and your customer service to the next level.
SUPERIOR PERFORMANCE
You get the ultimate in scanning performance period. Your workers can scan virtually any 1D or 2D electronic or printed barcode in any condition, as fast as they can pull the trigger. With 30 percent more working range, it's easy to capture barcodes that are farther away. Even if barcodes are under shrinkwrap or damaged, dirty or poorly printed, no problem this intelligent scanner can handle it all.
ULTRA-RUGGED DESIGN
The manufacturing plant floor is as tough as its gets and the cost of unplanned downtime on the production line is astronomical. That's why we created a new product category the ultra-rugged scanner. The corded and cordless models are the only scanners in this class that are dust-tight, sprayproof and waterproofed to IP67, with an IP65-sealed cradle for a complete rugged cordless solution.
UNRIVALED MANAGEABILITY
With our complimentary industry-best tools, managing these scanners couldn t be easier. You can remotely configure and upgrade your scanners, format data properly for instant transmission into your business applications, monitor battery statistics for your cordless models and more.
As a member of the Zebra 3600 Ultra-Rugged Series of scanners, the practically indestructible 1D/2D DS3608-SR corded and DS3678-SR cordless scanners are ready for the world's toughest environments the warehouse and manufacturing floor. Designed to capture virtually any barcode from near contact to as far as 5 ft./1.5 m away, these scanners are loaded with features that deliver truly unstoppable performance, redefining reliability and management simplicity. The result? The dependable, fast and accurate scanning you need to take the quality of your products and your customer service to the next level.
SUPERIOR PERFORMANCE
You get the ultimate in scanning performance period. Your workers can scan virtually any 1D or 2D electronic or printed barcode in any condition, as fast as they can pull the trigger. With 30 percent more working range, it's easy to capture barcodes that are farther away. Even if barcodes are under shrinkwrap or damaged, dirty or poorly printed, no problem this intelligent scanner can handle it all.
ULTRA-RUGGED DESIGN
The manufacturing plant floor is as tough as its gets and the cost of unplanned downtime on the production line is astronomical. That's why we created a new product category the ultra-rugged scanner. The corded and cordless models are the only scanners in this class that are dust-tight, sprayproof and waterproofed to IP67, with an IP65-sealed cradle for a complete rugged cordless solution.
UNRIVALED MANAGEABILITY
With our complimentary industry-best tools, managing these scanners couldn t be easier. You can remotely configure and upgrade your scanners, format data properly for instant transmission into your business applications, monitor battery statistics for your cordless models and more.
| Scanning | |
| Type Characteristics of the device. | Handheld bar code reader |
| Optical sensor resolution | 1280 pixels |
| Scanner type Indicates the type of scanner this product is. | 1D/2D |
| Sensor type A sensor is a convertor than measures a physical quality (light, temperature etc.) and displays this electronically on a device. | LED |
| Linear (1D) barcodes supported The product can read linear (1D) barcordes. | Codabar,Code 11,Code 128,Code 39,Code 93,GS1-128 (UCC/EAN-128),MSI,Plessey,U.P.C. |
| 2D (matrix & stacked) barcodes supported The product can read matrix (2D) barcordes. | Aztec Code, Composite Codes, Data Matrix, Han Xin, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code, TLC-39 |
| Wavelength The distance over which a wave repeats itself. The wavelength determines the characteristics of the wave e.g. red light has a different wavelength to blue light. | 610 nm |
| Tilt reading angle | -65 - 65° |
| Pitch reading angle | -65 - 65° |
| Yaw reading angle | -45 - 45° |
| Ports & interfaces | |
| Connectivity technology The technology that enables connectivity of the device, e.g. wired or wireless. | Wired |
| Standard interfaces Most common industry-standard communication protocols ranging from RS-232, RS-422, RS-423, RS-485, and LVDS to USB. | RS-232, USB, Keyboard wedge |
| Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable. |
 |
| Performance | |
| International Protection (IP) code The IP code classifies and rates the degree of protection provided against the intrusion (including body parts such as hands and fingers), dust, accidental contact, and water by mechanical casings and electrical enclosures. It is published by the International Electrotechnical Commission (IEC). The digits (characteristic numerals) indicate conformity with the conditions summarized in the tables below. Where there is no protection rating with regard to one of the criteria, the digit is replaced with the letter X. an electrical socket rated IP22 is protected against insertion of fingers and will not be damaged or become unsafe during a specified test in which it is exposed to vertically or nearly vertically dripping water. Another example is the Sony Xperia Z Ultra, one of the first cellular phones to be IP-rated; it is rated at IP58 and marketed as "dust resistant" and can be "immersed in 1.5 meter of freshwater for up to 30 minutes". | IP67 |
| Protection features Physical effects from which the product is protected e.g. water resistant, crash proof. | Dust resistant, Shock resistant, Water resistant |
| LED indicators |
|
| Product colour The colour e.g. red, blue, green, black, white. | Black, Green |
| Programming function |
|
| Power | |
| Power source type What the power source is. | Battery |
| Battery technology The type of battery in the device, e.g. nickel–cadmium (NiCd). | Lithium-Ion (Li-Ion) |
| Battery capacity A measure of the charge stored by the battery. Determined by the mass of active material contained in the battery. | 3100 mAh |
| Number of reads per charge | 100000 |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 132 mm |
| Depth The distance from the front to the back of something. | 76 mm |
| Height The measurement of the product from head to foot or from base to top. | 185 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 305 g |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | -30 - 50 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -40 - 70 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Technical details | |
| Sustainability certificates | RoHS |
| SKU | 564004 |
| MPN | DS3608-SR3U4600VZW |
| Brand | Motorola |
| Product Condition | Brand New/Unused |
| Product Use | General |
| Stock Availability | Available for Shipping |
