Milesight MS N7032UPH, 32 channels, 3840 x 2160 pixels, 1280x720@30fps, 1920x1080@30fps, G.711, H.264, H.265, Digital PTZ, Preset point, Preset sequence

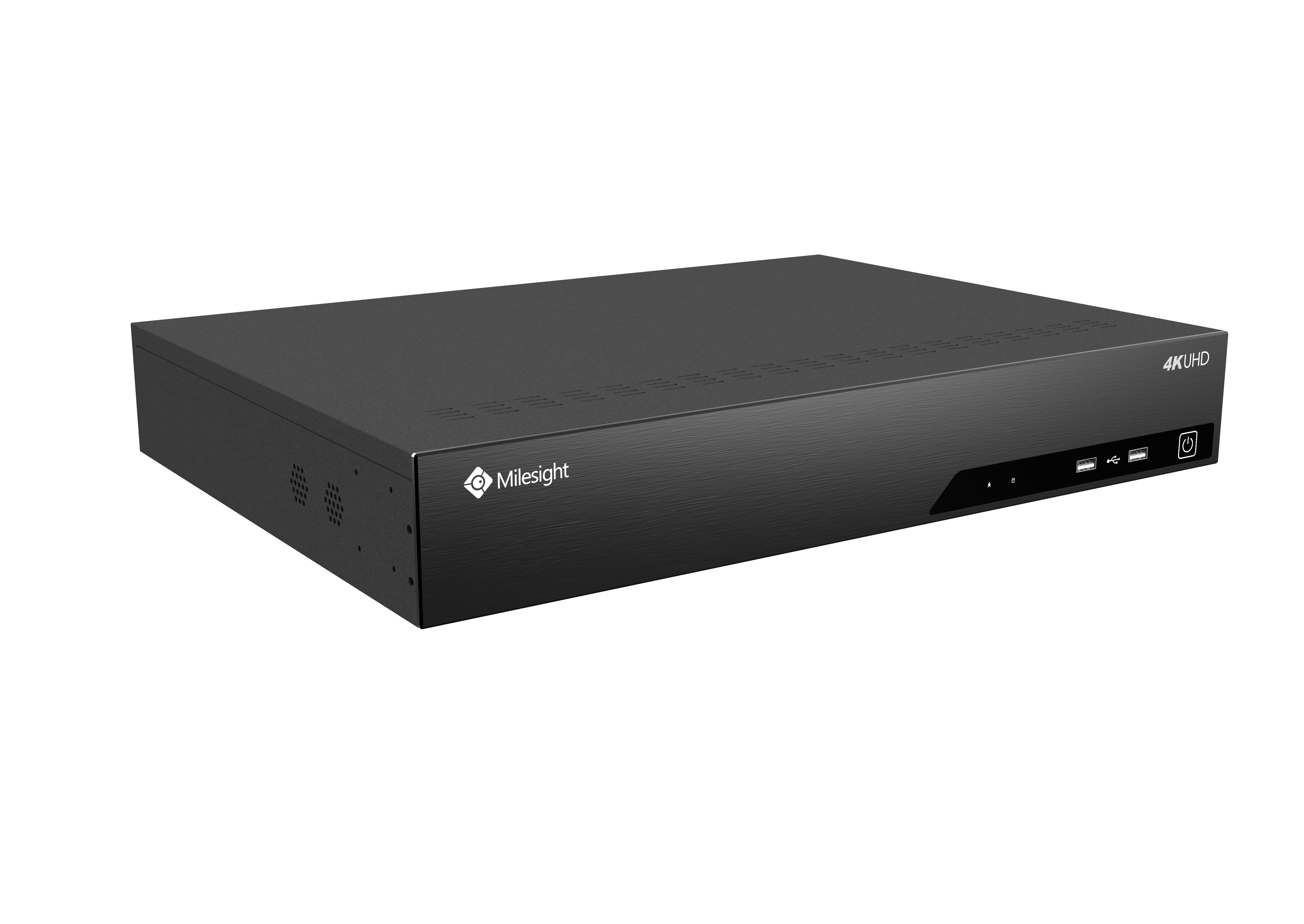

32 Channels Network Video Recorder
Designed with high compatibility and stability, perfectly manage ONVIF and third party IP cameras.
Designed with high compatibility and stability, perfectly manage ONVIF and third party IP cameras.
| Performance | |
| Video input channels The number of channels for video input that the device features. | 32 channels |
| Alarm input channels | 16 |
| Alarm output channels | 4 |
| Maximum resolution The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. | 3840 x 2160 pixels |
| Resolution at capture speed | 1280x720@30fps, 1920x1080@30fps |
| Audio formats supported The audio formats which this device or software can read/use e.g. MP3, MP4. | G.711 |
| Video formats supported The type of video formats that can be used by this device. | H.264, H.265 |
| PTZ control |
 |
| PTZ modes | Digital PTZ, Preset point, Preset sequence |
| Snapshot |
|
| Throughput data rate | 320 Mbit/s |
| Maximum frame rate This is the maximum frame rate, also known as frame frequency and frames per second (FPS). It is the frequency (rate) at which an imaging device produces unique consecutive images called frames. The term applies equally well to film and video cameras, computer graphics, and motion capture systems. Frame rate is most often expressed in frames per second (FPS) and is also expressed in progressive scan monitors as hertz (Hz). | 30 fps |
| Recording modes The different ways in which this device can record. | Event, Manual, Schedule |
| Storage | |
| Number of HDDs supported The total number of hard drives that can be used in/with this product. | 4 |
| Maximum storage capacity The maximum amount of data that can be stored in the device. | 40 TB |
| HDD interface The way that a hard disk drive (HDD) is connected to the rest of the computer through a 'bus' such as ATA or SCSI. | Serial ATA |
| HDD size The amount of data that the hard drive can store. | 3.5" |
| RAID support The device uses RAID, which is a storage technology that combines multiple disk drive components into a logical unit for the purposes of data redundancy and performance improvement. Data is distributed across the drives in one of several ways, referred to as RAID levels, depending on the specific level of redundancy and performance required. |
|
| RAID levels RAID is a storage technology that combines multiple disk drive components into a logical unit for the purposes of data redundancy and performance improvement. Data is distributed across the drives in one of several ways, referred to as RAID levels, depending on the specific level of redundancy and performance required. | 0, 1, 5, 10 |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. | 17 |
| Power over Ethernet (PoE) The device supports Power over Ethernet (PoE), which is one of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras. |
|
| Ethernet LAN data rates The different speed levels of the Ethernet LAN connection. | 10,100,1000 Mbit/s |
| HDMI output The device features an HDMI output. |
|
| VGA (D-Sub) output ports | 1 |
| USB 2.0 ports quantity Number of USB 2.0 ports (connecting interfaces) in the device. USB 2.0 was released in April 2000 (now called "Hi-Speed"), adding higher maximum signaling rate of 480 Mbit/s (effective throughput up to 35 MB/s or 280 Mbit/s), USB 2.0 ports are usually black. | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| Audio RCA inputs | 1 |
| Audio RCA outputs | 1 |
| RS-485 ports | 1 |
| RS-232 interface |
|
| Supported network protocols Network protocols tested as compatible with this product e.g. FTP,HTML, POP. | IPv4, HTTP, NTP, SMTP, PPPoE, DDNS |
| Features | |
| Rack mounting The type of mounting that can position devices in a shelving system (rack). |
|
| Rack capacity The spase that device fill in rack. | 1.5U |
| LED indicators |
|
| On/off switch The button which is pressed to switch the device on or off. |
|
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Power | |
| Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage. | 15 W |
| AC input voltage The voltage of the AC electricity that is inputted into the product. | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | -10 - 55 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 440 mm |
| Depth The distance from the front to the back of something. | 320 mm |
| Height The measurement of the product from head to foot or from base to top. | 66.8 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 5 kg |
| SKU | 719141 |
| MPN | MS-N7032-UPH |
| Brand | Milesight |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.milesight-iot.com/ |
