Mikrotik RB922UAGS-5HPacD, Motherboard, Router, Wi-Fi 5 (802.11ac), 866 Mbit/s, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11n, QCA9557

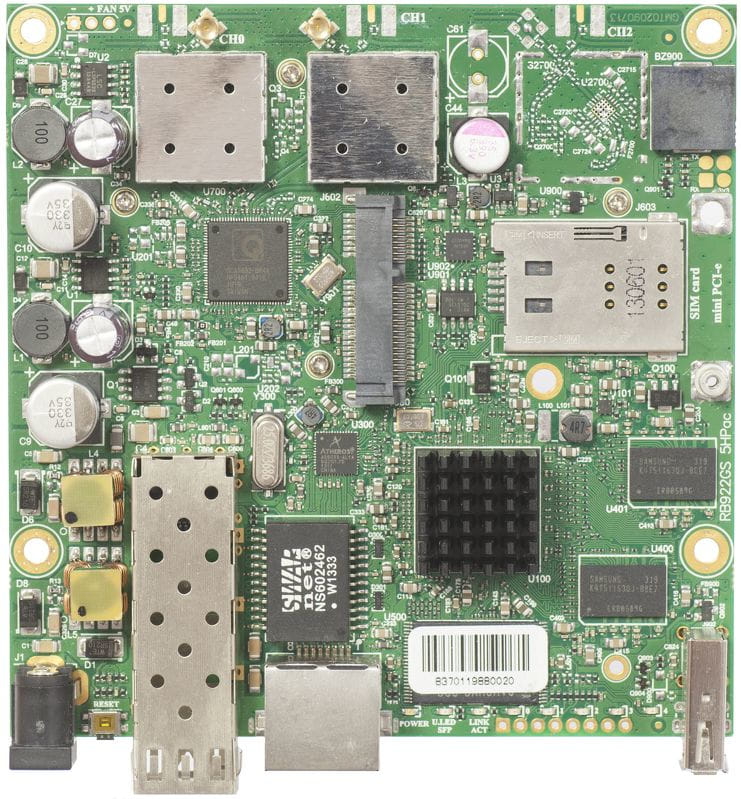

RouterBOARD RB922UAGS-5HPacD is a very versatile wireless router, perfect for assembling your own solution. It supports the new 802.11ac standard for high speed wireless (up to 866Mbit datarate and 20/40/80MHz channels). The device has ports and slots for many uses: 1x SFP cage, miniPCIe slot with SIM for 3G/4G modem or another wireless card, USB port, Gigabit Ethernet port and two MMCX connectors for the built in powerful 802.11ac 2x2 radio. Comes with RouterOS L4 (AP) license.
- RB922UAGS-5HPacD-US (USA) is factory locked for 5170-5250MHz and 5725-5835MHz frequencies. This lock can not be removed.
- RB922UAGS-5HPacD (International) supports 5150MHz-5875MHz range (Specific frequency range can be limited by country regulations).
- RB922UAGS-5HPacD-US (USA) is factory locked for 5170-5250MHz and 5725-5835MHz frequencies. This lock can not be removed.
- RB922UAGS-5HPacD (International) supports 5150MHz-5875MHz range (Specific frequency range can be limited by country regulations).
| Features | |
| Product type The sub-category of the product. | Motherboard |
| Device compatibility The other devices which this device can be used with. | Router |
| Voltage monitoring |
 |
| Temperature monitoring |
|
| Reset button |
|
| License level | 4 |
| Performance | |
| Top Wi-Fi standard Connection of this device is done via Wi-Fi in a high standard. | Wi-Fi 5 (802.11ac) |
| WLAN data transfer rate (max) | 866 Mbit/s |
| Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g. | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11n |
| Processor model The model number for the processor in a computer. | QCA9557 |
| Processor frequency The clock rate is the fundamental rate in cycles per second (measured in hertz) at which a computer performs its most basic operations such as adding two numbers. There are more factors, like internal memory size, that influence a computer's actual response time. | 720 MHz |
| Processor cores The number of central processing units ('cores') in a processor. Some processors have 1 core, others have 2 (e.g. Intel Core Duo) or more (e.g. the Intel Xeon E7-2850 has 10 cores). | 1 |
| Storage capacity The maximum storage capability of the product. | 128 MB |
| Storage media Used for the storage of data e.g. HDD (hard disk drive), SSD (solid-state drive). | Flash |
| Internal memory The amount of memory, usually measured in bytes (e.g. MB, GB), which is installed in the system's hardware. | 128 MB |
| Number of SIM cards | 1 |
| SIM card type | MiniSIM |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity The number of basic switching RJ-45 Ethernet ports (sockets). | 1 |
| Basic switching RJ-45 Ethernet ports type The type/category of basic switching RJ-45 Ethernet ports (sockets). | Gigabit Ethernet (10/100/1000) |
| Power over Ethernet (PoE) ports quantity | 1 |
| USB port type | USB Type-A |
| USB ports quantity | 1 |
| SIM card slot Whether the device features a SIM card slot. |
|
| Power | |
| Power connector | DC-in-jack |
| Power consumption (max) The maximum amount of power used by the device. | 17 W |
| DC input voltage | 8 - 30 V |
| Power over Ethernet (PoE) voltage range | 8 - 30 V |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 105 mm |
| Depth The distance from the front to the back of something. | 105 mm |
| SKU | 817958 |
| MPN | RB922UAGS-5HPacD |
| Brand | MikroTik |
| Product Condition | Brand New/Unused |
| Wired/Wireless | Wired |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://mikrotik.com/ |
