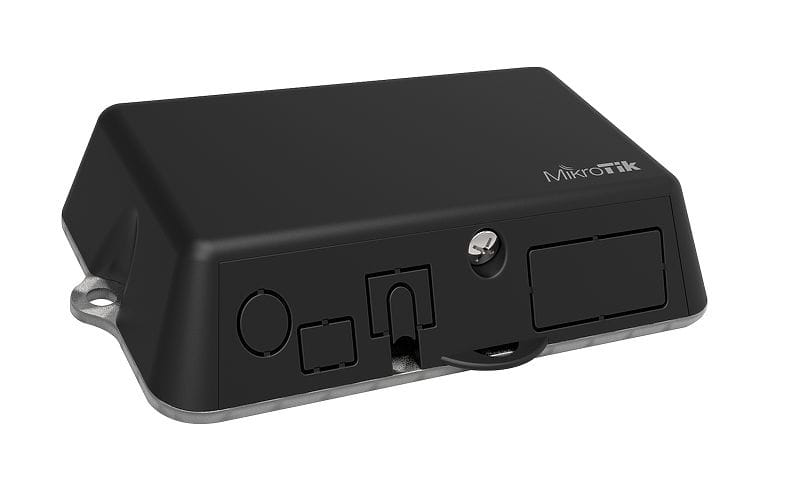

The LtAP mini is a small waterproof wireless access point with integrated LTE antennas (with two u.fl pigtails) and miniPCI-e slot, so you can use your own LTE modem of your choice.
The LtAP mini also has one 10/100 Ethernet LAN port for your wired devices. The RS232 serial port gives you console access for debugging. The unit has several powering options: 9-30 V PoE-in by Ethernet port, DC jack and microUSB.
LtAP mini has a special enclosure with with a wall mounting kit, two SIM slots to alternate between cellular providers, and integrated GPS support, making this a perfect device for use in moving vehicles like cars, buses or trains. Use the built in GPS module to track the location of your vehicle in real time, we have even provided a simple tracking application example in the RouterOS documentation, to help you start development of your platform. External GPS antenna is available for ordering separately (not included, product code GPSANT).
The LtAP mini also has one 10/100 Ethernet LAN port for your wired devices. The RS232 serial port gives you console access for debugging. The unit has several powering options: 9-30 V PoE-in by Ethernet port, DC jack and microUSB.
LtAP mini has a special enclosure with with a wall mounting kit, two SIM slots to alternate between cellular providers, and integrated GPS support, making this a perfect device for use in moving vehicles like cars, buses or trains. Use the built in GPS module to track the location of your vehicle in real time, we have even provided a simple tracking application example in the RouterOS documentation, to help you start development of your platform. External GPS antenna is available for ordering separately (not included, product code GPSANT).
Features | |
2.4 GHz |
![]() |
5 GHz |
![]() |
Maximum data transfer rate The maximum speed with which data can be transmitted from one device to another. | 54 Mbit/s |
Wi-Fi data rate (max) | 54 Mbit/s |
Ethernet LAN data rates The different speed levels of the Ethernet LAN connection. | 10,100 Mbit/s |
Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g. | IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3af, IEEE 802.3at |
Ports & interfaces | |
Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. | 1 |
USB connector type The type of USB connector/port that this product has. | Micro-USB |
WAN connection A wide area network (WAN) is a network that covers a broad area (i.e. any telecommunications network that links across metropolitan, regional, or national boundaries such as the Internet) using private or public network transports. Business and government entities utilize WANs to relay data among employees, clients, buyers, and suppliers from various geographical locations. | Mobile network (SIM) |
RS-232 interface |
![]() |
Power | |
AC input voltage The voltage of the AC electricity that is inputted into the product. | 8 - 30 V |
Power consumption (max) The maximum amount of power used by the device. | 4 W |
Design | |
Placement Where the product can be placed e.g. floor, wall. | Table |
Product colour The colour e.g. red, blue, green, black, white. | Black |
Internal The product is built in. |
![]() |
Antenna | |
Antenna gain level (max) Antenna gain is the measurement of an antenna's ability to amplify the incoming microwave signals in a particular direction, compared with the sensitivity of an isotropic antenna in any direction, or a dipole antenna in the equatorial direction. | 1.5 dBi |
Performance | |
Built-in processor Whether or not a processor is built into the device. |
![]() |
Flash memory | 16 MB |
Internal memory The amount of memory, usually measured in bytes (e.g. MB, GB), which is installed in the system's hardware. | 64 MB |
Operating system installed Type of operating system on a device e.g. IOS on Apple devices, Android for mobile devices. | RouterOS |
Weight & dimensions | |
Width The measurement or extent of something from side to side. | 139 mm |
Depth The distance from the front to the back of something. | 77 mm |
Height The measurement of the product from head to foot or from base to top. | 28.5 mm |
Operational conditions | |
Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | -40 - 70 °C |
Logistics data | |
Harmonized System (HS) code | 85176990 |
SKU | 818057 |
MPN | RB912R-2nD-LTm |
Brand | MikroTik |
