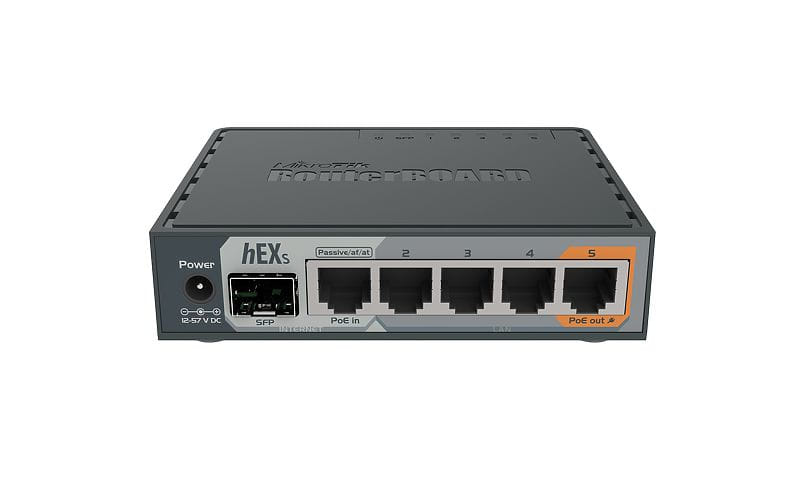

Mikrotik hEX S, Ethernet WAN, Gigabit Ethernet, Black
hEX S is a five port Gigabit Ethernet router for locations where wireless connectivity is not required. Compared to the hEX, the hEX S also features an SFP port and PoE output on the last port.
It is affordable, small and easy to use, but at the same time comes with a very powerful dual core 880 MHz CPU and 256 MB RAM, capable of all the advanced configurations that RouterOS supports. The device has a USB 2.0, PoE output for Ethernet port #5 and a 1.25Gbit/s SFP cage.
IPsec hardware encryption (470 Mbps) and The Dude server package is supported, microSD slot on it provides improved r/w speed for file storage and Dude.
It is affordable, small and easy to use, but at the same time comes with a very powerful dual core 880 MHz CPU and 256 MB RAM, capable of all the advanced configurations that RouterOS supports. The device has a USB 2.0, PoE output for Ethernet port #5 and a 1.25Gbit/s SFP cage.
IPsec hardware encryption (470 Mbps) and The Dude server package is supported, microSD slot on it provides improved r/w speed for file storage and Dude.
| WAN connection | |
| Ethernet WAN |
 |
| Network | |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable. |
|
| Cabling technology Type of cable technology performance. | 10/100/1000Base-T(X) |
| Ethernet LAN data rates The different speed levels of the Ethernet LAN connection. | 10,100,1000 Mbit/s |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. | 5 |
| Power over Ethernet (PoE) ports quantity | 1 |
| Installed SFP modules quantity An SFP ("small form-factor pluggable transceiver") is a transmitter/receiver which interfaces a network device motherboard (e.g. in a switch, router) to a fibre optic or copper network cable. The "SFP ports quantity" is the number of ports for SFP connections in a device. | 1 |
| USB ports quantity | 1 |
| DC-in jack The socket/plug where the DC electricity supply connects to the device. |
|
| Features | |
| Internal memory The amount of memory, usually measured in bytes (e.g. MB, GB), which is installed in the system's hardware. | 256 MB |
| Design | |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Antenna | |
| Antenna type Type of antenna, also known an aerial, e.g. external, internal. | Not supported |
| Power | |
| Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage. | 11 W |
| Power source type What the power source is. | DC |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 113 mm |
| Depth The distance from the front to the back of something. | 89 mm |
| Height The measurement of the product from head to foot or from base to top. | 28 mm |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
| SKU | 818006 |
| MPN | RB760iGS |
| Brand | MikroTik |
| Product Condition | Brand New/Unused |
| Wired/Wireless | Wired |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://mikrotik.com/ |
