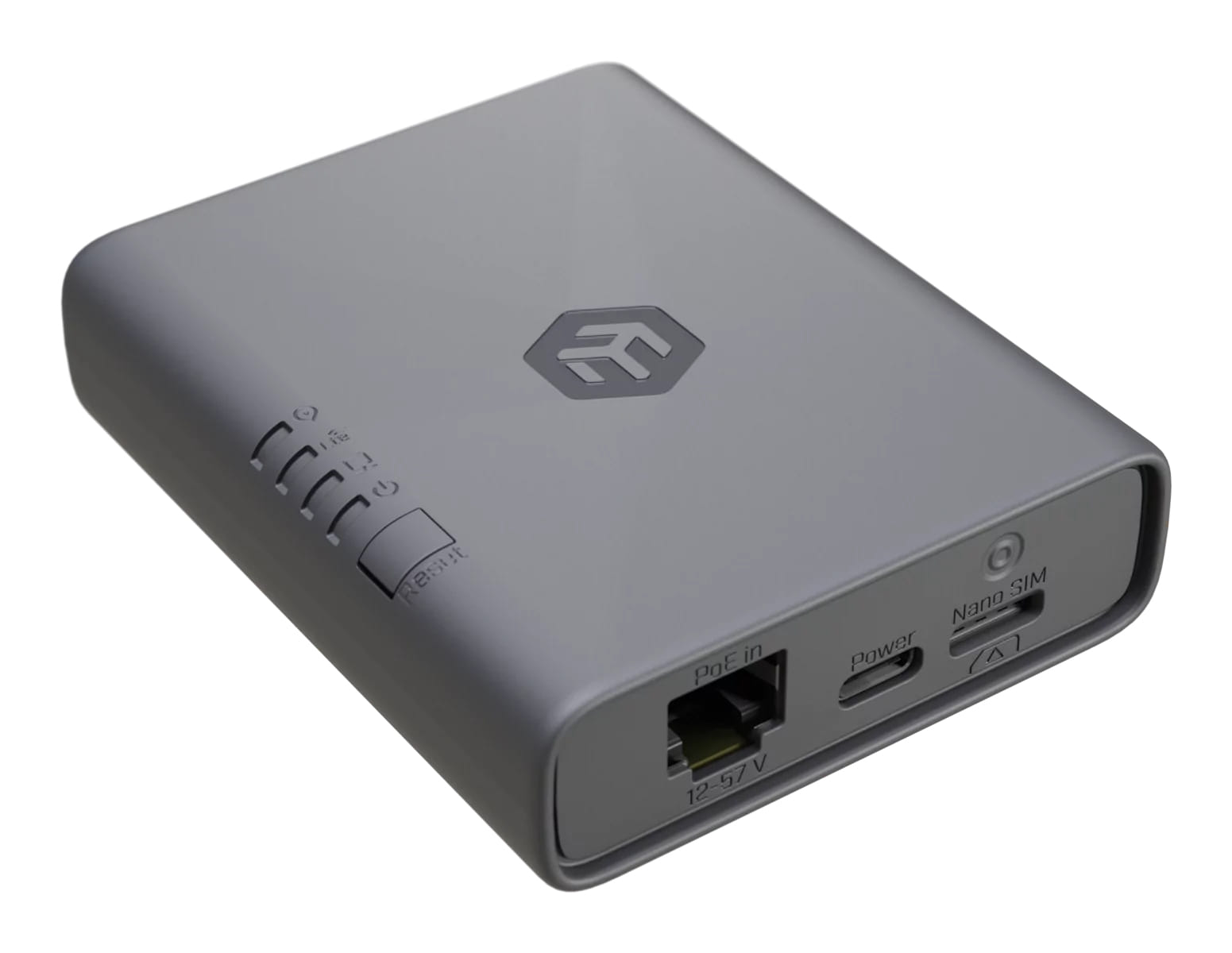

Mikrotik EC25-EU&KNE, Grey, DIN-rail, Internal, SMA, 100000 h, ARM
Industrial LTE/BLE/GNSS connectivity that fits anywhere. Originally designed for coffee and vending machines
| Design | |
| Product colour The colour e.g. red, blue, green, black, white. | Grey |
| Mounting type Type of mounting e.g. wall mounting. | DIN-rail |
| LED indicators |
 |
| Features | |
| Antenna type Type of antenna, also known an aerial, e.g. external, internal. | Internal |
| Antenna connector type The way in which the antenna is connected to the device e.g. coaxial. | SMA |
| GPS (satellite) Global Positioning System (GPS) is a space-based satellite navigation system that provides location and time information in all weather conditions, anywhere on or near the Earth where there is an unobstructed line of sight to four or more GPS satellites. The system provides critical capabilities to military, civil and commercial users around the world. It is maintained by the United States government and is freely accessible to anyone with a GPS receiver. |
|
| Short Message Service (SMS) |
|
| Mean time between failures (MTBF) Statistical model used to indicate product/mechanism reliability; expressed in hours and percentage of duty cycle. This number (in hours) does not indicate the mean time before failure for a single unit/mechanism. | 100000 h |
| Performance | |
| Built-in processor Whether or not a processor is built into the device. |
|
| Processor manufacturer The manufacturer that produced the processor. | ARM |
| Processor family A family of processors is a group of processors produced by one company over a short period of time e.g. Intel Pentium processors. | ARM Cortex |
| Processor model The model number for the processor in a computer. | Cortex-A7 |
| Processor frequency The clock rate is the fundamental rate in cycles per second (measured in hertz) at which a computer performs its most basic operations such as adding two numbers. There are more factors, like internal memory size, that influence a computer's actual response time. | 1200 MHz |
| Number of processors installed Number of processors in the product. | 1 |
| Internal memory The amount of memory, usually measured in bytes (e.g. MB, GB), which is installed in the system's hardware. | 256 MB |
| SSD capacity The Solid State Drive's data storage capacity. | 512 GB |
| Network | |
| Ethernet LAN data rates The different speed levels of the Ethernet LAN connection. | 10,100,1000 Mbit/s |
| Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g. | IEEE 802.3af, IEEE 802.3at |
| Bluetooth Bluetooth is a low-power radio technology developed to replace the cables and wires currently used to link or connect electronic devices such as personal computers, printers, and a wide variety of handheld devices including mobile phones. Because it uses radio-wave connectivity, a Bluetooth-enabled device has a constant, established connection to whatever browser it uses. This saves the user the trouble of logging on to check for emails or news updates, for example. |
|
| Bluetooth version The type of bluetooth technology in the product e.g. Bluetooth Smart (v4.0). | 5.1 |
| Bluetooth Low Energy (BLE) |
|
| 4G LTE category | 4 |
| Mobile network generation | 4G |
| Data network Telecommunications network that allows computers to exchange data. | 2G, 3G, 4G, LTE |
| 4G FDD-LTE bands supported | 800,900,1800,2100,2600 MHz |
| 4G TDD-LTE bands supported | 2600 MHz |
| Ports & interfaces | |
| SIM card slot Whether the device features a SIM card slot. |
|
| SIM card type | NanoSIM + eSIM |
| Number of simultaneous SIM cards | 1 |
| Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. | 1 |
| Management features | |
| Management platform | RouterOS v7 |
| Power | |
| Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage. | 7 W |
| Input voltage The voltage (V) which is required to power the product. | PoE 12-57, USB-C 5 |
| Power over Ethernet (PoE) The device supports Power over Ethernet (PoE), which is one of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras. |
|
| Packaging content | |
| AC adapter included |
|
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | -40 - 70 °C |
| Certificates | |
| Compliance certificates | CE, EAC, RoHS |
| SKU | 831559 |
| MPN | EC25-EU&KNe |
| Brand | MikroTik |
| Product Condition | Brand New/Unused |
| Wired/Wireless | Wired |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://mikrotik.com/ |
