Mikrotik QRT 5 ac, 5 GHz, 10,100,1000 Mbit/s

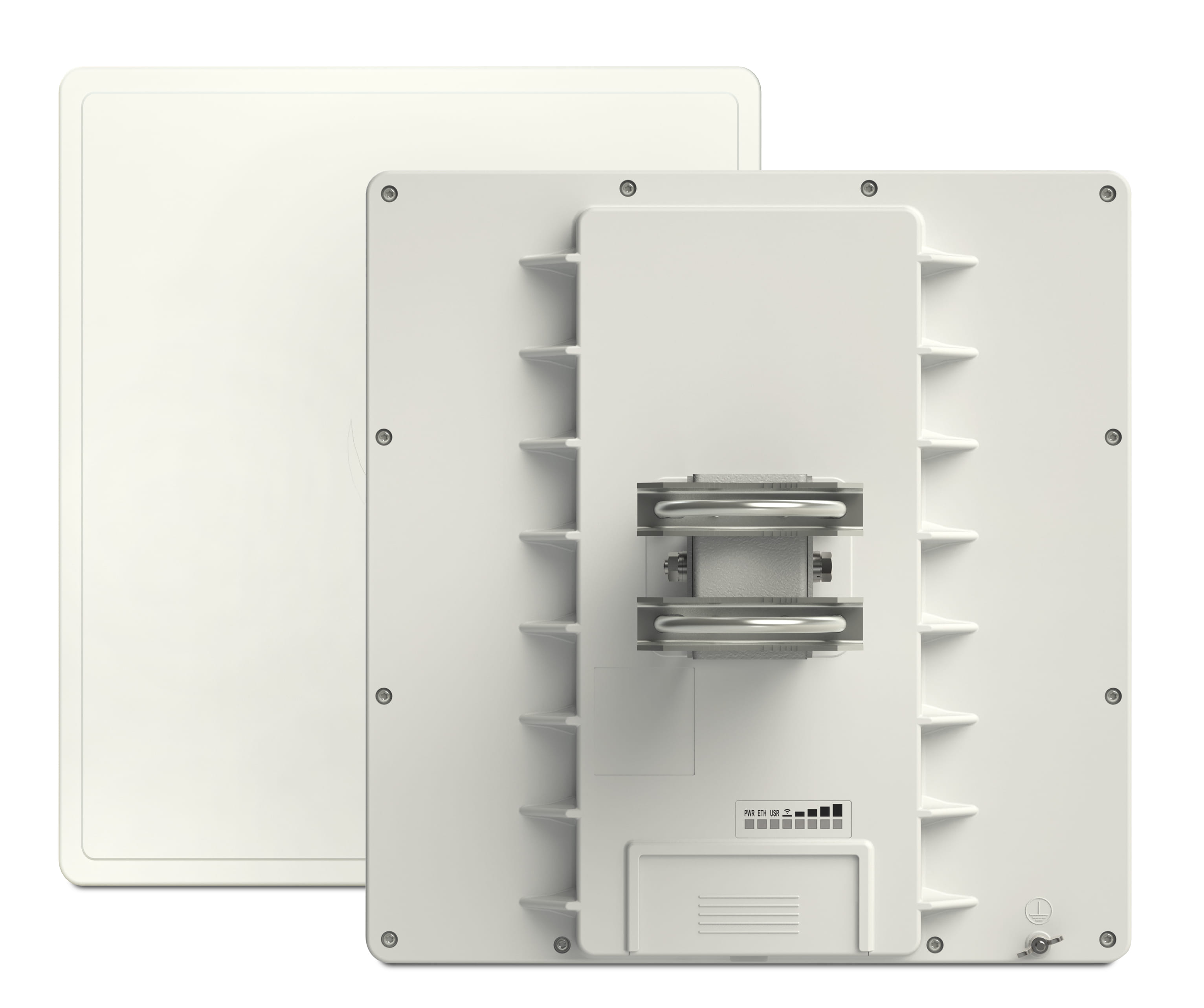

The QRT 5 ac is a rugged outdoor flat panel antenna, with a built in RouterBOARD. The device has a 24dBi antenna and a high power 5GHz wireless transmitter which now supports 802.11ac and is also backwards compatible with 802.11a/n.
Inside is the high power RB911G-5HPacD dual chain wireless device (see separate brochure), with high performance, high output power wireless transmitter. It has a Gigabit Ethernet port, to fully utilise the benefit of 802.11ac high speed wireless.
Easy to use and quick to deploy, QRT is ideal for longer point to point links at 802.11ac speeds.
Inside is the high power RB911G-5HPacD dual chain wireless device (see separate brochure), with high performance, high output power wireless transmitter. It has a Gigabit Ethernet port, to fully utilise the benefit of 802.11ac high speed wireless.
Easy to use and quick to deploy, QRT is ideal for longer point to point links at 802.11ac speeds.
| Features | |
| 5 GHz |
 |
| Ethernet LAN data rates The different speed levels of the Ethernet LAN connection. | 10,100,1000 Mbit/s |
| Frequency band A small section of the spectrum of radio communication frequencies, in which channels are usually used or set aside for the same purpose e.g.for a channel on FM radio; for mobile networks to communicate with mobile phones. | 4.9 - 5.875 GHz |
| Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g. | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11n |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. | 1 |
| WAN connection A wide area network (WAN) is a network that covers a broad area (i.e. any telecommunications network that links across metropolitan, regional, or national boundaries such as the Internet) using private or public network transports. Business and government entities utilize WANs to relay data among employees, clients, buyers, and suppliers from various geographical locations. | Wi-Fi, Ethernet (RJ-45) |
| DC-in jack The socket/plug where the DC electricity supply connects to the device. |
|
| Power | |
| Power over Ethernet (PoE) The device supports Power over Ethernet (PoE), which is one of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras. |
|
| Output voltage | 30 V |
| Power consumption (max) The maximum amount of power used by the device. | 11.5 W |
| Design | |
| Product colour The colour e.g. red, blue, green, black, white. | White |
| Antenna | |
| Antenna features | Integrated antenna |
| Antennas quantity | 1 |
| Antenna gain level (max) Antenna gain is the measurement of an antenna's ability to amplify the incoming microwave signals in a particular direction, compared with the sensitivity of an isotropic antenna in any direction, or a dipole antenna in the equatorial direction. | 24 dBi |
| Polarization | Dual polarization |
| Performance | |
| Internal memory The amount of memory, usually measured in bytes (e.g. MB, GB), which is installed in the system's hardware. | 128 MB |
| Compatible operating systems List of desktop operating systems tested as compatible with this product. | RouterOS |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 309 mm |
| Depth The distance from the front to the back of something. | 320 mm |
| Height The measurement of the product from head to foot or from base to top. | 50 mm |
| Other features | |
| RF-connector | MMCX |
| Horizontal beam width | 10.5° |
| Vertical beam width | 10.5° |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | -30 - 70 °C |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
| SKU | 818126 |
| MPN | RB911G-5HPacD-QRT |
| Brand | MikroTik |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://mikrotik.com/ |
