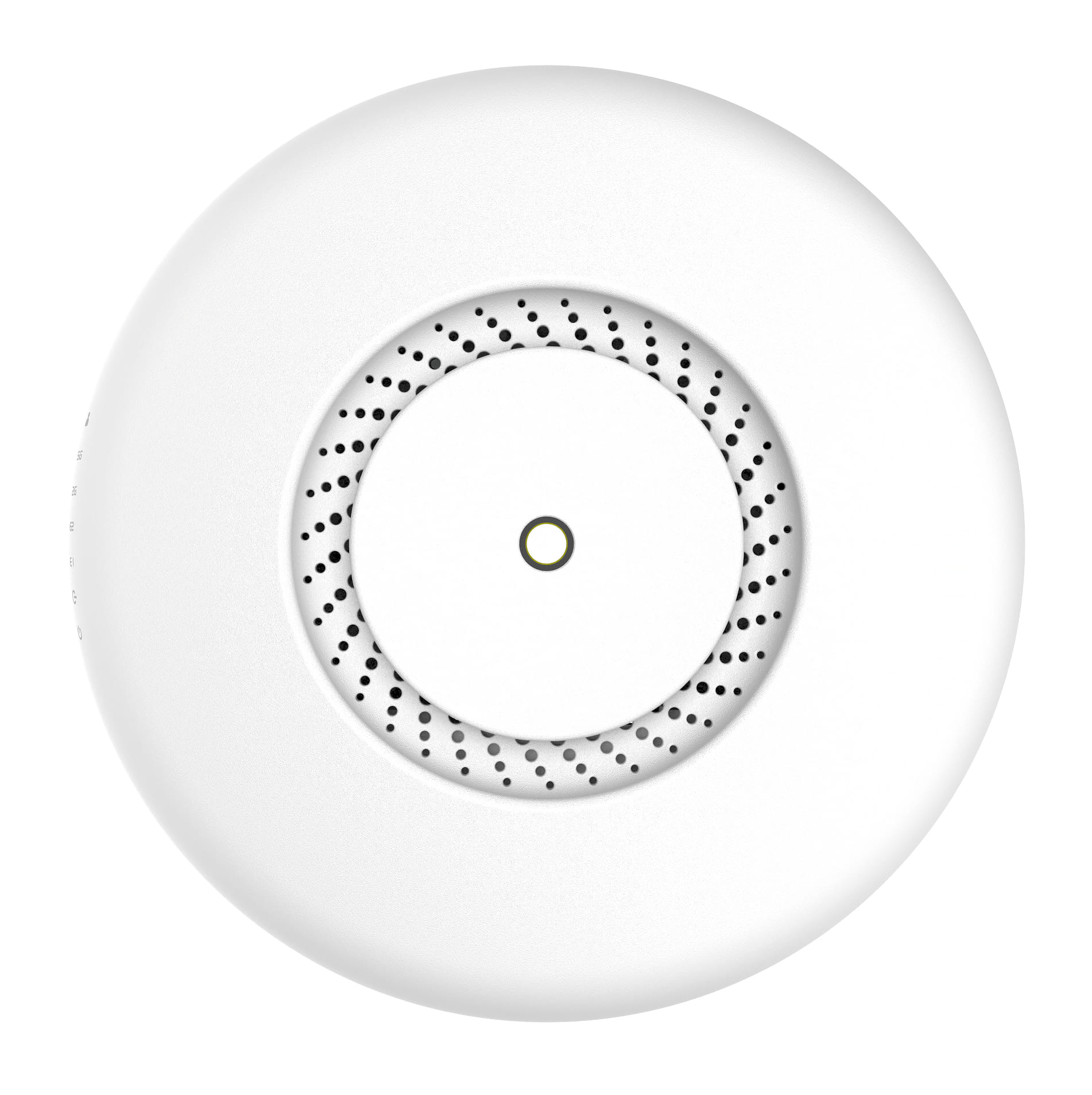

Mikrotik cAP ac, 2.4 GHz, 5 GHz, 867 Mbit/s, 10,100,1000 Mbit/s
The cAP ac is a very capable and powerful wireless access point that looks beautiful on both walls and ceilings. The concurrent dual band wireless radio supports dual chain 2 GHz 802.11b/g/n and 5 GHz in a/n/?? standards, and will provide coverage in 360 degrees around it.
Even though the radio supports repeater mode, the two Ethernet ports give you the ability to extend your network with cables, even if PoE power is required, since the cAP ac supports 802.3af/at PoE input on the first port, and passive PoE output on the second port. Device supports IPsec hardware acceleration too.
The cAP ac is a feature packed device with a sleek enclosure, that can become inconspicuous with
the push of a button - the customizable mode button in the device center will turn off all lights and
sounds at it's default configuration, but can be reconfigured to launch any RouterOS script.
Even though the radio supports repeater mode, the two Ethernet ports give you the ability to extend your network with cables, even if PoE power is required, since the cAP ac supports 802.3af/at PoE input on the first port, and passive PoE output on the second port. Device supports IPsec hardware acceleration too.
The cAP ac is a feature packed device with a sleek enclosure, that can become inconspicuous with
the push of a button - the customizable mode button in the device center will turn off all lights and
sounds at it's default configuration, but can be reconfigured to launch any RouterOS script.
| Features | |
| 2.4 GHz |
 |
| 5 GHz |
|
| Maximum data transfer rate The maximum speed with which data can be transmitted from one device to another. | 867 Mbit/s |
| Maximum data transfer rate (2.4 GHz) | 300 Mbit/s |
| Maximum data transfer rate (5 GHz) | 867 Mbit/s |
| Ethernet LAN data rates The different speed levels of the Ethernet LAN connection. | 10,100,1000 Mbit/s |
| Frequency band A small section of the spectrum of radio communication frequencies, in which channels are usually used or set aside for the same purpose e.g.for a channel on FM radio; for mobile networks to communicate with mobile phones. | 2.412 - 2.484, 5.15 - 5.875 GHz |
| Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g. | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3af, IEEE 802.3at |
| Receiver sensitivity | 2.4GHz: 1MBit/s: -100 @ 26dBm Tx 11MBit/s: -94 @ 26dBm Tx 6MBit/s: -96 @ 26dBm Tx 54MBit/s: -78 @ 23dBm Tx MCS0: -96 @ 26dBm Tx MCS7: -73 @ 22dBm Tx 5GHz: 6MBit/s: -96 @ 26dBm Tx 54MBit/s: -80 @ 21dBm Tx MCS0: -96 @ 26dBm Tx MCS7: -75 @ 20dBm Tx MCS9: -70 @ 18dBm Tx |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. | 2 |
| Power | |
| Power over Ethernet (PoE) The device supports Power over Ethernet (PoE), which is one of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras. |
|
| Power over Ethernet (PoE) type supported | Active PoE, Passive PoE |
| DC voltage range | 17 - 57 V |
| Output voltage | 57 V |
| Power consumption (max) The maximum amount of power used by the device. | 13 W |
| Design | |
| Placement Where the product can be placed e.g. floor, wall. | Ceiling, Wall |
| Product colour The colour e.g. red, blue, green, black, white. | White |
| LED indicators |
|
| Internal The product is built in. |
 |
| Antenna | |
| Antenna type Type of antenna, also known an aerial, e.g. external, internal. | Internal |
| Antenna features | Integrated antenna |
| Antennas quantity | 4 |
| Antenna gain level (max) Antenna gain is the measurement of an antenna's ability to amplify the incoming microwave signals in a particular direction, compared with the sensitivity of an isotropic antenna in any direction, or a dipole antenna in the equatorial direction. | 2.5 dBi |
| Performance | |
| Built-in processor Whether or not a processor is built into the device. |
|
| Processor model The model number for the processor in a computer. | IPQ4018 |
| Processor frequency The clock rate is the fundamental rate in cycles per second (measured in hertz) at which a computer performs its most basic operations such as adding two numbers. There are more factors, like internal memory size, that influence a computer's actual response time. | 716 MHz |
| Flash memory | 16 MB |
| Internal memory The amount of memory, usually measured in bytes (e.g. MB, GB), which is installed in the system's hardware. | 128 MB |
| Operating system installed Type of operating system on a device e.g. IOS on Apple devices, Android for mobile devices. | RouterOS |
| Certificates | |
| Certification | CE, FCC, IC, EAC, ROHS |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 136 mm |
| Depth The distance from the front to the back of something. | 30 mm |
| Height The measurement of the product from head to foot or from base to top. | 136 mm |
| Packaging content | |
| AC adapter included |
|
| PoE adapter included |
|
| Mounting kit |
|
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | -40 - 50 °C |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
| SKU | 818084 |
| MPN | RBcAPGi-5acD2nD |
| Brand | MikroTik |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://mikrotik.com/ |
