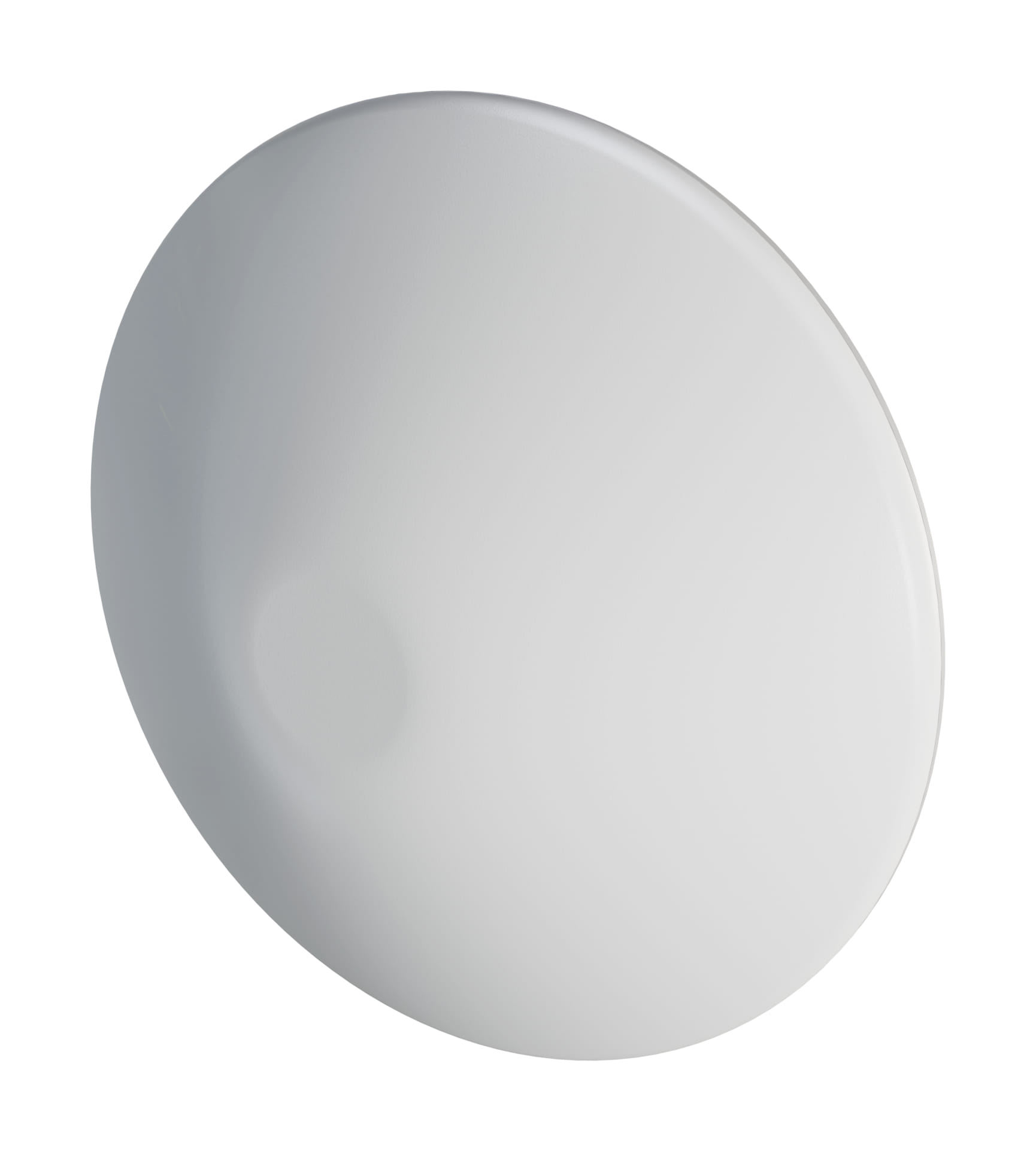

Mikrotik ATLGM&EG18-EA, Outdoor cellular signal booster, 3G, LTE, 88F3720, 800 MHz, 256 MB, Flash
The world keeps changing, but one thing remains certain: you've got to stay connected. Immediate access to information is vital. That's why we've developed the ATL: an advanced technology level directional LTE solution for those who want to squeeze the most out of LTE base stations. ATL features a phenomenal Category 18 LTE modem and a Gigabit Ethernet port with PoE-in. Combined with the modern ARM CPU, this means speeds up to 1 Gbps, no bottlenecks
One of the key features is the 4x4 MIMO or multiple-input, multiple-output support. More antennas to work with
One of the key features is the 4x4 MIMO or multiple-input, multiple-output support. More antennas to work with
| Features | |
| Type Characteristics of the device. | Outdoor cellular signal booster |
| Data network Telecommunications network that allows computers to exchange data. | 3G, LTE |
| Processor model The model number for the processor in a computer. | 88F3720 |
| Processor cores The number of central processing units ('cores') in a processor. Some processors have 1 core, others have 2 (e.g. Intel Core Duo) or more (e.g. the Intel Xeon E7-2850 has 10 cores). | 2 |
| Processor frequency The clock rate is the fundamental rate in cycles per second (measured in hertz) at which a computer performs its most basic operations such as adding two numbers. There are more factors, like internal memory size, that influence a computer's actual response time. | 800 MHz |
| Internal memory The amount of memory, usually measured in bytes (e.g. MB, GB), which is installed in the system's hardware. | 256 MB |
| Storage media Used for the storage of data e.g. HDD (hard disk drive), SSD (solid-state drive). | Flash |
| Storage capacity The maximum storage capability of the product. | 16 MB |
| 3G bands supported | 850,900,1800,2100 MHz |
| 4G FDD-LTE bands supported | 700,800,850,900,1800,2100,2600 MHz |
| 4G TDD-LTE bands supported | 2500,2300,2600 MHz |
| SIM card support |
 |
| SIM card type | MicroSIM |
| Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. | 1 |
| Product colour The colour e.g. red, blue, green, black, white. | White |
| International Protection (IP) code The IP code classifies and rates the degree of protection provided against the intrusion (including body parts such as hands and fingers), dust, accidental contact, and water by mechanical casings and electrical enclosures. It is published by the International Electrotechnical Commission (IEC). The digits (characteristic numerals) indicate conformity with the conditions summarized in the tables below. Where there is no protection rating with regard to one of the criteria, the digit is replaced with the letter X. an electrical socket rated IP22 is protected against insertion of fingers and will not be damaged or become unsafe during a specified test in which it is exposed to vertically or nearly vertically dripping water. Another example is the Sony Xperia Z Ultra, one of the first cellular phones to be IP-rated; it is rated at IP58 and marketed as "dust resistant" and can be "immersed in 1.5 meter of freshwater for up to 30 minutes". | IP54 |
| Power | |
| Power source type What the power source is. | PoE |
| Input voltage The voltage (V) which is required to power the product. | 12-57 V |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | -40 - 70 °C |
| SKU | 817884 |
| MPN | ATLGM&EG18-EA |
| Brand | MikroTik |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://mikrotik.com/ |
