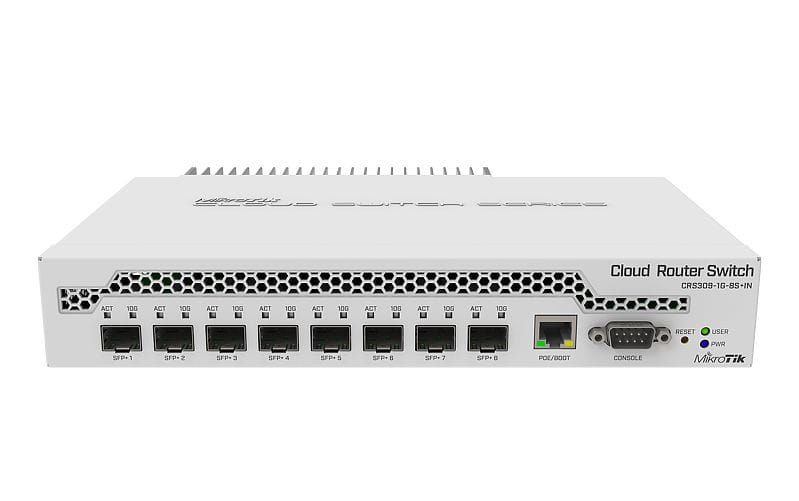

Mikrotik CRS309-1G-8S+, Managed, Gigabit Ethernet (10/100/1000), Power over Ethernet (PoE), Rack mounting
Desktop switch with one Gigabit Ethernet port and eight SFP+ 10Gbps ports
The CRS309-1G-8S+ is a very compact, yet powerful networking switch. It has eight SFP+ slots, supporting up to 10 Gbit module in each, which results in a total switching capacity of 162 Gbps and total non-blocking throughput of 81 Gbps.
The device also has dual-core 800 MHz CPU, 512 MB RAM, a management Ethernet port with PoE power input, RS232 serial port, a grounding terminal and is capable of dual boot (choose which operating system you prefer, RouterOS, or SwOS).
The CRS309-1G-8S+ is a very compact, yet powerful networking switch. It has eight SFP+ slots, supporting up to 10 Gbit module in each, which results in a total switching capacity of 162 Gbps and total non-blocking throughput of 81 Gbps.
The device also has dual-core 800 MHz CPU, 512 MB RAM, a management Ethernet port with PoE power input, RS232 serial port, a grounding terminal and is capable of dual boot (choose which operating system you prefer, RouterOS, or SwOS).
| Management features | |
| Switch type What switch device has, managed or unmanaged. | Managed |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity The number of basic switching RJ-45 Ethernet ports (sockets). | 1 |
| Basic switching RJ-45 Ethernet ports type The type/category of basic switching RJ-45 Ethernet ports (sockets). | Gigabit Ethernet (10/100/1000) |
| SFP+ module slots quantity | 8 |
| Console port | RS-232 |
| Power connector | DC-in jack |
| Network | |
| Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g. | IEEE 802.3af, IEEE 802.3at |
| 10G support The product can use Oracle 10G, which is a database management system introduced in 2003. |
 |
| Data transmission | |
| Switching capacity The data transfer capacity of the switch per second. | 162 Gbit/s |
| Design | |
| Rack mounting The type of mounting that can position devices in a shelving system (rack). |
|
| Product colour The colour e.g. red, blue, green, black, white. | White |
| Performance | |
| Built-in processor Whether or not a processor is built into the device. |
|
| Processor frequency The clock rate is the fundamental rate in cycles per second (measured in hertz) at which a computer performs its most basic operations such as adding two numbers. There are more factors, like internal memory size, that influence a computer's actual response time. | 800 MHz |
| Memory type Type of memory in the device e.g. DDR3, SRAM (Static RAM). | RAM |
| Internal memory The amount of memory, usually measured in bytes (e.g. MB, GB), which is installed in the system's hardware. | 512 MB |
| Flash memory | 16 MB |
| Power | |
| DC input voltage | 12 - 57 V |
| Output current | 1.2 A |
| Power consumption (max) The maximum amount of power used by the device. | 23 W |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) The device supports Power over Ethernet (PoE), which is one of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras. |
|
| Power over Ethernet (PoE) voltage range | 18 - 57 V |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | -40 - 70 °C |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 141 mm |
| Depth The distance from the front to the back of something. | 115 mm |
| Height The measurement of the product from head to foot or from base to top. | 28 mm |
| Packaging data | |
| AC adapter included |
|
| Mounting brackets included |
|
| Screws included |
|
| SKU | 817902 |
| MPN | CRS309-1G-8S+IN |
| Brand | MikroTik |
| Product Condition | Brand New/Unused |
| Wired/Wireless | Wired |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://mikrotik.com/ |
