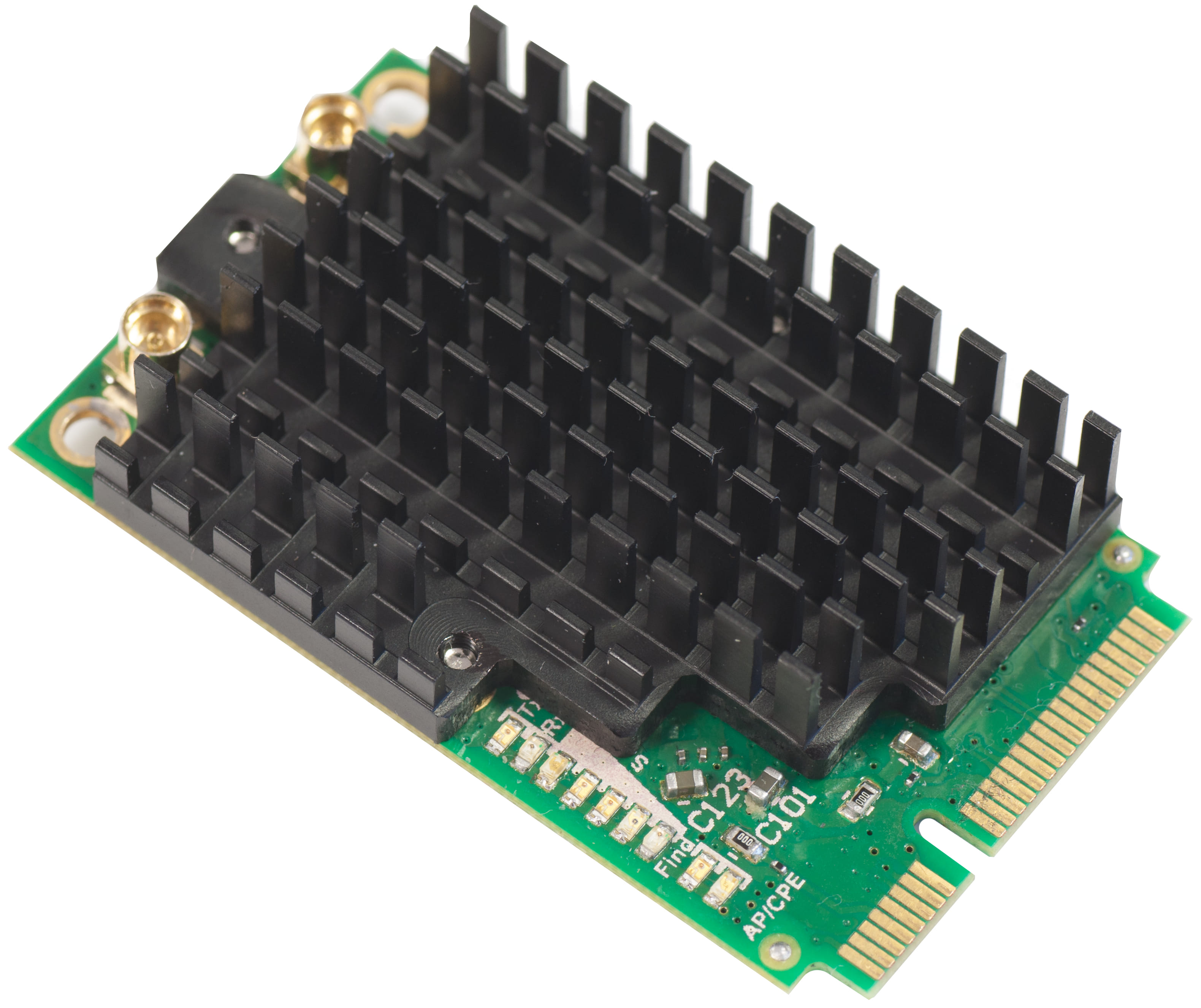

Mikrotik R11E-2HPND, Internal, Wireless, Mini PCI Express, RF Wireless, Wi-Fi 4 (802.11n), Green, Black
R11e-2HPnD is our new 802.11b/g/n Dual Chain high power 1000mW miniPCI-e card, operating in full 2192-2732 MHz frequency. Ideally suited for the new RB912 series, RB800 or our new miniPCIe adapters - RB14e/RB14eU
| Ports & interfaces | |
| Connectivity technology The technology that enables connectivity of the device, e.g. wired or wireless. | Wireless |
| Host interface Interface that enables a host controller to communicate with a driver. | Mini PCI Express |
| Interface Interface ports to connect pieces of equipment. USB (Universal Serial Bus) has become the most popular wired interface to connect peripherals. USB 2.0 supports speeds up to 480 Mbit/s (USB 1: 12 Mbit/s). The interface FireWire is also known as the IEEE 1394 standard. Enhanced IDE (EIDE)is sometimes referred to as Fast ATA, Fast IDE or ATA-2. | RF Wireless |
| Network | |
| Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g. | IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Wi-Fi Popular technology that allows an electronic device to exchange data or connect to the internet wirelessly using radio waves. |
 |
| Frequency range | 2.312 - 2.732 GHz |
| Top Wi-Fi standard Connection of this device is done via Wi-Fi in a high standard. | Wi-Fi 4 (802.11n) |
| Wi-Fi standards The type of wireless local area network (LAN). It can be ad-hoc, where units in a network communicate peer-to-peer, or Infrastructure, where units communicate with each other via an access point A LAN interconnects computers in a small area e.g. home, school or office. | 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| Design | |
| Product colour The colour e.g. red, blue, green, black, white. | Green, Black |
| Internal The product is built in. |
|
| Chipset Set of electronic components in an integrated circuit that manages the data flow between the processor, memory and peripherals. It is usually found in the motherboard of a computer. Chipsets are usually designed to work with a specific family of microprocessors. Because it controls communications between the processor and external devices, the chipset plays a crucial role in determining system performance. | AR9580 |
| LED indicators |
|
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | -30 - 65 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -5 - 65 °C |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 51 mm |
| Depth The distance from the front to the back of something. | 30 mm |
| Height The measurement of the product from head to foot or from base to top. | 13 mm |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
| Other features | |
| Connector(s) | 2 x MMCX |
| SKU | 818101 |
| MPN | R11e-2HPnD |
| Brand | MikroTik |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
