Mikrotik R11E-5HACT, Internal, Wired, Mini PCI Express, WLAN, 54 Mbit/s
The new AC standard is here, with up to 1.3Gbps datarate and 256-QAM modulation, and 80MHz channels. 802.11ac opens up new possibilities and speeds never possible before.

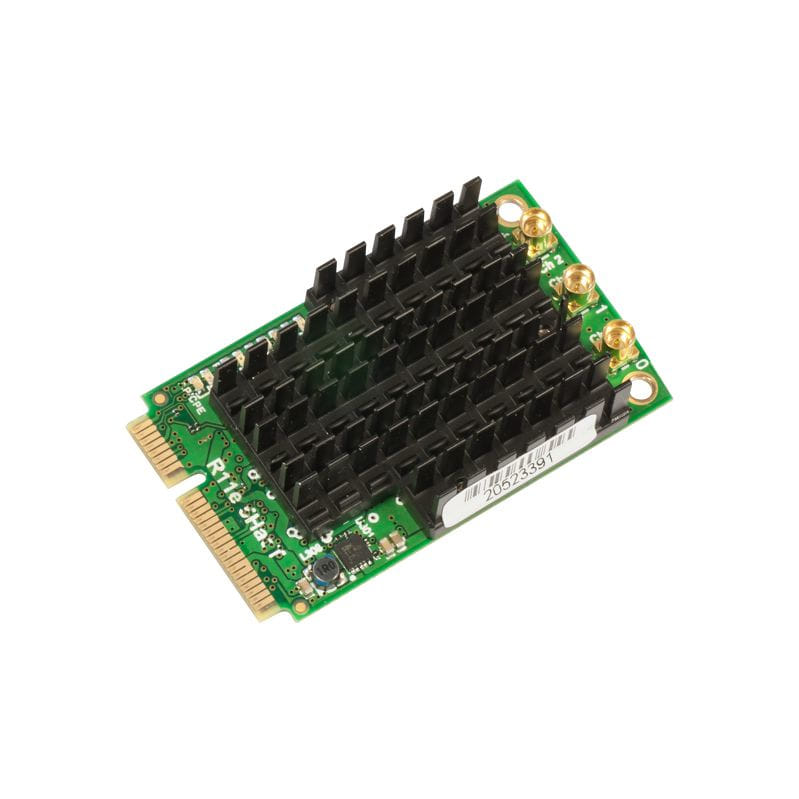

R11e-5HacT is our first MIMO 3x3 triple chain 802.11ac card in miniPCIe format, perfect for any RouterBOARD with miniPCIe slot, such as RB953, RB912, RB800, BaseBox etc.
The card features built-in LED indicators for wireless mode, connection status (connected, searching, disabled), TX and RX activity and wireless signal strength - just looking at the card will help with installation and alignment.
R11e-5HacT is our first MIMO 3x3 triple chain 802.11ac card in miniPCIe format, perfect for any RouterBOARD with miniPCIe slot, such as RB953, RB912, RB800, BaseBox etc.
The card features built-in LED indicators for wireless mode, connection status (connected, searching, disabled), TX and RX activity and wireless signal strength - just looking at the card will help with installation and alignment.
| Ports & interfaces | |
| Connectivity technology The technology that enables connectivity of the device, e.g. wired or wireless. | Wired |
| Host interface Interface that enables a host controller to communicate with a driver. | Mini PCI Express |
| Interface Interface ports to connect pieces of equipment. USB (Universal Serial Bus) has become the most popular wired interface to connect peripherals. USB 2.0 supports speeds up to 480 Mbit/s (USB 1: 12 Mbit/s). The interface FireWire is also known as the IEEE 1394 standard. Enhanced IDE (EIDE)is sometimes referred to as Fast ATA, Fast IDE or ATA-2. | WLAN |
| Network | |
| Maximum data transfer rate The maximum speed with which data can be transmitted from one device to another. | 54 Mbit/s |
| Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g. | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11n |
| Bandwidth | 1.3 Gbit/s |
| Design | |
| Internal The product is built in. |
 |
| Antenna connector type The way in which the antenna is connected to the device e.g. coaxial. | MMCX |
| Chipset Set of electronic components in an integrated circuit that manages the data flow between the processor, memory and peripherals. It is usually found in the motherboard of a computer. Chipsets are usually designed to work with a specific family of microprocessors. Because it controls communications between the processor and external devices, the chipset plays a crucial role in determining system performance. | QCA9880 |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | -40 - 70 °C |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
| SKU | 818123 |
| MPN | R11e-5HacT |
| Brand | MikroTik |
| Product Condition | Brand New/Unused |
| Product Use | General |
