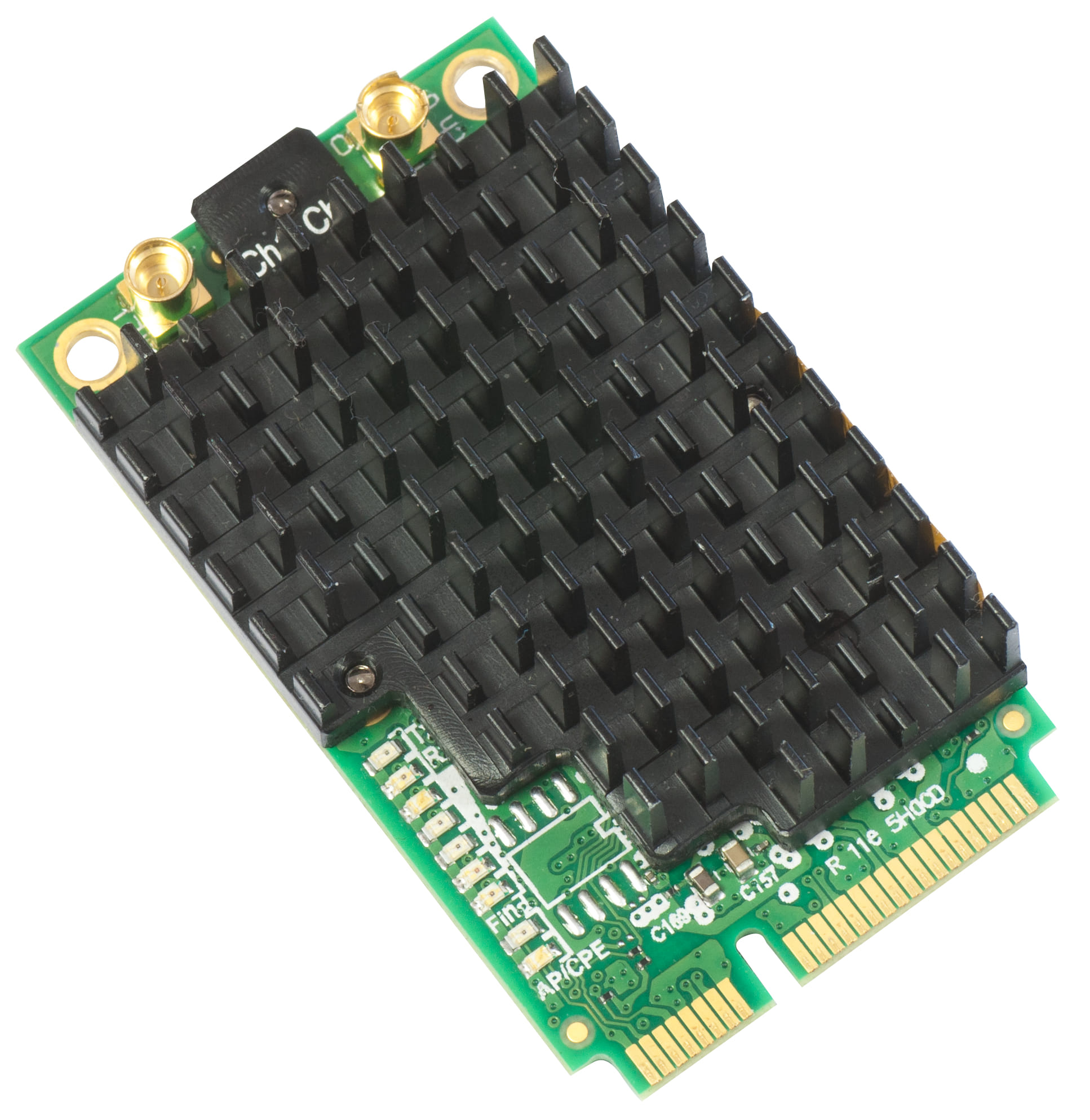

Mikrotik R11E-5HACD, Internal, Wireless, Mini PCI Express, RF Wireless, Wi-Fi 5 (802.11ac)
R11e-5HacD is our new 802.11ac card in miniPCI-express format, perfect for any RouterBOARD with miniPCIe slot, such as RB953, RB912, RB922, RB800 or x86 devices with RouterOS.
The card features built-in LED indicators for wireless mode, connection status (connected, searching, disabled), TX and RX activity and wireless signal strength - just looking at the card will help with installation and alignment.
The card features built-in LED indicators for wireless mode, connection status (connected, searching, disabled), TX and RX activity and wireless signal strength - just looking at the card will help with installation and alignment.
| Ports & interfaces | |
| Connectivity technology The technology that enables connectivity of the device, e.g. wired or wireless. | Wireless |
| Host interface Interface that enables a host controller to communicate with a driver. | Mini PCI Express |
| Interface Interface ports to connect pieces of equipment. USB (Universal Serial Bus) has become the most popular wired interface to connect peripherals. USB 2.0 supports speeds up to 480 Mbit/s (USB 1: 12 Mbit/s). The interface FireWire is also known as the IEEE 1394 standard. Enhanced IDE (EIDE)is sometimes referred to as Fast ATA, Fast IDE or ATA-2. | RF Wireless |
| Network | |
| Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g. | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11n |
| Wi-Fi Popular technology that allows an electronic device to exchange data or connect to the internet wirelessly using radio waves. |
 |
| Frequency range | 4.92 - 6.1 GHz |
| Top Wi-Fi standard Connection of this device is done via Wi-Fi in a high standard. | Wi-Fi 5 (802.11ac) |
| Wi-Fi standards The type of wireless local area network (LAN). It can be ad-hoc, where units in a network communicate peer-to-peer, or Infrastructure, where units communicate with each other via an access point A LAN interconnects computers in a small area e.g. home, school or office. | 802.11a, Wi-Fi 5 (802.11ac), Wi-Fi 4 (802.11n) |
| Design | |
| Internal The product is built in. |
|
| Chipset Set of electronic components in an integrated circuit that manages the data flow between the processor, memory and peripherals. It is usually found in the motherboard of a computer. Chipsets are usually designed to work with a specific family of microprocessors. Because it controls communications between the processor and external devices, the chipset plays a crucial role in determining system performance. | QCA9882 |
| LED indicators |
|
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | -30 - 65 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -5 - 65 °C |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 50 mm |
| Depth The distance from the front to the back of something. | 30 mm |
| Height The measurement of the product from head to foot or from base to top. | 13 mm |
| Packaging data | |
| Quantity The number of products there are. | 1 |
| Other features | |
| Connector(s) | 2x MMCX |
| SKU | 818102 |
| MPN | R11e-5HacD |
| Brand | MikroTik |
| Product Condition | Brand New/Unused |
| Product Use | General |
