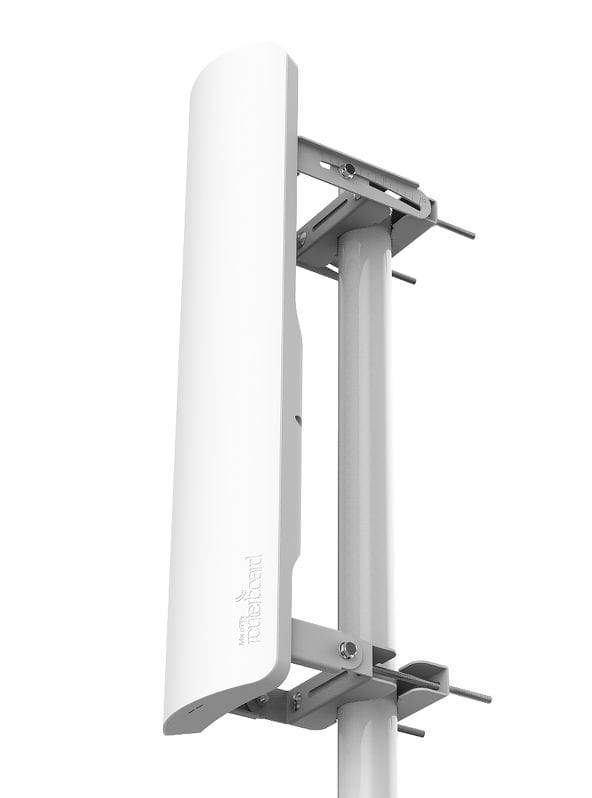

Mikrotik mANTBox 19s, 19 dBi, Sector antenna, Dual polarization, Pole, 13 W, 8 - 30 V
The mANTBox is based on our new mANT sector antennas, but also has a wireless router built right in. Powered by the RB921 device, the mANTBox comes ready to use with everything included. The device uses a high speed 720MHz CPU and has a built in 802.11 ac/a/n wireless device with up to 31dBm output power.
mANTBox 19s comes with 19dBi 120 degree sector antenna.
We have two versions available - RB921GS-5HPacD-19S (International) and RB921GS-5HPacD-19S-US (USA). RB921GS-5HPacD-19S-US (USA) is factory locked for 5.17 - 5.25 GHz and 5.725 - 5.835 GHz frequencies. This lock can not be removed. RB921GS-5HPacD-19S (International) supports 5.17 - 5.835 GHz range.
mANTBox 19s comes with 19dBi 120 degree sector antenna.
We have two versions available - RB921GS-5HPacD-19S (International) and RB921GS-5HPacD-19S-US (USA). RB921GS-5HPacD-19S-US (USA) is factory locked for 5.17 - 5.25 GHz and 5.725 - 5.835 GHz frequencies. This lock can not be removed. RB921GS-5HPacD-19S (International) supports 5.17 - 5.835 GHz range.
| Performance | |
| Antenna gain level (max) Antenna gain is the measurement of an antenna's ability to amplify the incoming microwave signals in a particular direction, compared with the sensitivity of an isotropic antenna in any direction, or a dipole antenna in the equatorial direction. | 19 dBi |
| Features | |
| Antenna type Type of antenna, also known an aerial, e.g. external, internal. | Sector antenna |
| Polarization | Dual polarization |
| Mounting What size the mounting head of the product is, to couple it with a camera. | Pole |
| Power | |
| Power consumption (max) The maximum amount of power used by the device. | 13 W |
| Input voltage The voltage (V) which is required to power the product. | 8 - 30 V |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | -30 - 70 °C |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 152 mm |
| Depth The distance from the front to the back of something. | 78 mm |
| Height The measurement of the product from head to foot or from base to top. | 598 mm |
| Logistics data | |
| Harmonized System (HS) code | 85177100 |
| SKU | 818060 |
| MPN | RB921GS-5HPacD-19S |
| Brand | MikroTik |
| Product Condition | Brand New/Unused |
| Product Use | General |
