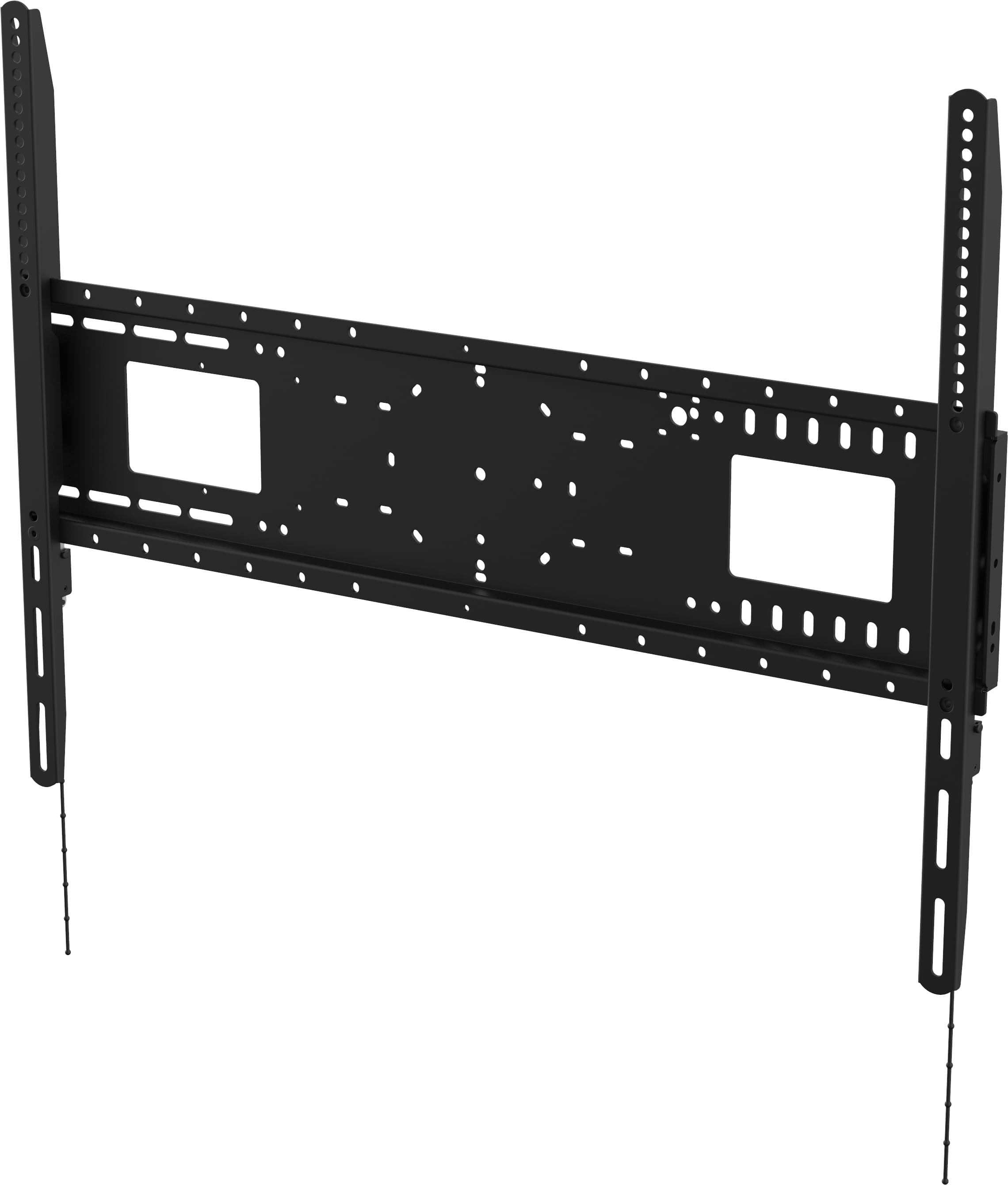

Vision VFM-W8X6, 130 kg, 119.4 cm (47"), 2.29 m (90"), 300 x 300 mm, 800 x 600 mm
Vision s Vision Flat-panel Mount " Wall range is designed by Vision s engineering team for professional AV installers. This mount is no-compromise: very strong, fast to install, highly adjustable, everything included. The VFM-W8X6 fits any flat-panel LCD or LED screen which has rear mounting holes up to 800 wide x 600 mm tall apart.
Heavy Duty
Interactive flat panels are large and very heavy. Vision s VFM-W8X6 uses heavy gauge sheet metal to take the weight up to SWL 130 kg / 287 lb safely.
For 47-90" Displays
Fits most displays from 47-90 3. Note: curved screens are not supported by this mount.
Designed for Professionals
A proven design allows fast fixing, and slotted holes on the wall part allowing levelling adjustment after fixing.
Side by Side
Two horizontal sections can be fixed together side by side for dual-display video conference or huddle room applications. Or extend the horizontal to bridge wide load bearing points in a wall.
Optional Rotation
A rotary bearing assembly can be added, allowing the display to be turned from portrait to landscape. For this reason the vertical arms can be fixed to the horizontal rail from behind so the display doesn t slide down the rail when the display is turned to portrait.
Video Conference Shelf
An optional shelf fixes in the centre above or below the display. Any camera including the Logitech Rally can be fixed to the shelf. It is also designed to accommodate Yamaha s VVC-1000 " which fixes securely in place, and Barco s Clickshare base stations. With VESA 100 x 100 mm holes on the vertical section, product s like Heckler s Zoom Room iPad enclosure can be fixed.
Everything Included
Vision includes everything you need including a load of M5, 6, and 8 bolts in varying lengths to fix the vertical arms to the rear of the display.
Meets Regulations
The thin design holds the display just 36 mm / 1.4 3 off the wall.This looks better, reduces snagging risk, and because the load is close to the wall the mount has a higher safe working load rating.
Latches Securely
The display latches on the horizontal section as the display is hung in place. Snap the plastic pull-rods off to length so they are hidden behind the display. Give the pull-rods a downward tug to unlatch the display.
Hide Media Player
Thoughtfully placed VESA 100 x 100 mm holes on the horizontal part allow a thin media player to fix behind the display out of sight.
Side Shelf
An optional flip-up laptop shelf comes with an adjustable outrigger which fixes it to the horizontal section. It can be positioned at the correct height to the side of the display.
Logitech Rally Brackets
Additional optional brackets are available to fix Logitech s Rally system hubs and soundbar to the optional video conference shelf.
Heavy Duty
Interactive flat panels are large and very heavy. Vision s VFM-W8X6 uses heavy gauge sheet metal to take the weight up to SWL 130 kg / 287 lb safely.
For 47-90" Displays
Fits most displays from 47-90 3. Note: curved screens are not supported by this mount.
Designed for Professionals
A proven design allows fast fixing, and slotted holes on the wall part allowing levelling adjustment after fixing.
Side by Side
Two horizontal sections can be fixed together side by side for dual-display video conference or huddle room applications. Or extend the horizontal to bridge wide load bearing points in a wall.
Optional Rotation
A rotary bearing assembly can be added, allowing the display to be turned from portrait to landscape. For this reason the vertical arms can be fixed to the horizontal rail from behind so the display doesn t slide down the rail when the display is turned to portrait.
Video Conference Shelf
An optional shelf fixes in the centre above or below the display. Any camera including the Logitech Rally can be fixed to the shelf. It is also designed to accommodate Yamaha s VVC-1000 " which fixes securely in place, and Barco s Clickshare base stations. With VESA 100 x 100 mm holes on the vertical section, product s like Heckler s Zoom Room iPad enclosure can be fixed.
Everything Included
Vision includes everything you need including a load of M5, 6, and 8 bolts in varying lengths to fix the vertical arms to the rear of the display.
Meets Regulations
The thin design holds the display just 36 mm / 1.4 3 off the wall.This looks better, reduces snagging risk, and because the load is close to the wall the mount has a higher safe working load rating.
Latches Securely
The display latches on the horizontal section as the display is hung in place. Snap the plastic pull-rods off to length so they are hidden behind the display. Give the pull-rods a downward tug to unlatch the display.
Hide Media Player
Thoughtfully placed VESA 100 x 100 mm holes on the horizontal part allow a thin media player to fix behind the display out of sight.
Side Shelf
An optional flip-up laptop shelf comes with an adjustable outrigger which fixes it to the horizontal section. It can be positioned at the correct height to the side of the display.
Logitech Rally Brackets
Additional optional brackets are available to fix Logitech s Rally system hubs and soundbar to the optional video conference shelf.
| Mounting | |
| Minimum screen size The minimum screen size which can be used with this product. | 119.4 cm (47") |
| Maximum weight capacity The maximum weight that the product is designed to hold/store. | 130 kg |
| Maximum screen size The maximum screen size which can be used with this product. | 2.29 m (90") |
| Mounting type Type of mounting e.g. wall mounting. | Wall |
| Minimum VESA mount | 300 x 300 mm |
| Maximum VESA mount | 800 x 600 mm |
| Panel mounting interface The product can be used wih VESA mounting interfaces. | 300 x 400,300 x 300,400 x 200,400 x 400,400 x 300,400 x 600,500 x 400,600 x 400,600 x 600,600 x 500,800 x 400,800 x 500,800 x 600 |
| Number of displays supported The number of displays that can be used with this product. | 1 |
| Design | |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Housing material What the casing of the product is made of. | Steel |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 845 mm |
| Height The measurement of the product from head to foot or from base to top. | 635 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 5.8 kg |
| Packaging data | |
| Package width The distance from one side of the packaging to the other. | 880 mm |
| Package depth The distance from the front to the back of the packaging. | 235 mm |
| Package height The distance from the top to the bottom of the packaging. | 40 mm |
| Package weight Weight of the packaged product. | 6.8 kg |
| Technical details | |
| Sustainability certificates | RoHS |
| Logistics data | |
| Harmonized System (HS) code | 85299097 |
| SKU | 601755 |
| MPN | VFM-W8X6 |
| Brand | Microsoft |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.microsoft.com/ |
