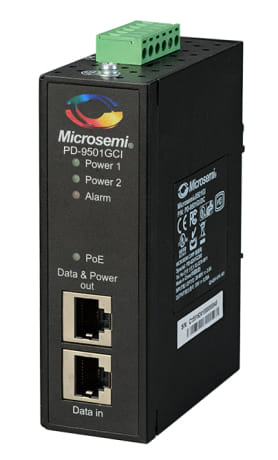

Microsemi PD-9501GCI, Fast Ethernet, Gigabit Ethernet, 10,100,1000 Mbit/s, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, Black, Green, 1/2 (-), 3/6 (+), 4/5 (+), 7/8 (
Summary
The single-port PoE midspan is a high-power solution for remote powering of current and emerging high-power indoor applications. Generating 60W, the PD-9501GCI enables remote power for a new range of applications including wireless access points, Pan-Tilt Zoom (PTZ) cameras and other IP terminals. It complies to IEEE 802.3at PoE standard and is backward compatible to IEEE 802.3af. It can power both existing 10/100/1000Base-T network devices and 1000BaseT devices such as wireless IEEE wireless access points.
The single-port PoE midspan is a high-power solution for remote powering of current and emerging high-power indoor applications. Generating 60W, the PD-9501GCI enables remote power for a new range of applications including wireless access points, Pan-Tilt Zoom (PTZ) cameras and other IP terminals. It complies to IEEE 802.3at PoE standard and is backward compatible to IEEE 802.3af. It can power both existing 10/100/1000Base-T network devices and 1000BaseT devices such as wireless IEEE wireless access points.
| Network | |
| Ethernet interface type | Fast Ethernet, Gigabit Ethernet |
| Ethernet LAN data rates The different speed levels of the Ethernet LAN connection. | 10,100,1000 Mbit/s |
| Power over Ethernet (PoE) The device supports Power over Ethernet (PoE), which is one of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras. |
 |
| Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g. | IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt |
| Features | |
| Product colour The colour e.g. red, blue, green, black, white. | Black, Green |
| Plug and Play Indicates whether this product supports is "plug and play". Plug and play is hardware or software that, after being installed ("plugged in"), can immediately be used ("played with"), as opposed to hardware or software which requires configuration. |
|
| LED indicators |
|
| Pin assignment & polarity | 1/2 (-), 3/6 (+), 4/5 (+), 7/8 (–) |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. | 2 |
| RJ-45 input ports | 1 |
| RJ-45 output ports | 1 |
| Power | |
| Power over Ethernet (PoE) voltage One of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras. | 55 V |
| Input voltage The voltage (V) which is required to power the product. | 20-60 V |
| Input current | 4 A |
| Power over Ethernet (PoE) power per port | 60 W |
| Certificates | |
| Compliance certificates | RoHS, WEEE |
| Certification | IP30, Part 15, Class A, EN50532 Class A (emissions), EN55024 (immunity), UL 508 , IEC 60068-2-27, IEC 60068-2-31, IEC 60068-2-6 |
| Operational conditions | |
| Operating temperature (T-T) | -40 - 167 °F |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -40 - 85 °C |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 35 mm |
| Depth The distance from the front to the back of something. | 78 mm |
| Height The measurement of the product from head to foot or from base to top. | 111 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 373 g |
| SKU | 836014 |
| MPN | PD-9501GCI/DC |
| Brand | Microsemi |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | N/A |
