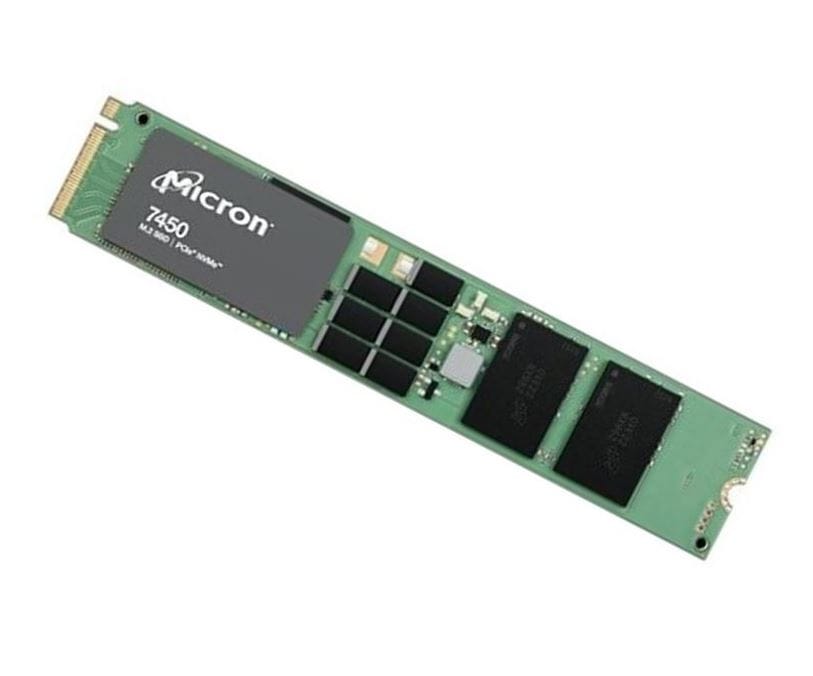

Micron 7450 Pro 960GB Gen4 NVMe Enterprise SSD M.2 5000/1400 MB/s R/W 520K/82K IOPS 1700TBW 1DWPD 2M hrs MTTF Server Data Centre 5yrs
Micron 7450 Pro 960GB Gen4 NVMe Enterprise SSD M.2 5000/1400 MB/s R/W 520K/82K IOPS 1700TBW 1DWPD 2M hrs MTTF Server Data Centre 5yrs
Main Specifications
Device Type NVMe M.2 Solid state drive - internal
Capacity 960GB
Form Factor M.2: 22x110mm
Interface PCIe Gen4 1x4 NVMe (v1.4)
NAND Flash Memory Type Micron 176-layer 3D TLC NAND
Performance
Internal Data Rate 5000 MB/s (Read) / 1400 MB/s (Write)
4KB Random Read 520K IOPS
4KB Random Write 82K IOPS
Average Latency 80 (read) - 15 (write)
Endurance DWPD 1DWPD
Miscellaneous
MTBF 2 million device hours
Main Specifications
Device Type NVMe M.2 Solid state drive - internal
Capacity 960GB
Form Factor M.2: 22x110mm
Interface PCIe Gen4 1x4 NVMe (v1.4)
NAND Flash Memory Type Micron 176-layer 3D TLC NAND
Performance
Internal Data Rate 5000 MB/s (Read) / 1400 MB/s (Write)
4KB Random Read 520K IOPS
4KB Random Write 82K IOPS
Average Latency 80 (read) - 15 (write)
Endurance DWPD 1DWPD
Miscellaneous
MTBF 2 million device hours
| Features | |
| NVMe version | 1.4 |
| SSD form factor The size of the solid-state drive, given in inches | M.2 |
| SSD capacity The Solid State Drive's data storage capacity. | 960 GB |
| Interface Interface ports to connect pieces of equipment. USB (Universal Serial Bus) has become the most popular wired interface to connect peripherals. USB 2.0 supports speeds up to 480 Mbit/s (USB 1: 12 Mbit/s). The interface FireWire is also known as the IEEE 1394 standard. Enhanced IDE (EIDE)is sometimes referred to as Fast ATA, Fast IDE or ATA-2. | PCI Express 4.0 |
| NVMe NVM Express (NVMe) or Non-Volatile Memory Host Controller Interface Specification (NVMHCIS) is an open logical device interface specification for accessing non-volatile storage media attached via a PCI Express (PCIe) bus. NVM Express, as a logical device interface, has been designed to capitalize on the low latency and internal parallelism of solid-state storage devices. |
 |
| Memory type Type of memory in the device e.g. DDR3, SRAM (Static RAM). | 3D TLC NAND |
| Component for What this product is used as a part of (component for). | Server/workstation |
| Hardware encryption |
|
| Target workload | Read Intensive (RI) |
| Random read (4KB) | 520000 IOPS |
| Random write (4KB) | 82000 IOPS |
| Read latency | 80 µs |
| Write latency | 15 µs |
| PCI Express interface data lanes | x4 |
| Uncorrectable Bit Error Rate (UBER) | < 1 per 10^17 bits read |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 70 °C |
| SKU | 798782 |
| MPN | MTFDKBA960TFR-1BC15ABYYR |
| Brand | Micron |
| Product Condition | Brand New/Unused |
| Drive Form Factor | M.2 |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 5 Years Warranty |
| Warranty Contact | https://www.micron.com/ |
