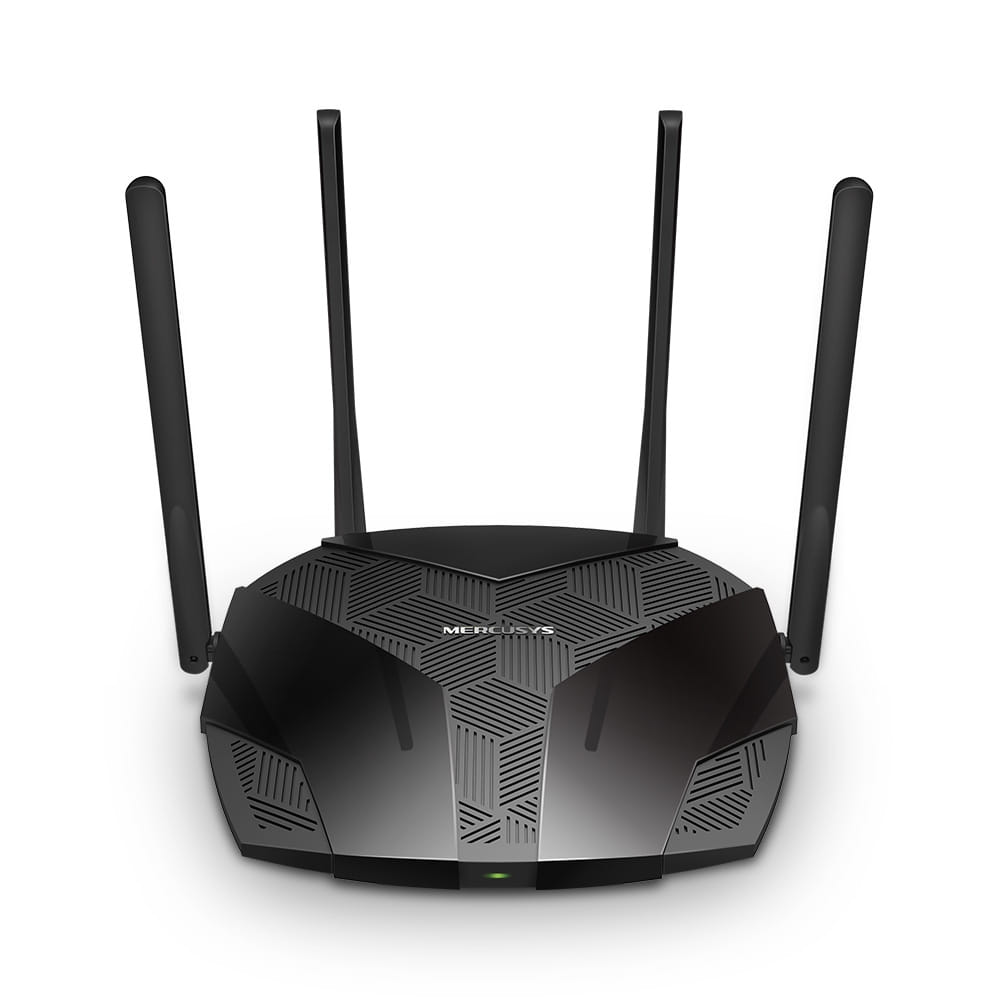

Mercusys MR70X AX1800 Dual-Band WiFi 6 Router, Up to 1.8Gbps, OFDMA, MU-MIMO, WPA3
MR70X
AX1800 Dual-Band WiFi 6 Router
Next-Gen WiFi 6 Speeds " Optimal WiFi 6 speeds reaching up to 1.8 Gbps (1201 Mbps on the 5 GHz band and 574 Mbps on the 2.4 GHz band)
4 - More Capacity " OFDMA and MU-MIMO allow simultaneous data transmission to and from several devices, improving overall network efficiency
Broader, Stronger Coverage " 4 - multi-directional high-gain antennas with Beamforming boost stable connections throughout your home for strong WiFi signals in every corner
Overall Security Protection " The latest WPA3 provides improved WiFi security
Gigabit Wired Connections " Make full use of your internet access and transfer data at dizzying speeds for peak performance
Eco-Friendly Power Saving " Target Wake Time (TWT) reduces power consumption for your mobile and IoT devices during data transmissions
Less WiFi Interference " Minimizes the interference from neighboring signals to improve transmission efficiency with BSS color
Smart Connect " Intelligently chooses the best available band for each device
Access Point Mode " Extends a wired network and makes it wireless
WirelessWireless Standards
Compatible with 802.11ax/ac/a/b/g/n Wi-Fi standards
Signal Rate
1201 Mbps (5 GHz) + 574 Mbps (2.4 GHz)
Reception Sensitivity
11g 6Mbps: -96dBm
11g 54Mbps: -78dBm
11n HT40 MCS7:-74dBm
11n HT20 MCS7:-77dBm
11a 6Mbps:-94dBm
11a 54Mbps:-76dBm
11ac VHT20 MCS8:-71dBm
11ac VHT40 MCS8:-68dBm
11ac VHT80 MCS8:-65dBm
Transmission Power
2.4 GHz < 20dBm (EIRP)
5 GHz < 23dBm (EIRP)
Wireless Security
WPA-PSK / WPA2-PSK/ WPA3 wireless encryption
Wireless Functions
Enable/Disable Wireless Radio, WMM
SoftwareWAN Type
Dynamic IP/Static IP/PPPoE/L2TP/PPTP
Management
Access Control
Local Management
Remote Management
DHCP
Server, DHCP Client List
NAT Forwarding
Port Forwarding, Port Triggering, UPnP, DMZ
Firewall Security
SPI
AX1800 Dual-Band WiFi 6 Router
Next-Gen WiFi 6 Speeds " Optimal WiFi 6 speeds reaching up to 1.8 Gbps (1201 Mbps on the 5 GHz band and 574 Mbps on the 2.4 GHz band)
4 - More Capacity " OFDMA and MU-MIMO allow simultaneous data transmission to and from several devices, improving overall network efficiency
Broader, Stronger Coverage " 4 - multi-directional high-gain antennas with Beamforming boost stable connections throughout your home for strong WiFi signals in every corner
Overall Security Protection " The latest WPA3 provides improved WiFi security
Gigabit Wired Connections " Make full use of your internet access and transfer data at dizzying speeds for peak performance
Eco-Friendly Power Saving " Target Wake Time (TWT) reduces power consumption for your mobile and IoT devices during data transmissions
Less WiFi Interference " Minimizes the interference from neighboring signals to improve transmission efficiency with BSS color
Smart Connect " Intelligently chooses the best available band for each device
Access Point Mode " Extends a wired network and makes it wireless
WirelessWireless Standards
Compatible with 802.11ax/ac/a/b/g/n Wi-Fi standards
Signal Rate
1201 Mbps (5 GHz) + 574 Mbps (2.4 GHz)
Reception Sensitivity
11g 6Mbps: -96dBm
11g 54Mbps: -78dBm
11n HT40 MCS7:-74dBm
11n HT20 MCS7:-77dBm
11a 6Mbps:-94dBm
11a 54Mbps:-76dBm
11ac VHT20 MCS8:-71dBm
11ac VHT40 MCS8:-68dBm
11ac VHT80 MCS8:-65dBm
Transmission Power
2.4 GHz < 20dBm (EIRP)
5 GHz < 23dBm (EIRP)
Wireless Security
WPA-PSK / WPA2-PSK/ WPA3 wireless encryption
Wireless Functions
Enable/Disable Wireless Radio, WMM
SoftwareWAN Type
Dynamic IP/Static IP/PPPoE/L2TP/PPTP
Management
Access Control
Local Management
Remote Management
DHCP
Server, DHCP Client List
NAT Forwarding
Port Forwarding, Port Triggering, UPnP, DMZ
Firewall Security
SPI
| WAN connection | |
| Ethernet WAN |
 |
| SIM card slot Whether the device features a SIM card slot. |
 |
| 3G/4G USB modem compatibility |
|
| Wireless LAN features | |
| Wi-Fi band The frequency bands the product features. | Dual-band (2.4 GHz / 5 GHz) |
| Top Wi-Fi standard Connection of this device is done via Wi-Fi in a high standard. | Wi-Fi 6 (802.11ax) |
| WLAN data transfer rate (max) | 1775 Mbit/s |
| Wi-Fi standards The type of wireless local area network (LAN). It can be ad-hoc, where units in a network communicate peer-to-peer, or Infrastructure, where units communicate with each other via an access point A LAN interconnects computers in a small area e.g. home, school or office. | 802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n),Wi-Fi 5 (802.11ac),Wi-Fi 6 (802.11ax) |
| WLAN data transfer rate (first band) | 1201 Mbit/s |
| WLAN data transfer rate (second band) | 574 Mbit/s |
| Network | |
| Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable. |
|
| Ethernet LAN interface type The characteristics of the Ethernet LAN interface. | Gigabit Ethernet |
| Ethernet LAN data rates The different speed levels of the Ethernet LAN connection. | 10,100,1000 Mbit/s |
| Cabling technology Type of cable technology performance. | 10/100/1000Base-T(X) |
| Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g. | IEEE 802.11a,IEEE 802.11ac,IEEE 802.11ax,IEEE 802.11b,IEEE 802.11g,IEEE 802.11n |
| Port forwarding |
|
| Port triggering |
|
| Wireless radio |
|
| Mobile network | |
| 3G Third generation of mobile telecommunications technology, 3G finds application in wireless voice telephony, mobile Internet access, fixed wireless Internet access, video calls and mobile TV. |
|
| 4G Fourth generation of mobile phone mobile communication technology standards. A 4G system provides mobile ultra-broadband Internet access, for example to laptops with USB wireless modems, to smartphones, and to other mobile devices. Conceivable applications include amended mobile web access, IP telephony, gaming services, high-definition mobile TV, video conferencing, 3D television, and cloud computing. |
|
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. | 4 |
| USB port The device features a socket into which a USB cable can be plugged. |
|
| Memory card slot(s) Places where memory cards are placed inside and connected to the computer motherboard. |
|
| Management features | |
| Reset button |
|
| WPS push button |
|
| Security | |
| Firewall |
|
| Firewall security Part of a computer system or network which is designed to block unauthorized access while permitting outward communication. | SPI Firewall, IP and MAC Address Binding |
| Access Control List (ACL) |
|
| MAC address filtering Security access control method whereby the 48-bit address assigned to each network card is used to determine access to the network. MAC addresses are uniquely assigned to each card, so using MAC filtering on a network permits and denies network access to specific devices through the use of blacklists and whitelists. |
|
| DMZ support |
|
| Protocols | |
| DHCP client Whether the product features a DHCP (Dynamic Host Configuration Protocol) to obtain IP addresses within a network. |
|
| DHCP server A server is a system which that responds to requests across a computer network to provide, or help to provide, a network service. DCHP servers uses the DCHP (Dynamic Host Configuration Protocol), which is a standardized networking protocol used by servers on an IP network to allocate IP addresses to computers. The purpose of DHCP is to automate the IP address configuration of a computer without a network administrator. IP addresses are typically selected from a range of assigned IP addresses stored in a database on the server and issued to a computer which requests a new IP address. An IP address is assigned to a computer for a set interval, after which, the computer must renew the IP address or acquire a new one. |
|
| Universal Plug and Play (UPnP) |
|
| Design | |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Wall mountable The product can be mounted on (attached to ) a wall. |
|
| LED indicators | Power, WLAN |
| Product type The sub-category of the product. | Tabletop router |
| Antenna | |
| Antenna type Type of antenna, also known an aerial, e.g. external, internal. | External |
| Antenna gain level (max) Antenna gain is the measurement of an antenna's ability to amplify the incoming microwave signals in a particular direction, compared with the sensitivity of an isotropic antenna in any direction, or a dipole antenna in the equatorial direction. | 5 dBi |
| Antennas quantity | 4 |
| Detachable antenna(s) |
|
| Power | |
| Power source type What the power source is. | DC |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 40 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 208.8 mm |
| Depth The distance from the front to the back of something. | 171.6 mm |
| Height The measurement of the product from head to foot or from base to top. | 41.7 mm |
| Packaging data | |
| Cables included | LAN (RJ-45) |
| AC adapter included |
|
| Quick installation guide |
|
| SKU | 500285 |
| MPN | MR70X |
| Brand | Mercusys |
| Product Condition | Brand New/Unused |
| Modem Type | Ethernet |
| Wired/Wireless | Wireless |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 5 Years Warranty |
| Warranty Contact | https://www.mercusys.com/ |
