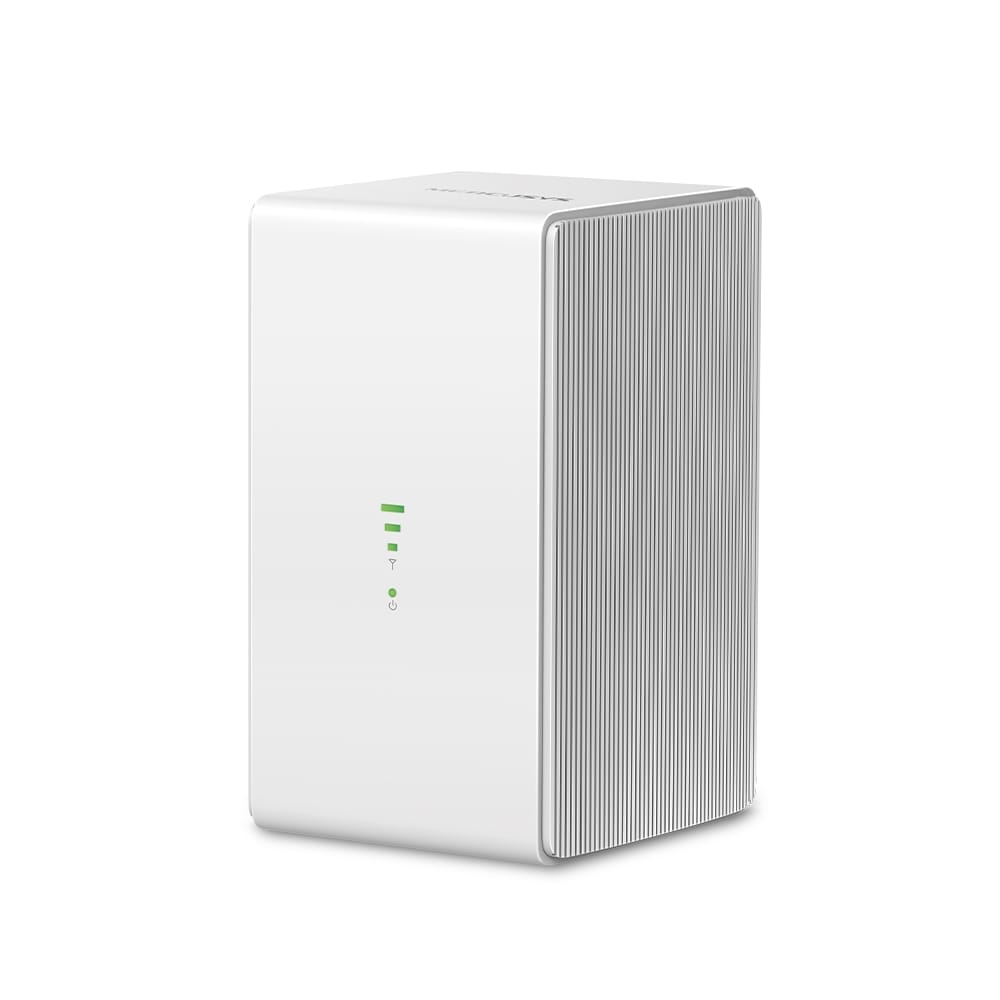

Mercusys MB110 4G 300 Mbps Wireless 4G LTE Router

WAN connection
Ethernet WAN
DSL WAN Whether or not the product features a DSL WAN (Wide Area Network) connection option.
SIM card slot Whether the device features a SIM card slot.
3G/4G USB modem compatibility
WAN connection type	RJ-45

Wireless LAN features
Wi-Fi band The frequency bands the product features.	Single-band (2.4 GHz)
Top Wi-Fi standard Connection of this device is done via Wi-Fi in a high standard.	Wi-Fi 4 (802.11n)
WLAN data transfer rate (max)	300 Mbit/s
Wi-Fi standards The type of wireless local area network (LAN). It can be ad-hoc, where units in a network communicate peer-to-peer, or Infrastructure, where units communicate with each other via an access point A LAN interconnects computers in a small area e.g. home, school or office.	802.11b, 802.11g, Wi-Fi 4 (802.11n)

Network
Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable.
Ethernet LAN interface type The characteristics of the Ethernet LAN interface.	Ethernet
Ethernet LAN data rates The different speed levels of the Ethernet LAN connection.	10,100 Mbit/s
Cabling technology Type of cable technology performance.	10/100Base-T(X)
Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g.	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Port forwarding
Port triggering
Dynamic DNS (DDNS)

Mobile network
Mobile network generation	4G
Dual SIM support Two SIM cards can be used in the phone.
3G standards	HSPA, HSPA+, UMTS
4G standard	LTE-TDD & LTE-FDD
UMTS bands supported	850,900,2100 MHz
4G bands supported	700,800,850,900,1800,2100,2300,2500,2600 MHz
SIM card type	NanoSIM

Ports & interfaces
Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet.	2
USB port The device features a socket into which a USB cable can be plugged.
DC-in jack The socket/plug where the DC electricity supply connects to the device.

Management features
Wi-Fi Multimedia (WMM)/(WME)
Reset button
WPS push button

Security
Security algorithms Security algorithms are used to provide authentication, cipher key generation, integrity and radio link privacy to users on mobile networks. The security algorithms supported are the ones that can be used with this product.	64-bit WEP, 128-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK
Firewall
Port-based Network Access Control (PNAC)
System event log
DMZ support

Protocols
DHCP server A server is a system which that responds to requests across a computer network to provide, or help to provide, a network service. DCHP servers uses the DCHP (Dynamic Host Configuration Protocol), which is a standardized networking protocol used by servers on an IP network to allocate IP addresses to computers. The purpose of DHCP is to automate the IP address configuration of a computer without a network administrator. IP addresses are typically selected from a range of assigned IP addresses stored in a database on the server and issued to a computer which requests a new IP address. An IP address is assigned to a computer for a set interval, after which, the computer must renew the IP address or acquire a new one.
Universal Plug and Play (UPnP)
VoIP protocols	IPv4, IPv6

Design
Product colour The colour e.g. red, blue, green, black, white.	White
Indication light
Product type The sub-category of the product.	Desktop/pole router

Packaging content
AC adapter included
Antenna included An antenna (aerial) is built into the product or comes with it.
Quick installation guide

Antenna
Antenna design	Internal

Features
Firmware upgradeable

Power
Power source type What the power source is.	DC
Output voltage	9 V
Output current	0.85 A

Operational conditions
Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated.	0 - 40 °C
Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored.	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%

Weight & dimensions
Width The measurement or extent of something from side to side.	90 mm
Depth The distance from the front to the back of something.	92 mm
Height The measurement of the product from head to foot or from base to top.	150.5 mm

Packaging data
Package type The type of product package e.g. box.	Box
Number of products included The number of products that are included in the package.	1 pc(s)
