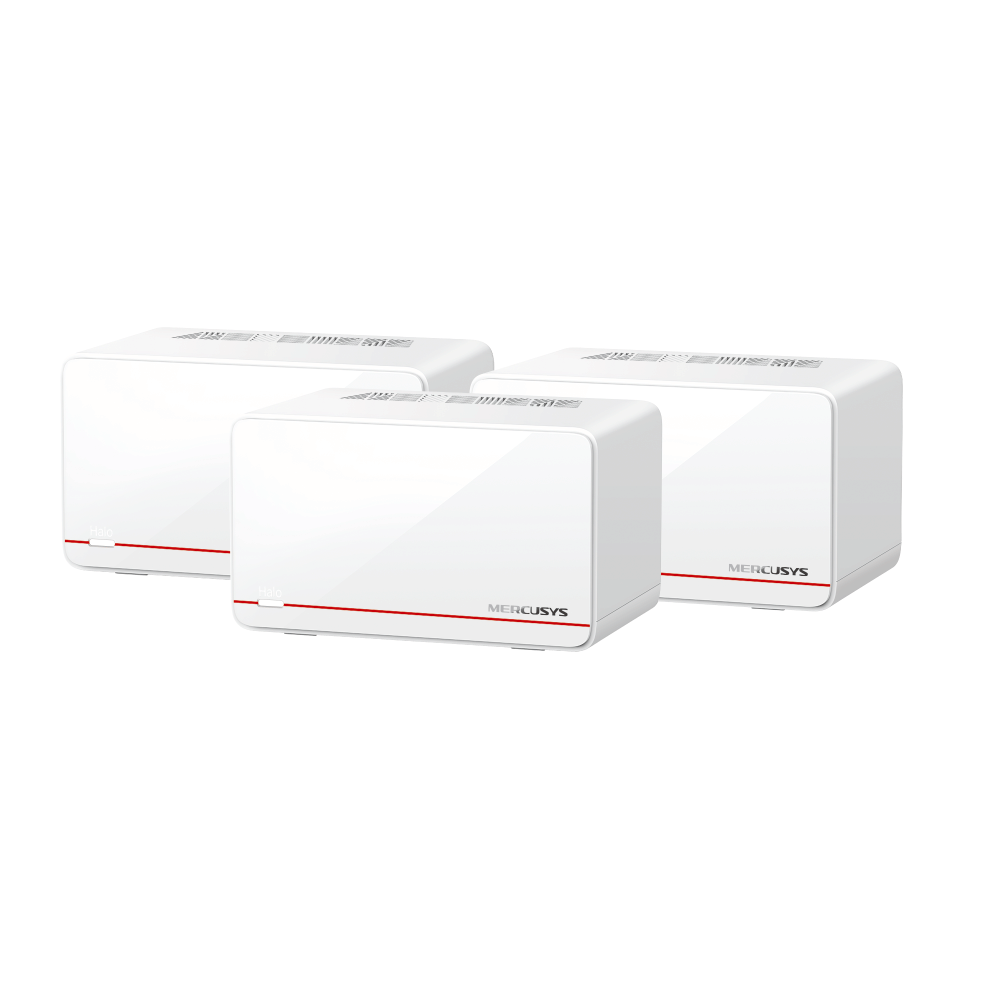

Blazing-Fast 6.5 Gbps Dual-Band Speeds: Enables your devices to run at full speed. Enjoy fluent 4K/8K streaming, immersive AR/VR gaming, and blazing-fast downloads.; Newest Wi-Fi 7: Armed with the 160 MHz channels, 4K-QAM, MLO, and other features that Wi-Fi 7 offers, your network will arrive with a jaw-dropping performance.; Seamless Roaming for a Smooth Network Experience: No more sudden signal drops or lagging Wi-Fi when you're walking around the house.; Multi-Link Operation (MLO): Increases throughput, reduces latency, and improves reliability for emerging applications.; 2.5G Ports: 2× 2.5 Gbps WAN/LAN auto-sensing ports break through the 1G bottleneck, driving your devices to peak performance.; Whole Home Multi-Gigabit Coverage: Halo mesh units work as a unified network to fill your home up to 7,000 ft² /650 m²(3-pack) ; Easy Setup and Use: Network management has never been easier with the MERCUSYS app.
| Design | |
| Product type The sub-category of the product. | Mesh system |
| Product colour The colour e.g. red, blue, green, black, white. | White |
| LED indicators |
 |
| Antenna type Type of antenna, also known an aerial, e.g. external, internal. | Internal |
| Maximum coverage | 650 m² |
| Reset button |
|
| Wireless LAN features | |
| Wi-Fi band The frequency bands the product features. | Dual-band (2.4 GHz / 5 GHz) |
| Top Wi-Fi standard Connection of this device is done via Wi-Fi in a high standard. | Wi-Fi 7 (802.11be) |
| Wi-Fi standards The type of wireless local area network (LAN). It can be ad-hoc, where units in a network communicate peer-to-peer, or Infrastructure, where units communicate with each other via an access point A LAN interconnects computers in a small area e.g. home, school or office. | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be) |
| WLAN data transfer rate (max) | 6448 Mbit/s |
| WLAN data transfer rate (first band) | 688 Mbit/s |
| WLAN data transfer rate (second band) | 5760 Mbit/s |
| Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g. | IEEE 802.11k, IEEE 802.11r, IEEE 802.11v |
| Security algorithms Security algorithms are used to provide authentication, cipher key generation, integrity and radio link privacy to users on mobile networks. The security algorithms supported are the ones that can be used with this product. | WPA-PSK, WPA2-PSK, WPA3-SAE |
| Number of guest networks (5 GHz) | 1 |
| Number of guest networks (2.4 GHz) | 1 |
| Point-to-point protocol over Ethernet (PPPoE) The Point-to-Point Protocol over Ethernet (PPPoE) is a network protocol for encapsulating PPP frames inside Ethernet frames. It appeared in 1999, in the context of the boom of DSL as the solution for tunneling packets over the DSL connection to the ISP's IP network, and from there to the rest of the Internet. A 2005 networking book noted that "Most DSL providers use PPPoE, which provides authentication, encryption, and compression." Typical use of PPPoE involves leveraging the PPP facilities for authenticating the user with a username and password, predominately via the PAP protocol and less often via CHAP. |
|
| Dynamic IP |
|
| Static IP |
|
| Guest access |
|
| Features | |
| Quality of Service (QoS) support |
|
| Port forwarding |
|
| Firewall security Part of a computer system or network which is designed to block unauthorized access while permitting outward communication. | SPI |
| DHCP client Whether the product features a DHCP (Dynamic Host Configuration Protocol) to obtain IP addresses within a network. |
|
| DHCP server A server is a system which that responds to requests across a computer network to provide, or help to provide, a network service. DCHP servers uses the DCHP (Dynamic Host Configuration Protocol), which is a standardized networking protocol used by servers on an IP network to allocate IP addresses to computers. The purpose of DHCP is to automate the IP address configuration of a computer without a network administrator. IP addresses are typically selected from a range of assigned IP addresses stored in a database on the server and issued to a computer which requests a new IP address. An IP address is assigned to a computer for a set interval, after which, the computer must renew the IP address or acquire a new one. |
|
| Parental control |
|
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. | 3 |
| Ethernet WAN |
|
| DC-in jack The socket/plug where the DC electricity supply connects to the device. |
|
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 40 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 150 mm |
| Depth The distance from the front to the back of something. | 94 mm |
| Height The measurement of the product from head to foot or from base to top. | 86 mm |
| Packaging content | |
| AC adapter included |
|
| Number of units included | 3 pc(s) |
| Ethernet cable |
|
| Quick installation guide |
|
| SKU | 822698 |
| MPN | Halo H37BE(3-pack) |
| Brand | Mercusys |
| Product Condition | Brand New/Unused |
| Modem Type | 5G |
| Wired/Wireless | Wireless |
| Stock Availability | Available for Shipping |
| Warranty Period | 2 Years Warranty |
| Warranty Contact | https://www.mercusys.com/ |
