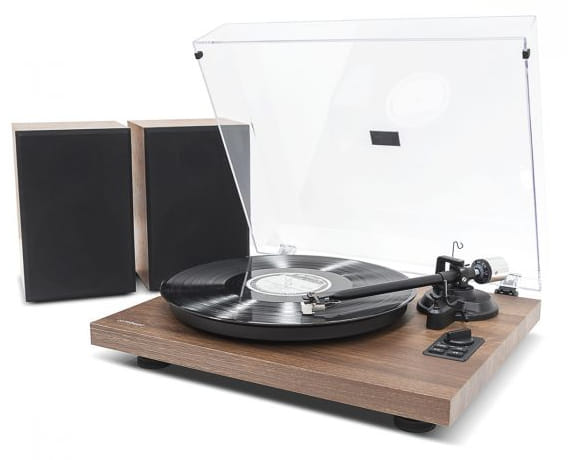

mbeat HIFI Turntable with Speakers
The MB-PT-28 turntable is a true Hi-Fi experience, boasting a solid metal platter over sub-platter system to dampen unwanted resonance and noise. Enjoy your favourite 33/45 vinyl " or stream with Bluetooth via a smart device " using the included set of powerful speakers or plug directly into your own sound system with the unit 's built-in
pre-amplifiers. Complete with adjustable counterweight, anti-skating and moving magnet cartridge, immerse yourself in uncompromising, authentic sound.
Specifications
TURNTABLE
Nominal Speeds: 33 1/3 RPM, 45 RPM
Speed Variance: +-1%
Wow and Flutter: 0.15%
Signal to Noise: -65dB
Down force Range: 0-6.0g
Effective Tonearm Length: 8.6 (218.5 mm)
Overhang: 0.73 in
Power Consumption: 70W (Max)
Outboard Power Supply: 15V/2400mA AC-DC
Turntable Dimensions: 418 x 360 x 125 mm
Weight: 5.7 kg
STYLUS
Model: Audio-Technica AT3600
Frequency Response: 20Hz - 20kHz
Channel Balance: <2.5dB
Channel Separation: >18dB
Output Voltage: 2.5mV
Recommended Load Resistance: 47k
Amplifier Connection: MM (Moving Magnet)
- input
Recommended Tracking Force: 3.5 +-0.5 g
Weight: 5.1 g
SPEAKER
Power: 18W (each)
Speaker Units: Woofer: 4 | Tweeter: 2
Impedance: 4
Frequency Response: 50Hz-20KHz
Speaker Dimensions: 160 x 158 x 249 mm
Weight: 3.6 kg
pre-amplifiers. Complete with adjustable counterweight, anti-skating and moving magnet cartridge, immerse yourself in uncompromising, authentic sound.
Specifications
TURNTABLE
Nominal Speeds: 33 1/3 RPM, 45 RPM
Speed Variance: +-1%
Wow and Flutter: 0.15%
Signal to Noise: -65dB
Down force Range: 0-6.0g
Effective Tonearm Length: 8.6 (218.5 mm)
Overhang: 0.73 in
Power Consumption: 70W (Max)
Outboard Power Supply: 15V/2400mA AC-DC
Turntable Dimensions: 418 x 360 x 125 mm
Weight: 5.7 kg
STYLUS
Model: Audio-Technica AT3600
Frequency Response: 20Hz - 20kHz
Channel Balance: <2.5dB
Channel Separation: >18dB
Output Voltage: 2.5mV
Recommended Load Resistance: 47k
Amplifier Connection: MM (Moving Magnet)
- input
Recommended Tracking Force: 3.5 +-0.5 g
Weight: 5.1 g
SPEAKER
Power: 18W (each)
Speaker Units: Woofer: 4 | Tweeter: 2
Impedance: 4
Frequency Response: 50Hz-20KHz
Speaker Dimensions: 160 x 158 x 249 mm
Weight: 3.6 kg
| Features | |
| Type Characteristics of the device. | Belt-drive audio turntable |
| Product colour The colour e.g. red, blue, green, black, white. | Wood |
| Hi-Fi |
 |
| Nominal speeds | 33 1/3,45 RPM |
| Volume control | Rotary |
| Signal-to-Noise Ratio (SNR) This is the ratio of signal intensity to noise intensity. | -65 dB |
| Stylus type | mm |
| Wow & flutter | 0.15% |
| Channel separation | 18 dB |
| On/off switch The button which is pressed to switch the device on or off. |
|
| LED indicators |
|
| Connection to PC Capability of connection product to PC. |
|
| Tonearm | |
| Arm length | 21.9 cm |
| Overhang | 1.85 cm |
| Ports & interfaces | |
| USB ports quantity | 1 |
| USB connector type The type of USB connector/port that this product has. | USB Type-B |
| Bluetooth Bluetooth is a low-power radio technology developed to replace the cables and wires currently used to link or connect electronic devices such as personal computers, printers, and a wide variety of handheld devices including mobile phones. Because it uses radio-wave connectivity, a Bluetooth-enabled device has a constant, established connection to whatever browser it uses. This saves the user the trouble of logging on to check for emails or news updates, for example. |
|
| Audio (L/R) out The two sockets (ports) for transmitting left audio signal (white cable) and right audio signal (red cable). | 1 |
| Line outputs (RCA) | 1 |
| Display | |
| Built-in display A display which is part of the product, so you do not need to attach another display. |
 |
| Loudspeakers | |
| Number of speakers The quantity of speakers included in/with the product. | 2 |
| RMS rated power RMS (Root mean square) is a measure of the continuous power required by a device, in particular audio amplifiers and loudspeakers. | 18 W |
| Tweeter diameter | 5.08 cm |
| Woofer diameter | 10.2 cm |
| Impedance The effective resistance of an electric circuit or component to alternating current, arising from the combined effects of ohmic resistance and reactance. | 4 Ω |
| Frequency range The lowest and the hightest frequencies that can be inputted/produced. | 50 - 20000 Hz |
| Power | |
| Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage. | 70 W |
| AC adapter input voltage | 15 V |
| AC adapter output current | 2.4 A |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 360 mm |
| Depth The distance from the front to the back of something. | 125 mm |
| Height The measurement of the product from head to foot or from base to top. | 418 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 5.7 kg |
| Satellite speaker dimensions (WxDxH) | 160 x 158 x 249 mm |
| Packaging content | |
| Quantity The number of products there are. | 1 |
| Dust cover included |
|
| SKU | 494201 |
| MPN | MB-PT-28 |
| Brand | mbeat |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.mbeat.com.au/ |
