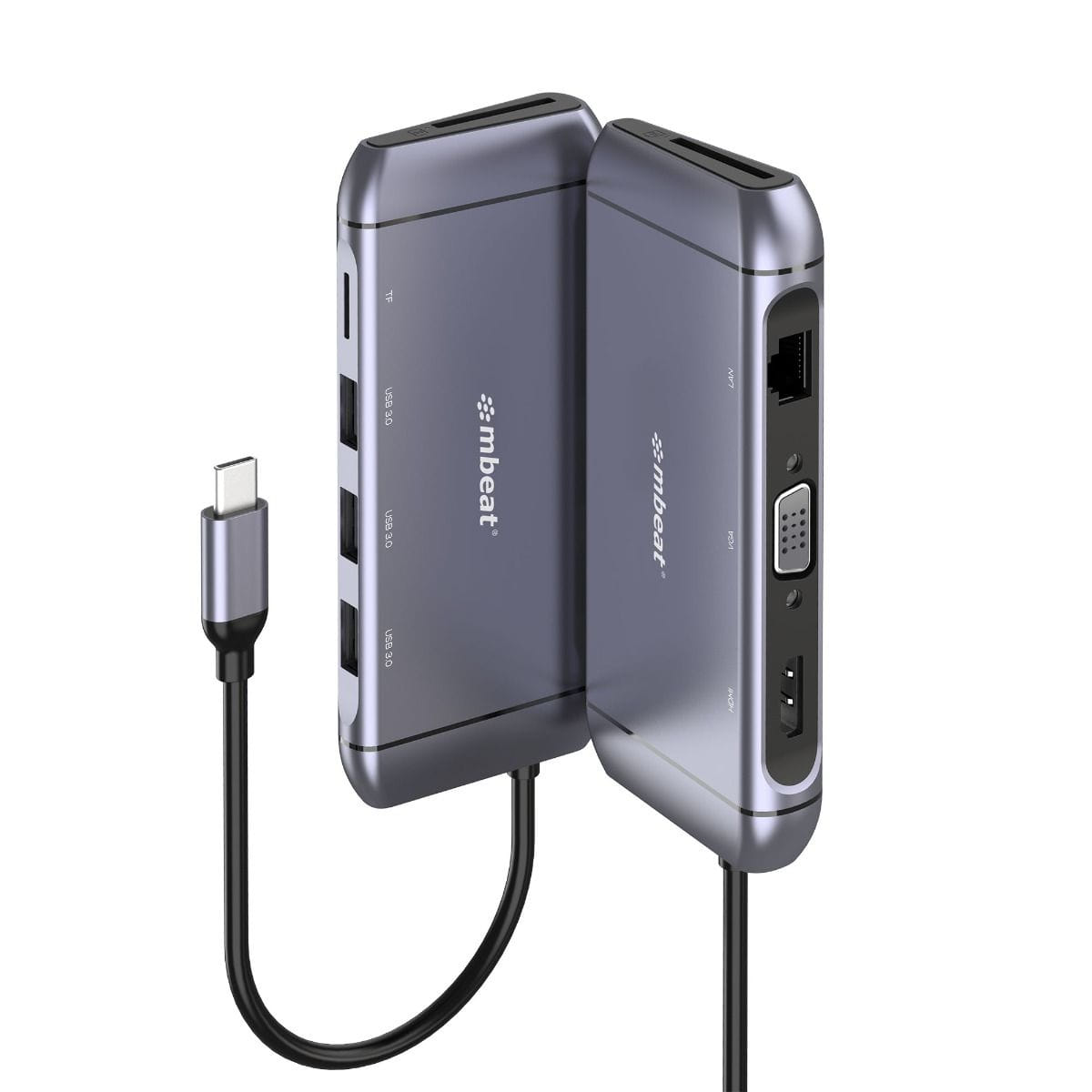

mbeat Elite X9 9-in-1 Multifunction USB-C Docking Station HDMI, VGA, USB-C PD, USB 3.0 x 3
Compact and Powerful
9-in-1 USB-C docking station, premium aluminium finish, built to last.
100W PD and Gigabit Ethernet
USB-C PD 3.0 and RJ45 LAN: supports lightning fast pass-through charging and network transfer speeds.
HDMI and VGA Displays
Extend/duplicate your USB-C laptop to HDMI/VGA displays, ideal for multiple screens or presentations.
A Full Array of Ports
Featuring additional USB 3.0 ports and SD/MicroSD card slots; connect
keyboard/mouse/HDD and memory cards.
Specifications
Input: USB-C
Output: USB 3.0 -3, USB-C PD -1, HDMI -1, VGA -1, RJ45 LAN -1, SD Card
Reader -1, MicroSD Card Reader -1
USB Port: USB 3.0 plug and play up to 5Gbps, backward compatible with
USB 2.0/1.1
USB-C PD Port: Max. PD 3.0 pass-through up to 20V/5A, 100W*
Display Ports: HDMI: 4K/30Hz | VGA: 1080P/60Hz
HDMI + VGA Dual Display: 1080P/60Hz
RJ45 LAN Port: 10/100/1000Mbps Gigabit Ethernet
SD Slot: Support SDXC, up to 2TB
MicroSD Slot: Support MicroSDXC, up to 2TB
Product Dimension: 12.4 -5.5 -1.7 cm
USB-C Cable Length: 15 cm
Product Weight: 89 g
*USB-C PD Charger is not included.
9-in-1 USB-C docking station, premium aluminium finish, built to last.
100W PD and Gigabit Ethernet
USB-C PD 3.0 and RJ45 LAN: supports lightning fast pass-through charging and network transfer speeds.
HDMI and VGA Displays
Extend/duplicate your USB-C laptop to HDMI/VGA displays, ideal for multiple screens or presentations.
A Full Array of Ports
Featuring additional USB 3.0 ports and SD/MicroSD card slots; connect
keyboard/mouse/HDD and memory cards.
Specifications
Input: USB-C
Output: USB 3.0 -3, USB-C PD -1, HDMI -1, VGA -1, RJ45 LAN -1, SD Card
Reader -1, MicroSD Card Reader -1
USB Port: USB 3.0 plug and play up to 5Gbps, backward compatible with
USB 2.0/1.1
USB-C PD Port: Max. PD 3.0 pass-through up to 20V/5A, 100W*
Display Ports: HDMI: 4K/30Hz | VGA: 1080P/60Hz
HDMI + VGA Dual Display: 1080P/60Hz
RJ45 LAN Port: 10/100/1000Mbps Gigabit Ethernet
SD Slot: Support SDXC, up to 2TB
MicroSD Slot: Support MicroSDXC, up to 2TB
Product Dimension: 12.4 -5.5 -1.7 cm
USB-C Cable Length: 15 cm
Product Weight: 89 g
*USB-C PD Charger is not included.
| Ports & interfaces | |
| Connectivity technology The technology that enables connectivity of the device, e.g. wired or wireless. | Wired |
| Host interface Interface that enables a host controller to communicate with a driver. | USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity Number of USB 3.0 (3.1 Gen 1) ports with Type-C connector. USB 3.0 (3.1 Gen 1) is USB interface version which supports transfer rate up to 5 Gbit/s (SuperSpeed). USB Type-C connector has symmetrical design architecture and compatible with Thunderbolt 3 interface. | 1 |
| USB Power Delivery |
 |
| USB Power Delivery revision | 3.0 |
| USB Power Delivery up to | 100 W |
| HDMI ports quantity The number of sockets (ports) for HDMI connections. HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor, video projector, digital television, or digital audio device. HDMI is a digital replacement for existing analog video standards. | 1 |
| VGA (D-Sub) ports quantity Number of VGA (D-Sub) ports (connecting interfaces) in the device. The VGA (D-Sub) connector is a 15 pin connector between a computer and a monitor. It was first introduced in 1987 by IBM. | 1 |
| Microphone in The socket where a microphone is connected to the device. |
 |
| Network | |
| Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable. |
|
| Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. | 1 |
| Ethernet LAN data rates The different speed levels of the Ethernet LAN connection. | 10,100,1000 Mbit/s |
| Performance | |
| Card reader integrated The device includes a card reader e.g. a card reader in the disk bay of a computer or thin client to permit log-on using smart/pin cards. |
|
| Compatible memory cards Types of memory cards which can be used with this product. | MicroSD (TransFlash), MicroSDXC, SD, SDXC |
| Maximum memory card size The maximum size of memory card that can be used with this device. | 2000 GB |
| Data transfer rate Rate at which data can be transferred. Usually expressed in units per second. May vary with network configurations. | 5 Gbit/s |
| HD type Type of supported High Definition (e.g. Full HD, 4K Ultra HD). | 4K Ultra HD |
| Maximum refresh rate | 60 Hz |
| Product colour The colour e.g. red, blue, green, black, white. | Grey |
| Power | |
| Power source type What the power source is. | USB |
| Power connector | USB Type-C |
| Power cable length | 0.15 m |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 55 mm |
| Depth The distance from the front to the back of something. | 124 mm |
| Height The measurement of the product from head to foot or from base to top. | 17 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 89 g |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| SKU | 443213 |
| MPN | MB-UCD-X9 |
| Brand | mbeat |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.mbeat.com.au/ |
