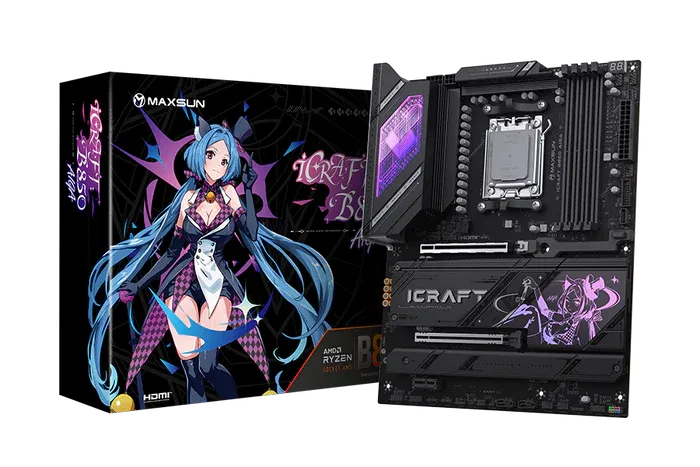

MS-iCraft B850 AIGA ATX motherboard with PCIe 5.0, Wi-Fi 7, 4x DDR5
MS-iCraft B850 AIGA
All-New Look Unleashing the Magic of AIGA
Integrated with the signature Skylight RGB alloy heatsink armor, flowing RGB lines blend to create a dynamic, magical visual effect. The front features a large M.2 heatsink showcasing the all-new AIGA character design - vivid and eye-catching. The backplate also incorporates AIGA-themed elements, fully expressing the unique charm of the AIGA series.
| Name | Value |
|---|---|
| Audio | Realtek ALC1220 audio codec |
| Chipset | AMD® B850 chipset |
| Form Factor | ATX (305 - 245 mm) |
| I/O Connectors | 1 - USB 10G Type-C® (supports DP 1.4 video output up to 4K@60Hz), 4 - USB 10G Type-A, 4 - USB 2.0 Type-A |
| Integrated CPU Graphics | 1 - HDMI 2.0 (up to 4K@60Hz), 1 - DisplayPort 1.4 (up to 4K@60Hz) |
| LAN | 1 - Realtek RTL8126 5Gb Ethernet port |
| PCI Slots | From AMD Ryzen 9000/8000/7000 CPUs: 1 - PCIe x16 slot (up to PCIe 5.0 x16/x8), 1 - PCIe x16 slot (up to PCIe 5.0 x8 or x4+x4 when bifurcation enabled; requires PCIeX16_A switch; Ryzen 8000 disables this slot); From AMD B850 chipset: 1 - PCIe x1 slot (PCIe 3.0 x1 mode) |
| Processor Support | Compatible with AMD Ryzen 7000 / 8000 / 9000 Series processors |
| RAID | |
| RAM Type/Bus/Max | 4 - DIMM DDR5 slots, up to 256GB, Dual-channel architecture, Supports AMD® EXPO, Supported speeds: 4800 / 5200 / 5600(OC) / 6000(OC) / 6400(OC) / 6600(OC) / 6800(OC) / 7000(OC) / 7200(OC) / 7400(OC) / 7600(OC) / 8000(OC) / 8200(OC) / 8400(OC) MHz |
| Socket | AMD® AM5 socket |
| Storage Interface | 4 - M.2 slots + 2 - SATA 6Gb/s; From Ryzen 9000/8000/7000 CPUs: M.2_A: PCIe 5.0 x4/x2 (2242/2280), M.2_B: PCIe 5.0 x4/x2 (2242/2280/22110); From B850 chipset: M.2_C: PCIe 4.0 x4/x2 (2242/2280/22110), M.2_D: PCIe 4.0 x4/x2 (2242/2280/22110), 2 - SATA 6Gb/s ports |
| Warranty | 3 years |
| Weight | |
| Wireless & Bluetooth | 1 - MediaTek MT7925 wireless module (Wi-Fi 7 + Bluetooth® 5.4) |
| SKU | 833587 |
| MPN | MS-iCraft B850 AIGA |
| Brand | MAXSUN |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 3 Years Warranty |
| Warranty Contact | https://www.maxsun.com/ |
