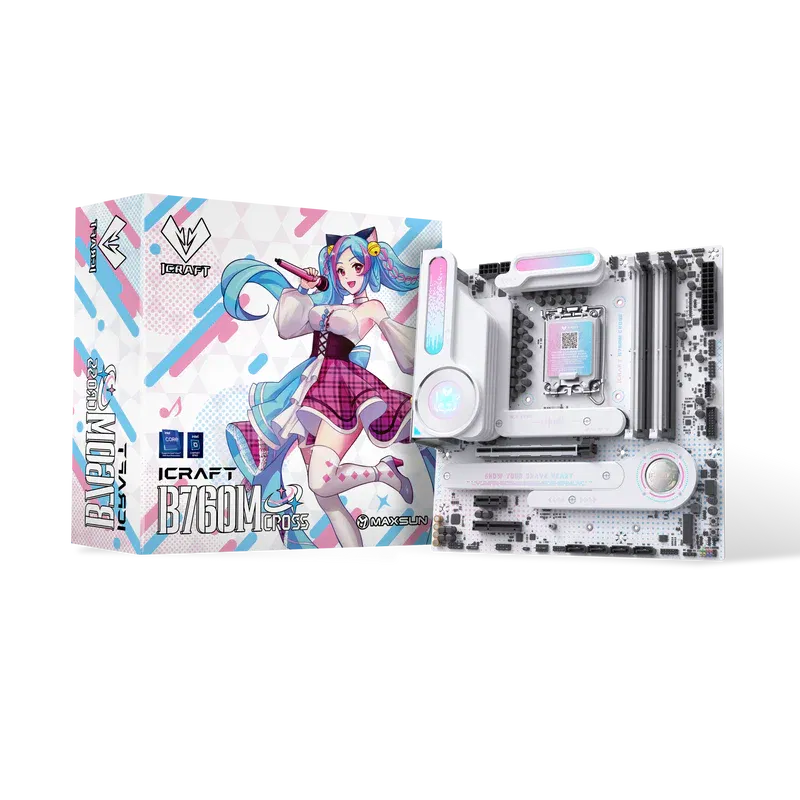

iCraft B760M CROSS
- Model: MS-iCraft B760M CROSS
- Power: Supports PL1 253W and unlimited PL2, optimized for performance.
- Memory: DDR5 with heatsink, supports up to 7GHz+ overclocking.
- Expansion: 3x PCIe 4.0 M.2 slots, extended PCIe 5.0 x16 slot.
- Design: Gradient RGB coating and blinking SSD heatsink.
- Connectivity: Dual USB 3.2 Gen2x2 Type-C, 2.5Gbps Ethernet, Wi-Fi 6, Bluetooth 5.3.
- Power Management: 12+1+1 phase power, RT3628 chip.
- Compatibility: Compatible with Intel 13th & 14th Gen processors (LGA1700).
- Features: Reinforced PCIe slots, SATA lock, Smart Button, high-speed
| Name | Value |
|---|---|
| Audio | Realtek® ALC897 Codec, 7.1-Channel High Definition Audio, Supports S/PDIF output |
| Chipset | INTEL B760 |
| Form Factor | M-ATX 245mm x 245mm |
| I/O Connectors | *Front USB (Total 7 ports): 1x USB 3.2 Gen1 Type C (10Gbps), 2x USB 3.2 Gen1 Type A, 4x USB 2.0; *Rear USB (Total 9 ports): 1x USB 3.2 Gen2 Type C (20Gbps), 4x USB 3.2 Gen1 Type A, 4x USB 2.0 |
| Integrated CPU Graphics | 1x DisplayPort, 1.4 1x HDMIport |
| LAN | Realtek® RTL8125BG 2.5G LAN |
| PCI Slots | 1x PCIe 5.0 x16 slot, 1x PCIe 3.0 x4 slot, 1x PCIe 3.0 x1 slot |
| Processor Support | Supports 12th/13th/14th Gen Intel® Core Processors, Pentium® Gold and Celeron® Processors |
| RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices |
| RAM Type/Bus/Max | 4x DDR5, Maximum Memory Capacity 192GB; Memory Support DDR5 7600(OC)/7200(OC)/7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 MHz |
| Socket | LGA 1700 |
| Storage Interface | M.2_1 slot (Key M), type 2242/2280 (supports PCIe 4.0 x4 mode), M.2_2 slot (Key M), type 2242/2280/22110 (supports PCIe 4.0 x4 mode), M.2_3 slot (Key M), type 2242/2280/22110 (supports PCIe 4.0 x4 mode), 4 x SATA 6Gb/s ports |
| Warranty | Three-Year Limited Warranty |
| Weight | |
| Wireless & Bluetooth | Intel® Wi-Fi 6E AX211, The Wireless module is pre-installed in the M.2 (Key-E) slot, Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps, Supports 802.11 a/ b/ g/ n/ ac/ ax, Supports Bluetooth® 5.3 |
| SKU | 813134 |
| MPN | MS-iCraft B760M CROSS |
| Brand | MAXSUN |
| Product Condition | Brand New/Unused |
| Motherboard Chipset | Intel B760 |
| CPU Socket | LGA 1700 |
| Memory Type | DDR5 |
| Memory Form Factor | DIMM |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 3 Years Warranty |
| Warranty Contact | N/A |
