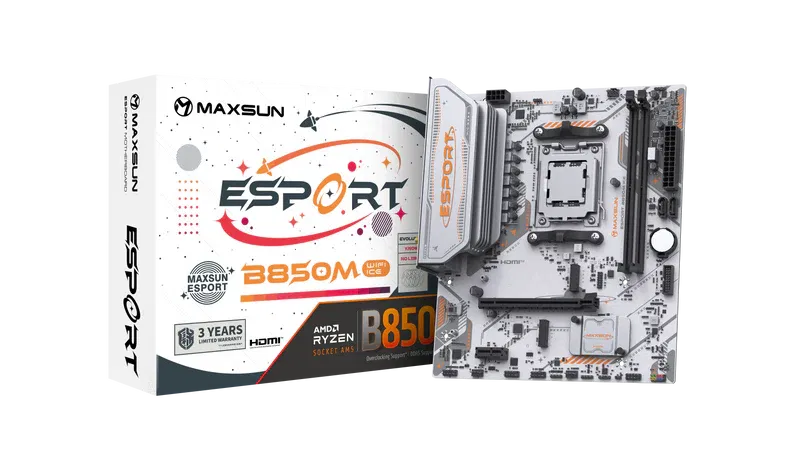

Maxsun E-sport B850 MATX/AMD AM5/2x DDR5/2x M.2
eSport B850M WIFI ICE
- Form Factor: MicroATX (245x210mm)
- CPU Compatibility: AM5 Socket for Ryzen 7000/8000/9000 Series, TDP: 88-180W
- Chipset: AMD® B850 High-Speed Chipset
- Memory: 2 x U-DIMM DDR5 slots, Up to 96GB, Supports Dual-Channel Technology, OC support up to 7800MHz
- Integrated Graphics: Shared memory, HDMI 1.4 (up to 4096x2160@30Hz), DP (up to 4096x2160@60Hz)
- Expansion Slots: 1 x PCIe x16 5.0, 1 x PCIe x1 3.0, Supports AMD/NVIDIA/Intel Graphics Cards
- Audio: Realtek ALC897, 3 Audio jacks, Front & Rear audio output support
- Networking: Realtek 8111H Gigabit Ethernet, Wi-Fi 6 (Realtek 8852BE), Bluetooth 5.2
- Storage: 2 x M.2 slots (PCIe 4.0 x4/x2), 2 x SATA 3.0
- USB Ports: 4 x USB 3.2 GEN1, 2 x USB 2.0, 1 x USB 3.2 GEN1 header
| Name | Value |
|---|---|
| Audio | Realtek ALC897, 3 Audio jacks, Front & Rear audio output support |
| Chipset | AMD® B850 High-Speed Chipset |
| Form Factor | MicroATX (245x210mm) |
| I/O Connectors | 4 x USB 3.2 GEN1, 2 x USB 2.0, 1 x USB 3.2 GEN1 header |
| Integrated CPU Graphics | Shared memory, HDMI 1.4 (up to 4096x2160@30Hz), DP (up to 4096x2160@60Hz) |
| LAN | Realtek 8111H Gigabit Ethernet |
| PCI Slots | 1 x PCIe x16 5.0, 1 x PCIe x1 3.0, Supports AMD/NVIDIA/Intel Graphics Cards |
| Processor Support | Ryzen 7000/8000/9000 Series |
| RAID | |
| RAM Type/Bus/Max | 2 x U-DIMM DDR5 slots, Up to 96GB, Supports Dual-Channel Technology, OC support up to 7800MHz |
| Socket | AM5 Socket |
| Storage Interface | 2 x M.2 slots (PCIe 4.0 x4/x2), 2 x SATA 3.0 |
| Warranty | Three-Year Limited Warranty |
| Weight | |
| Wireless & Bluetooth | Wi-Fi 6 (Realtek 8852BE), Bluetooth 5.2 |
| SKU | 821453 |
| MPN | MS-ES-B850M-WIFI-ICE |
| Brand | MAXSUN |
| Product Condition | Brand New/Unused |
| Case/MB Form Factor | Micro-ATX |
| Motherboard Chipset | AMD B850 |
| CPU Socket | AM5 |
| Memory Type | DDR5 |
| Memory Form Factor | UDIMM |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 3 Years Warranty |
| Warranty Contact | https://www.maxsun.com/ |
