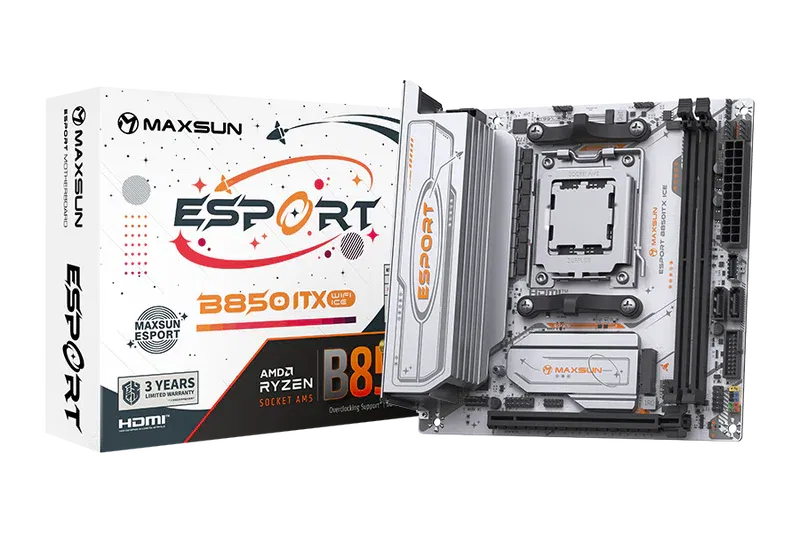

Maxsun E-sport B850 ITX/AMD AM5/2x DDR5/2x M.2
eSport B850ITX WIFI ICE
- Compact ITX Form Factor: 170 x 170mm, ideal for small builds.
- AM5 Socket Support: Compatible with Ryzen 7000/8000/9000 series processors (TDP: 88W180W).
- AMD® B850 Chipset: High-speed performance for demanding tasks.
- Memory: 2 x DDR5 slots, up to 96GB, dual-channel, with overclocking support (up to 8000MHz).
- Integrated Graphics: HDMI 1.4 (up to 4096x2160 @ 30Hz) and DP (up to 4096x2160 @ 60Hz).
- PCIe 5.0 Slot: Supports discrete GPUs (AMD/NVIDIA/Intel).
- Realtek Audio: ALC897 chip with rear/front audio support.
- Networking: 2.5G Ethernet, WiFi 6, Bluetooth 5.2, Wake-on-LAN, PXE/UEFI boot.
- Storage: 2 x M.2 slots (PCIe 4.0 x4/x2), 2 x SATA 3.0 ports.
- USB Ports: 2 x USB 5G, 4 x USB 2.0, USB Type-C 10G.
- Power: 24-pin ATX, 8-pin ATX 12V, fan headers.
- Monitoring: Voltage, temperature, and fan speed control.
| Name | Value |
|---|---|
| Audio | Integrated Realtek ALC897 audio chip with support for simultaneous front/rear audio output |
| Chipset | AMD® B850 high-speed chipset |
| Form Factor | Compact ITX 170 x 170mm |
| I/O Connectors | Rear: 2 x USB 5G, 4 x USB 2.0. Internal: 1 x USB Type-C 10G, 1 x 2-pin USB 5G, 1 x 2-pin USB 2.0. |
| Integrated CPU Graphics | Shared memory for processors with integrated graphics. 1 x HDMI 1.4 port (up to 4096x2160 @ 30Hz), 1 x DP port (up to 4096x2160 @ 60Hz |
| LAN | Realtek 8125B/D Gigabit Ethernet (10/100/1000/2500Mbit). 1 x RJ45 port with Wake-on-LAN and PXE/UEFI boot support. |
| PCI Slots | 1 x PCIe x16 5.0 slot for high-performance discrete GPUs (AMD, NVIDIA, Intel). |
| Processor Support | Ryzen 7000/8000/9000 series processors |
| RAID | |
| RAM Type/Bus/Max | 2 x U-DIMM DDR5 slots, up to 96GB capacity. Dual-channel support for improved performance. Overclocking support with speeds up to 8000MHz. |
| Socket | AM5 socket |
| Storage Interface | 2 x M.2 slots supporting PCIe 4.0 x4/x2 SSDs (2242/2280). 2 x SATA 3.0 ports for additional storage devices. |
| Warranty | Three-Year Limited Warranty |
| Weight | |
| Wireless & Bluetooth | Built-in Realtek 8852BE WiFi 6 with Bluetooth 5.2 support |
| SKU | 821452 |
| MPN | MS-ES-B850ITX-WIFI-ICE |
| Brand | MAXSUN |
| Product Condition | Brand New/Unused |
| Case/MB Form Factor | ITX |
| Motherboard Chipset | AMD B850 |
| CPU Socket | AM5 |
| Memory Type | DDR5 |
| Memory Form Factor | UDIMM |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 3 Years Warranty |
| Warranty Contact | https://www.maxsun.com/ |
