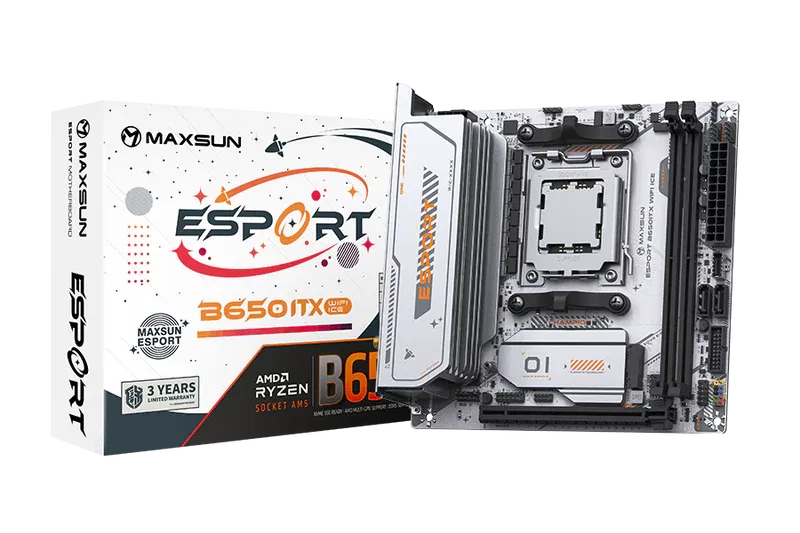

eSport B650ITX WIFI ICE
- Compact ITX Build: 170 x 170 mm, ideal for small yet powerful setups.
- AM5 Ready: Supports Ryzen 7000/8000/9000 CPUs, TDP 105-180W.
- DDR5 Performance: Dual slots, up to 96GB, overclocking to 8000 MHz.
- Next-Gen Expansion: PCIe 5.0 x16 slot and dual PCIe 4.0 M.2.
- Seamless Connectivity: WiFi 6, Bluetooth 5.2, and 2.5G LAN.
- Flexible USB Options: USB 3.2, USB 2.0, and 10G Type-C.
- Enhanced Visuals: HDMI 4K @ 30Hz, DP 4K @ 60Hz.
- Built to Perform: RGB lighting, robust cooling, and safety features.
| Name | Value |
|---|---|
| Audio | Integrated Realtek ALC897 audio chip |
| Chipset | AMD® B650 high-speed chipset |
| Form Factor | ITX (170 x 170 mm) |
| I/O Connectors | Rear I/O: 2 x USB 3.2 Gen 1, 4 x USB 2.0 |
| Integrated CPU Graphics | 1 x HDMI 1.4 (up to 4096 x 2160 @ 30Hz), 1 x DisplayPort (up to 4096 x 2160 @ 60Hz) |
| LAN | Integrated Realtek 8125BG/D LAN chip |
| PCI Slots | 1 x PCIe 5.0 x16 slot |
| Processor Support | AM5, compatible with Ryzen 7000/8000/9000 series processors |
| RAID | |
| RAM Type/Bus/Max | 2 DIMM DDR5 slots, supporting up to 96GB; Dual-channel support; Frequency Support: 4800/5200/5600(OC)/6000(OC)/6200(OC)/6400(OC)/6600(OC)/6800(OC)/7000(OC)/7200(OC)/7400(OC)/7600(OC)/7800(OC)/8000(OC) MHz |
| Socket | AM5, TDP: 105-180W |
| Storage Interface | 2 x M.2 slots (supporting 2242/2280 PCIe 4.0 x4/x2 SSDs), 2 x SATA 3.0 ports |
| Warranty | 3 Years |
| Weight | |
| Wireless & Bluetooth | Onboard Realtek 8852BE WiFi 6 with Bluetooth 5.2, 1 x onboard M.2 E-Key PCI-E 2230 slot for WiFi |
| SKU | 813132 |
| MPN | MS-eSport B650ITX WIFI ICE |
| Brand | MAXSUN |
| Product Condition | Brand New/Unused |
| Motherboard Chipset | AMD B650 |
| CPU Socket | AM5 |
| Memory Type | DDR5 |
| Memory Form Factor | DIMM |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 3 Years Warranty |
| Warranty Contact | N/A |
