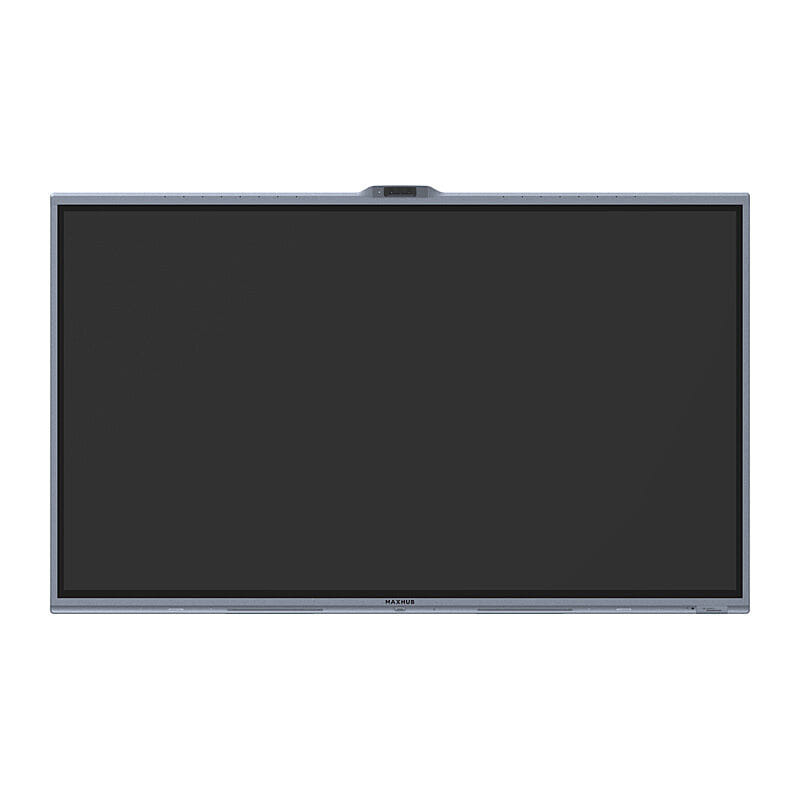

Maxhub Xboard V7 MTR 55" Interactive Touch Display

Features

• Professional 4K Display – High color accuracy, 1.5; wide color gamut, NTSC 90%; non-glare technology with 25% haze


• Seamless Collaboration – Built-in touch display and Microsoft Whiteboard for real-time collaboration


• Triple-Camera System – One wide-view lens and two tele-view lenses to provide clear views for all room participants


• AI-Powered Video Technology – Auto Framing, Speaker Tracking, Multi-Speaker Tracking, and Intelligent Focus


• Premium Audio – Built-in 16 beamforming microphone array, Built-in stereo speakers, AI-powered noise reduction, and full-duplex communication


• Flexible Content Share – Wired 4K content sharing via HDMI In; wireless sharing via wireless dongle or MAXHUB Share application


• BYOD – plug and play mode for easy switching between Teams Rooms mode and BYOD mode


• Pivot Secured and Managed – Win 11 IoT SAC with MAXHUB Pivot supported

Specifications

Display

• Model V555T


• Screen Size (Inch) 55


• Aspect Ratio 16:9


• Panel ADS


• Backlight DLED


• Brightness (Typ.) 350 nits


• Glass Zero parallax 3 mm thickness 9H Tempered


• Surface Technology 25% haze Non-glare technology


• Resolution 3840 × 2160


• Refresh Rate 60 Hz


• Contrast Ratio 1200:1 (typ.)


• Viewing Angle (H × V) 178° / 178°


• Color Gamut 90% NTSC


• Display Orientation Landscape


• Response Time 8 ms


• Life Time > 50,000 hours


• Operation Hours (Hours / Day) 16 / 7


• Display Color 1.07 B (10 bit)


• Color Accuracy Delta E ≤ 1.5


• Sensor Ambient light sensor Motion Sensor


• Pixel Pitch 0.315 (H) × 0.315 (V) mm / 0.0124 (H) × 0.0124 (V) inch


• Display Area 1209.6 (H) × 680.4 (V) mm / 47.62 (H) × 26.79 (V) inch

Connectivity

• I/O Ports (Interactive Display)


• HDMI In (2.0) × 2 To connect an external source (disabled as default, and can be enabled on MAXHUB Align app.)


• USB-A (2.0) × 1 To pair with wireless dongle-WT13M/ WT13S To connect keyboards or mouse, etc.


• Touch (USB-B 2.0) × 1 To connect a personal laptop to access to XBoard's camera & microphone and get touch back (disabled as default, and can be enabled on MAXHUB Align app.)


• Audio In × 1 To connect an external audio source to make XBoard a speaker


• Audio Out × 1 3.5 mm mini-jack, to connect an external speaker system


• RS232 × 1 9 pin


• Mic In (RJ45) × 1 To connect up to a maximum of three UC BM45 as expansion speakerphones


• Wireless Access Point Yes (for wireless presentation)

Camera

• Wide Camera 50MP × 1 DFOV 99°, HFOV 86°


• Telephoto Camera 50MP × 2 DFOV 68° (combined), HFOV 63° (combined)


• Zoom 5x hybrid zoom


• Privacy Shutter Yes

AI Features

• Auto Framing


• Speaker Tracking


• Multiple-Speaker Tracking


• Intelligent Focus

Microphone

• Quantity 16-mic array


• Pick-up Angle 180°


• Pick-up Range Best distance – 8 m / 26.2 ft Maximum distance - 15 m / 49.2 ft


• Feature Intelligent audio fence AI spatial sound AEC (Auto echo cancellation) ANC (AI noise cancellation) AGC (Auto gain control)

Audio

• Sound Channel 2.1


• Speaker Power 2×10W + 20W

Power

• Power Supply 100-240V 50/60 Hz


• Standby Power ≤ 0.5 W


• Power Consumption (Typ.) 101 W


• Power Consumption (Max.) 320 W

Touch System

• Touch Technology Intelligent Touchscreen Technology (Infrared recognition)


• Touch Point 50 points touch


• Object Recognition Range ≥ 1.5 mm


• Accuracy ± 0.5 mm


• Response Time ≤ 2.5 ms


• Writing Height ≤ 1 mm

Environmental Condition

• Operating Temperature 0°C40°C


• Storage Temperature -20°C60°C


• Operating Humidity 10%90% RH


• Storage Humidity 10%90% RH


• Altitude Below 5000 meters

Accessory (Included in the Package)

• Wireless Module AP


• HDMI Cable (3 m / 9.8 ft ) × 1


• Power Cord × 1


• Passive Stylus × 2


• Wall Mounts Kits × 1

Certification

• Safety IEC 62368-1


• EMC Class B

Warranty

• 3-Year warranty

Physical Specification

• Product Dimension (W × H × D) 1269.5 × 792.9 × 102.7 mm / 49.98 × 31.22 × 4.04 inch


• Shipping Dimension (W × H × D) 1372 × 875 × 187 mm / 54.02 × 34.45 × 7.36 inch


• Thickness of Machine and Wall Mount 130 mm / 5.12 inch


• Wall-hanging Screw Spec M8 × 25 mm


• VESA 400 × 200 mm / 15.75 × 7.87 inch


• Net Weight 26.5 kg / 58.42 lbs


• Gross Weight 37 kg / 81.57 lbs

PC Module (Slot-in)

• CPU 12th gen Intel Core i5 – 1240p


• GPU Intel® Iris® Xe Graphics eligible


• Memory 16GB DDR4 (8GB ×2)


• Storage 256GB SSD (M.2)


• Operating System Windows11 IOT


• TPM 2.0 Yes

Input & Output

• USB-A (3.0) ×3


• HDMI In (2.0) ×1 (For content share in Teams rooms mode, up to 4K resolution on local room display)


• HDMI Out × 2 (Without actual function currently, hardware reserved for possible future use)


• RJ45 × 1 (Ethernet)


• RJ45 × 1 (For optional touch console - TCP33T (available in early Q3 2025)


• Wi-Fi Wi-Fi 6


• Bluetooth Bluetooth 5.1

Accessory (Optional)

• Mobile Stand ST33M / ST23G


• Expansion Speakerphone UC BM45


• Wireless Share Dongle WT13M / WT13S


• Touch Console TCP33T (Available in Q3 2025)
