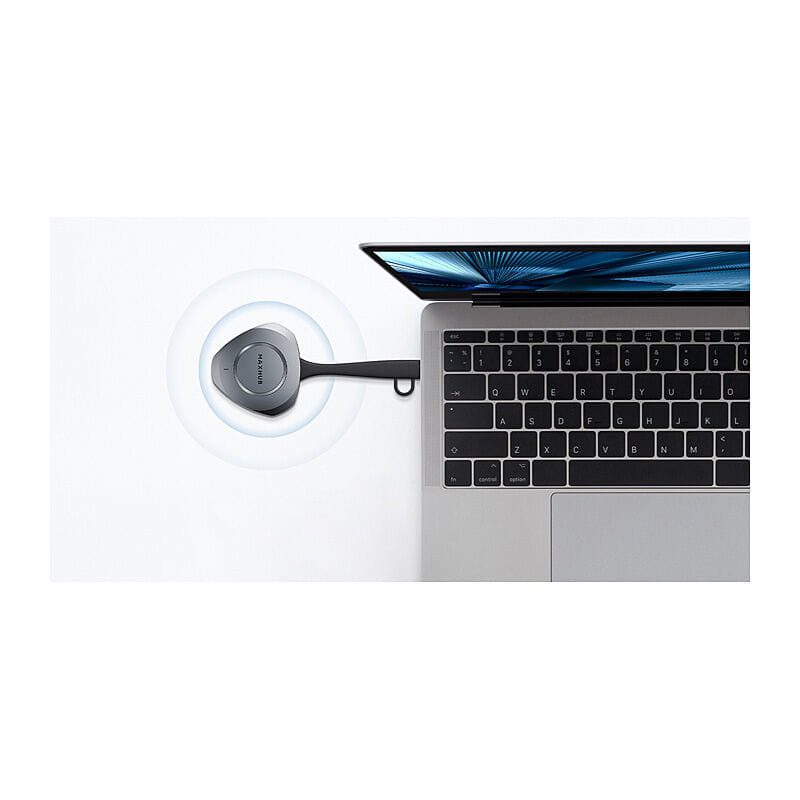

MAXHUB WT15M Wireless Dongle

Features

• Share your screen in stunning 4K: Crystal-clear 4K presentations, ultra-low latency for smooth, responsive, synced screen sharing.


• Plug and play in 3 seconds: Simply plug the dongle into your laptop and start sharing within 3 seconds.


• 1080P Wireless BYOD: Wirelessly connect personal devices to room cameras, mics and speakers. 1080P BYOD hardware decoding boosts transmission bitrate by 50% for stable, pro-grade conferencing.


• Enterprise-grade security: AES 128-bit multi-layered encryption, dynamic key negotiation and multi-factor authentication for independent connection security.

Specifications

Interface

• USB Type-C: -1


• USB Type-A (Adapter): -1

Performance

• Wireless Connection Range (Max.): 12 m / 39 ft


• Supported Operating Systems: Windows 7/10/11, macOS 10.12 or later


• Startup Time: ‰¥ 3s (USB-C), ‰¥ 10s (USB-A)


• Disconnect Time: ‰¥ 5s


• Transmission Latency (1080P): ‰¥ 90 ms


• Wireless Screen Sharing Resolution (Max.): 3840 - 2160@30 Hz


• Wireless BYOD Resolution (Max.): 1920 - 1080@30 Hz


• Wireless BYOD: Only WT15M supports BYOD


• Touchback Control: Supported

Wi-Fi

• Wi-Fi Standard: 802.11a/n/ac


• Wi-Fi Frequency: 5G Hz

Power

• Power Supply: 5 V@500 mA


• Power Consumption: 2.5 W

Physical Specification

• Dimension (L-H-D): 182.5 - 15.4 - 76.1 mm


• Shipping Dimension (L-H-D) 1pc: 196 - 28 - 110 mm


• Shipping Dimension (L-H-D) 60pcs: 420 - 350 - 360 mm


• Net Weight: 73 g


• Gross Weight 1pc: 230 g


• Gross Weight 60pcs: 15.4 kg

Indicator Light

• Connecting to Endpoint Flash White: The dongle is starting up


• Connecting to Endpoint Flash Blue: Pairing/Updating


• Connecting to Endpoint Solid Blue: Paired successfully


• Connecting to Endpoint Solid Red: Failed to pair


• Connecting to Laptop Flash White: Pairing


• Connecting to Laptop Solid White: Paired successfully


• Connecting to Laptop Solid Green: Sharing the screen

Environment

• Operating Temperature: 0?40?


• Storage Temperature: -20?60?


• Operating Humidity: 10%90%RH


• Storage Humidity: 10%90%RH


• Altitude: Below 5000 meters
