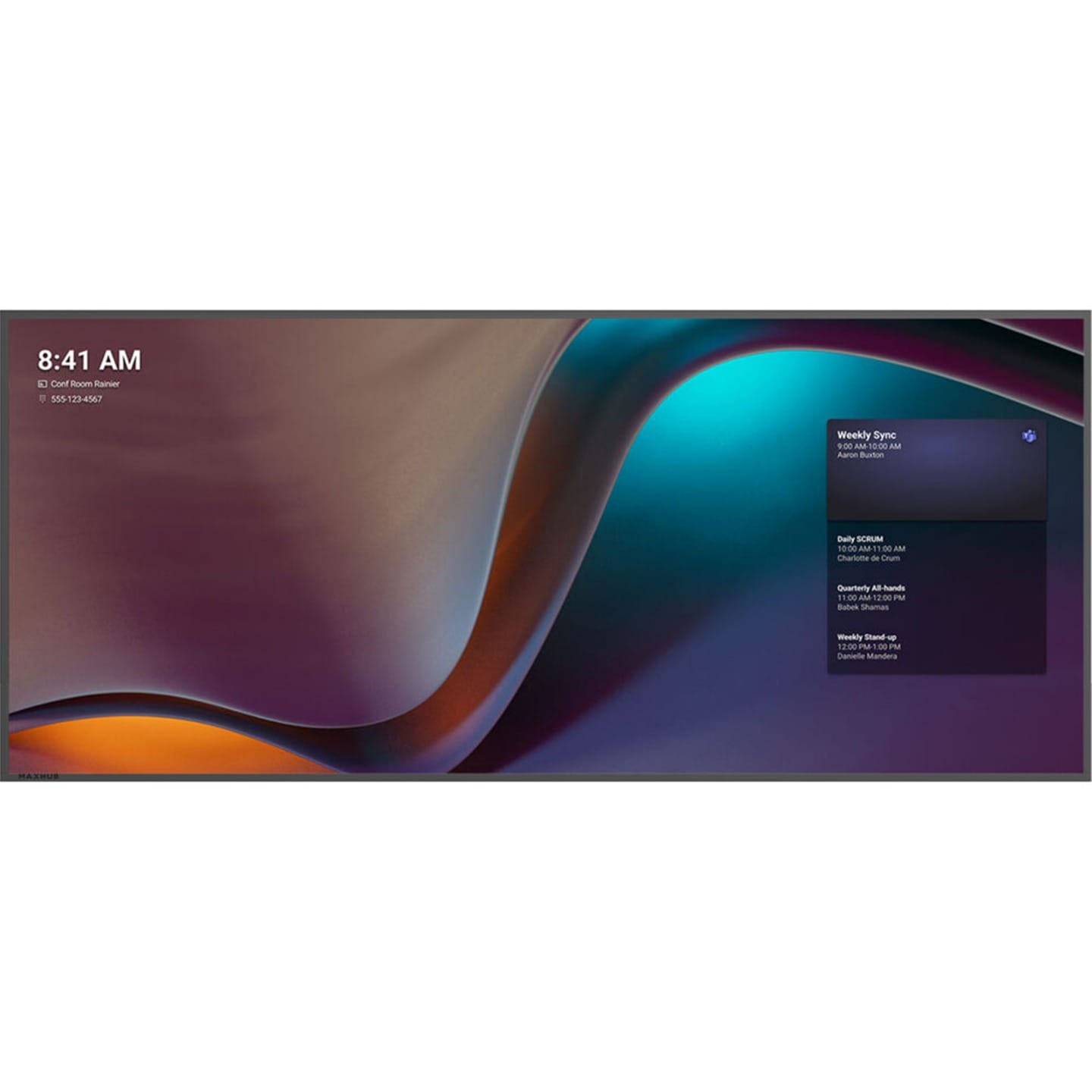

Maxhub UW92NA 92" 5K Non-Touch Panel 24/7 Ultra-wide Commercial Display
Item No:
809927
MPN:
UW92NA
$11,407.00
Payment options
Shipping Information
- Available for shipping
- Usually leaves our partner warehouse in 2-4 business days
Store Availability
- 3-5 business days at Bankstown Store
- 3-5 business days at Castle Hill Store
- 2-4 business days at Northmead Store
Shipping Estimate
Panel Type: VA; Input: DisplayPort / DP;HDMI; Brightness: 400 cd/m2; Contrast: 5,000:1 (Typ.); Response Time: 6.5ms; Refresh Rate: 60Hz; Screen Resolution: 5120 x 2160
| Display | |
| Panel type | VA |
| LED backlight A backlight is a form of illumination used in liquid crystal displays (LCDs). One type of backlight is made by LEDs, which can be either white or RGB (red green blue). White LEDs are used most often in notebooks and desktop screens, and in virtually all mobile LCD screens. RGB LEDs for backlighting are found in high-end color proofing displays such as HP DreamColor LP2480zx monitor or selected HP EliteBook notebooks, as well as newer consumer grade displays such as Dell's Studio series laptops which have an optional RGB LED display. |
 |
| LED backlighting type Backlighting is the illumination of a screen e.g. LCD (liquid crystal display). There are several types of backlighting with LEDs, e.g. full array, edge lit. | Direct-LED |
| Display diagonal Size of the display for this product, measured diagonally, usually in inches. | 2.34 m (92") |
| Display technology The technology used in the display e.g. plasma, LED. | LCD |
| Display resolution The number of distinct pixels in each dimension that can be displayed. It is usually quoted as width × height, with the units in pixels: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. The higher the number of pixels, the sharper the image. | 5120 x 2160 pixels |
| Display brightness Brightness is the amount of radiating light emitted from the screen. The brightness rating is measured in candellas per square meter, commonly known as 'nits'. | 600 cd/m² |
| HD type Type of supported High Definition (e.g. Full HD, 4K Ultra HD). | WUHD |
| Touchscreen A screen of a laptop, smartphone, etc., that responds to touch so you can control the interface using your fingers. |
 |
| Response time The response time is the time difference between the moment that a source (for example a video card) sends a signal and that equipment (for example a monitor) receives or display the signal. (Used abbreviations: R/F = Rise and Fall.) | 6.5 ms |
| Viewing angle, horizontal Maximum horizontal angle at which a display can be viewed with acceptable visual performance. | 178° |
| Viewing angle, vertical Maximum vertical angle at which a display can be viewed with acceptable visual performance. | 178° |
| Panel life The length of time that the panel can be used for. | 50000 h |
| Native refresh rate | 50 Hz |
| Haze rate | 25% |
| Ports & interfaces | |
| HDMI ports quantity The number of sockets (ports) for HDMI connections. HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor, video projector, digital television, or digital audio device. HDMI is a digital replacement for existing analog video standards. | 5 |
| HDMI version | 2.0/2.1 |
| HDMI input ports quantity | 4 |
| HDMI output ports quantity | 1 |
| DVI port Digital Visual Interface (DVI) is a video display interface to connect a video source to a display device, such as a computer monitor. |
|
| DisplayPorts quantity Number of DisplayPorts. A DisplayPort is a digital display interface developed by the Video Electronics Standards Association (VESA). The interface is primarily used to connect a video source to a display device such as a computer monitor, though it can also be used to carry audio, USB, and other forms of data. | 1 |
| DisplayPorts in | 1 |
| USB port The device features a socket into which a USB cable can be plugged. |
|
| USB ports quantity | 5 |
| USB version Universal Serial Bus (USB) is an industry standard developed in the mid-1990s that defines the interface used for connection, communication and power supply between computers and electronic devices. Every new version - for example 1.1, 2.0, 3.0 - is much faster than the previous one. | 2.0/3.2 Gen 1 (3.1 Gen 1) |
| USB connector type The type of USB connector/port that this product has. | USB Type-A, USB Type-C |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity Number of USB 3.0 (3.1 Gen 1) ports with Type-C connector. USB 3.0 (3.1 Gen 1) is USB interface version which supports transfer rate up to 5 Gbit/s (SuperSpeed). USB Type-C connector has symmetrical design architecture and compatible with Thunderbolt 3 interface. | 1 |
| Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable. |
|
| Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. | 2 |
| Wi-Fi Popular technology that allows an electronic device to exchange data or connect to the internet wirelessly using radio waves. |
|
| Wi-Fi standards The type of wireless local area network (LAN). It can be ad-hoc, where units in a network communicate peer-to-peer, or Infrastructure, where units communicate with each other via an access point A LAN interconnects computers in a small area e.g. home, school or office. | Wi-Fi 6 (802.11ax) |
| RS-232 interface |
|
| OPS module slot |
|
| Audio | |
| Built-in speaker(s) The device contains speaker(s) to produce sound. |
|
| RMS rated power RMS (Root mean square) is a measure of the continuous power required by a device, in particular audio amplifiers and loudspeakers. | 40 W |
| Audio output channels An audio output channel is an electric circuit which acts as a path for a signal produced by a device. A device may have several audio output channels. | 2.1 channels |
| Design | |
| Product design The creation of a plan or convention for the construction of an object or a system. | Digital signage flat panel |
| Placement supported Where the product can be placed e.g. indoor/outdoor, horizontal/vertical. | Indoor |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| VESA mounting |
|
| Panel mounting interface The product can be used wih VESA mounting interfaces. | 800 x 600 mm |
| Performance | |
| Purpose What the product is used for. | Commercial |
| International Protection (IP) code The IP code classifies and rates the degree of protection provided against the intrusion (including body parts such as hands and fingers), dust, accidental contact, and water by mechanical casings and electrical enclosures. It is published by the International Electrotechnical Commission (IEC). The digits (characteristic numerals) indicate conformity with the conditions summarized in the tables below. Where there is no protection rating with regard to one of the criteria, the digit is replaced with the letter X. an electrical socket rated IP22 is protected against insertion of fingers and will not be damaged or become unsafe during a specified test in which it is exposed to vertically or nearly vertically dripping water. Another example is the Sony Xperia Z Ultra, one of the first cellular phones to be IP-rated; it is rated at IP58 and marketed as "dust resistant" and can be "immersed in 1.5 meter of freshwater for up to 30 minutes". | IP5X |
| Power | |
| Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage. | 320 W |
| Power consumption (max) The maximum amount of power used by the device. | 530 W |
| AC input voltage The voltage of the AC electricity that is inputted into the product. | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Computer system | |
| Computer system |
|
| Built-in processor Whether or not a processor is built into the device. |
|
| Processor architecture | ARM Cortex-A76+Cortex-A55 |
| Processor cores The number of central processing units ('cores') in a processor. Some processors have 1 core, others have 2 (e.g. Intel Core Duo) or more (e.g. the Intel Xeon E7-2850 has 10 cores). | 8 |
| Internal memory A computer's memory which is directly accessible to the CPU. | 8 GB |
| On-board graphics card model "Graphic adapter" is the hardware that produces images on a display. "On-board" means that the graphics adapter is intergrated inside the motherboard. | ARM Mali-G610 MP4 |
| Internal storage capacity The amount e.g of data which can be stored inside the device. | 64 GB |
| Operating system installed Type of operating system on a device e.g. IOS on Apple devices, Android for mobile devices. | Android |
| Operating system version The version of the operating system used e.g. 4.1, 4.2 for Android. | 13 |
| Google applications | Google Chromecast |
| Weight & dimensions | |
| Display width | 2182 mm |
| Display depth | 944 mm |
| Display height | 85 mm |
| Display weight | 43.4 kg |
| Packaging data | |
| Package width The distance from one side of the packaging to the other. | 2360 mm |
| Package depth The distance from the front to the back of the packaging. | 1072 mm |
| Package height The distance from the top to the bottom of the packaging. | 225 mm |
| Package weight Weight of the packaged product. | 62.6 kg |
| Packaging content | |
| Remote control included Component of an electronics device, most commonly a television set, DVD player and home theater systems originally used for operating the device wirelessly from a short line-of-sight distance. |
|
| Cables included | AC, HDMI |
| Mounting kit |
|
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 40 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 60 °C |
| Storage relative humidity (H-H) | 10 - 90% |
| Technical details | |
| Sustainability certificates | ENERGY STAR |
| SKU | 809927 |
| MPN | UW92NA |
| Brand | Maxhub |
| Product Condition | Brand New/Unused |
| Screen Size (Inches) | 95.00 Inch |
| Refresh Rate (Hz) | 60Hz |
| Screen Resolution | 5120x2160 (UW5K) |
| Input | DisplayPort / DP, HDMI |
| Stock Availability | Available for Shipping |
| Product Use | Business |
| Warranty Period | 3 Years Warranty |
| Warranty Contact | https://www.maxhub.com/ |
