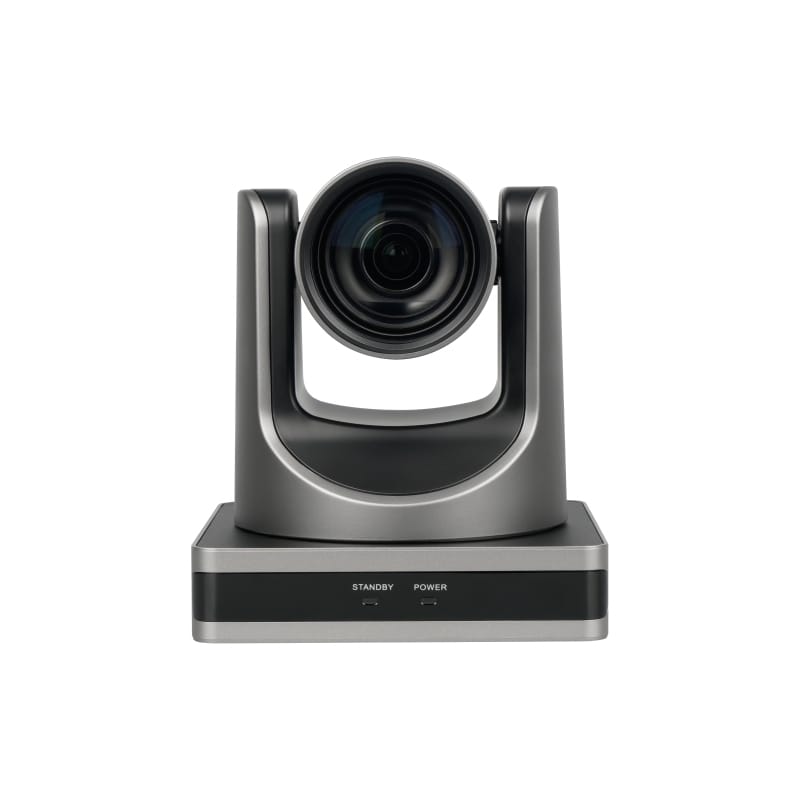

MAXHUB UC Camera 1080p PTZ
| Camera | |
| Camera type There are a number of common types of digital cameras: compact cameras, bridge cameras, mirrorless interchangeable-lens cameras (MILC) and single lens reflex (SLR) cameras. Bridge cameras 'bridge the gap' between the low-end compact and high-end professional (SLR) cameras. Also MILCs populate this mid-segment by combining the larger sensors and interchangeable lenses of DSLRs with the live-preview viewing system of compact cameras. | Single camera |
| Megapixel (approx.) The number (in millions) of light-sensitive picture elements known as pixels actually used by the camera's image sensor (CCD) to record light, and which are reflected to the final number of recorded pixels stored on the memory card. | 2.07 MP |
| Sensor type A sensor is a convertor than measures a physical quality (light, temperature etc.) and displays this electronically on a device. | CMOS |
| Optical sensor size Optical sensors are electronic detectors that convert light, or a change in light, into an electronic signal. They are used in many industrial and consumer applications e.g. lamps that turn on automatically in response to darkness. Optical sensors come in many sizes. | 25.4 / 2.8 mm (1 / 2.8") |
| Optical zoom Indicates the optical zoom capacity, which is the number of times that the picture can be enlarged with the optics of the camera. | 12x |
| Digital zoom Indicates the digital zoom capacity, the number of times that the picture is enlarged thanks to digital technology. | 16x |
| Horizontal field of view | 72.5° |
| Vertical field of view | 44.8° |
| Minimum illumination Also known as light sensitivity, this is the smallest amount of light needed for the camera to produce an image of useable quality. | 0.5 lx |
| White balance Technique in photography and image processing, which involves a global adjustment of the intensities of the colors (typically red, green, and blue primary colors). An important goal of this adjustment is to render specific colors – particularly neutral colors including white – correctly. | Auto, Indoor, Manual, One push, Outdoor |
| PTZ control |
 |
| PTZ protocols | ONVIF |
| 3D NR (Noise Reduction) |
|
| Video | |
| HD type Type of supported High Definition (e.g. Full HD, 4K Ultra HD). | Full HD |
| Maximum video resolution This is the maximum resolution of video images. Resolution is a measure of the degree of detail visible. | 1920 x 1080 pixels |
| Maximum frame rate This is the maximum frame rate, also known as frame frequency and frames per second (FPS). It is the frequency (rate) at which an imaging device produces unique consecutive images called frames. The term applies equally well to film and video cameras, computer graphics, and motion capture systems. Frame rate is most often expressed in frames per second (FPS) and is also expressed in progressive scan monitors as hertz (Hz). | 60 fps |
| Resolution at capture speed | 1280x720@50fps, 1280x720@60fps, 1920x1080@50fps, 1920x1080@60fps |
| Supported video modes The video modes that can be displayed by the device. | 720p, 1280p |
| Video formats supported The type of video formats that can be used by this device. | H.264 |
| Design | |
| Product colour The colour e.g. red, blue, green, black, white. | Grey |
| Mounting type Type of mounting e.g. wall mounting. | Stand/Wall mounting |
| Tilt angle range | 2.7 - 31.5° |
| Pan range | 2.7 - 35.7° |
| Ports & interfaces | |
| HDMI version | 1.4 |
| USB 2.0 ports quantity Number of USB 2.0 ports (connecting interfaces) in the device. USB 2.0 was released in April 2000 (now called "Hi-Speed"), adding higher maximum signaling rate of 480 Mbit/s (effective throughput up to 35 MB/s or 280 Mbit/s), USB 2.0 ports are usually black. | 1 |
| USB 2.0 Type-C ports quantity | 1 |
| RS-232 ports The number of sockets (ports) for RS-232. An RS-232 serial port was once a standard feature of a personal computer, used for connections to modems, printers, mice, data storage, uninterruptible power supplies, and other peripheral devices. Now it has been largely replaced by USB and other ports. | 1 |
| RS-485 ports | 1 |
| Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. | 1 |
| DC-in jack The socket/plug where the DC electricity supply connects to the device. |
|
| Power | |
| Power source type What the power source is. | DC |
| DC input voltage | 12 V |
| Input current | 1 A |
| Power consumption (max) The maximum amount of power used by the device. | 12 W |
| Packaging content | |
| Remote control included Component of an electronics device, most commonly a television set, DVD player and home theater systems originally used for operating the device wirelessly from a short line-of-sight distance. |
|
| Cables included | USB |
| Screws included |
|
| Mounting kit |
|
| System requirements | |
| Windows operating systems supported Windows vesions wich can be used with the device. | Windows 10, Windows 7, Windows 8 |
| Mac operating systems supported Mac operating systems e.g. OS X can be used with the device. |
|
| Mobile operating systems supported The operating systems e.g. Android, iOS, that can be used with the mobile device. | Android |
| Linux operating systems supported 8 RT. Linux (9.4, 9.5), Red Hat Enterprise Linux 5.0 (supported with a pre-built package); SUSE Linux (10.3, 11.0, 11, 11.1, 11.2), Fedora (9, 9.0, 10, 10.0, 11.0, 11, 12, 12.0), Ubuntu (8.04, 8.04.1, 8.04.2, 8.10, 9.04, 9.10, 10.04), Debian (5.0, 5.0.1, 5.0.2, 5.0.3) |
|
| Technical details | |
| Warranty period | 3 year(s) |
| Network | |
| Bit rate range | 98 - 256 Kbit/s |
| Supported network protocols Network protocols tested as compatible with this product e.g. FTP,HTML, POP. | TCP/IP, HTTP, RTSP, RTMP, ONVIF, DHCP, Multicast |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 144 mm |
| Depth The distance from the front to the back of something. | 167.9 mm |
| Height The measurement of the product from head to foot or from base to top. | 144 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 1.41 kg |
| Packaging data | |
| Package width The distance from one side of the packaging to the other. | 230 mm |
| Package depth The distance from the front to the back of the packaging. | 250 mm |
| Package height The distance from the top to the bottom of the packaging. | 230 mm |
| Package weight Weight of the packaged product. | 2.5 kg |
| SKU | 706691 |
| MPN | UCP15 |
| Brand | Maxhub |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.maxhub.com/ |
