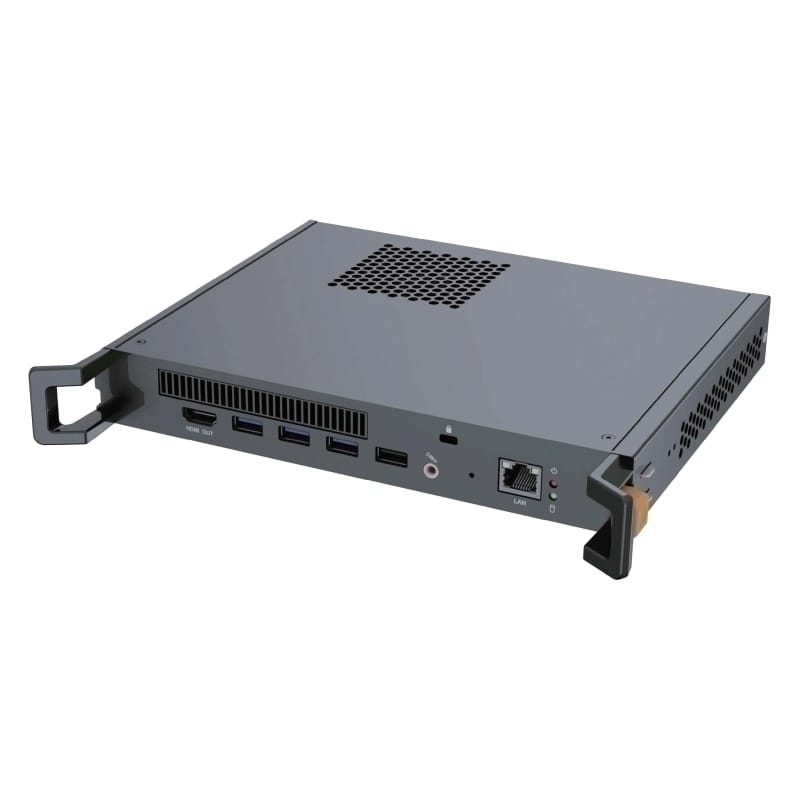

Maxhub PC Module i5 V6 Corp

Processor
Processor manufacturer The manufacturer that produced the processor.	Intel
Processor family A family of processors is a group of processors produced by one company over a short period of time e.g. Intel Pentium processors.	Intel® Core™ i5
Processor generation	10th gen Intel® Core™ i5

Memory
Internal memory A computer's memory which is directly accessible to the CPU.	8 GB
Internal memory type The type of internal memory such as RAM, GDDR5.	DDR4-SDRAM

Storage
Total storage capacity The total amount of data that can be stored on the device.	128 GB
Optical drive type An optical drive uses laser to read optical discs such as CDs, DVDs and Blu-Ray. Some types of optical drive are: CD ROM drive, CR-RW (CD writer) drive, DVD-ROM.

Graphics
Discrete graphics card
On-board graphics card Graphics hardware which is built into the motherboard or CPU, as opposed to a separate graphics adapter (video card). On-board graphics uses CPU and RAM for graphics processing.
On-board GPU manufacturer	Intel
On-board graphics card family	Intel® UHD Graphics
On-board graphics card model "Graphic adapter" is the hardware that produces images on a display. "On-board" means that the graphics adapter is intergrated inside the motherboard.	Intel® UHD Graphics

Network
Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable.

Ports & interfaces
USB 2.0 ports quantity Number of USB 2.0 ports (connecting interfaces) in the device. USB 2.0 was released in April 2000 (now called "Hi-Speed"), adding higher maximum signaling rate of 480 Mbit/s (effective throughput up to 35 MB/s or 280 Mbit/s), USB 2.0 ports are usually black.	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
HDMI ports quantity The number of sockets (ports) for HDMI connections. HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor, video projector, digital television, or digital audio device. HDMI is a digital replacement for existing analog video standards.	1
Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet.	1
Microphone in The socket where a microphone is connected to the device.

Design
Chassis type The type of rigid framework onto which is the hosuing for device components.	Mini PC
Placement supported Where the product can be placed e.g. indoor/outdoor, horizontal/vertical.	Horizontal
Cable lock slot Holes on the edge of devices through which a cable lock can be passed, so the device can be locked to a desk etc.
Cable lock slot type	Kensington
Product colour The colour e.g. red, blue, green, black, white.	Black

Performance
Market positioning Under which category can the device be positioned in the market, e.g. camera phone.	OPS
Trusted Platform Module (TPM)
Trusted Platform Module (TPM) version	2.0

Software
Operating system architecture The way in which the operating system of a computer/smartphone (32-bit/64-bit) is set up.	64-bit
Operating system installed Type of operating system on a device e.g. IOS on Apple devices, Android for mobile devices.	Windows 10 IoT

Power
Power supply input voltage	18 V
Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage.	106.5 W
Power consumption (standby) The amount of electricity that is consumed when the product is on standby.	1.1 W

Operational conditions
Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated.	-10 - 55 °C
Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored.	-20 - 60 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	10 - 90%

Weight & dimensions
Width The measurement or extent of something from side to side.	202 mm
Depth The distance from the front to the back of something.	30 mm
Height The measurement of the product from head to foot or from base to top.	133.5 mm
Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.	1.32 kg
Package width The distance from one side of the packaging to the other.	314 mm
Package depth The distance from the front to the back of the packaging.	70 mm
Package height The distance from the top to the bottom of the packaging.	256 mm
Package weight Weight of the packaged product.	1.75 kg

Display
Display included This product includes a display.
