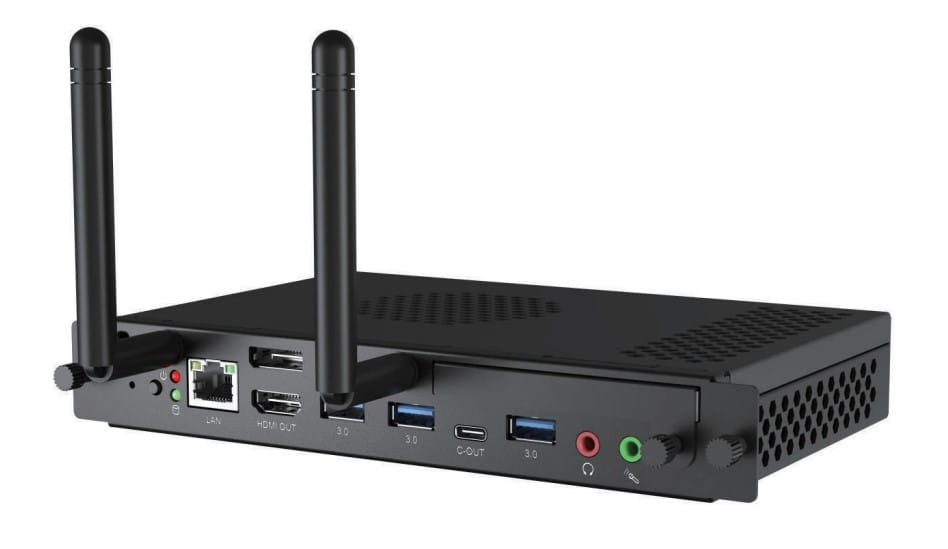

Maxhub OPS72A-i5 PC Module

Processor
Processor manufacturer The manufacturer that produced the processor.	Intel
Processor family A family of processors is a group of processors produced by one company over a short period of time e.g. Intel Pentium processors.	Intel® Core™ i5
Processor generation	12th gen Intel® Core™ i5
Processor cores The number of central processing units ('cores') in a processor. Some processors have 1 core, others have 2 (e.g. Intel Core Duo) or more (e.g. the Intel Xeon E7-2850 has 10 cores).	12
Processor threads	16
Processor boost frequency The turbo boost is an automatic, managed accelleration of the processor when one of the cores is overloaded.	4.4 GHz
Processor frequency The speed that the microprocessor executes each instruction or each vibration of the clock. The CPU requires a fixed number of clock ticks, or cycles, to execute each instruction. The faster the clocks rate, the faster the CPU, or the faster it can execute instructions. Clock Speeds are usually determined in MHz, 1 MHz representing 1 million cycles per second, or in GHz, 1 GHz representing 1 thousand million cycles per second. The higher the CPU speed, the better a computer will perform.	1.7 GHz
Processor cache	12 MB
Processor base power	28 W

Memory
Internal memory A computer's memory which is directly accessible to the CPU.	16 GB
Internal memory type The type of internal memory such as RAM, GDDR5.	DDR4-SDRAM
Memory clock speed The frequency at which the memory (e.g. RAM) runs.	3200 MHz
Memory channels	Dual-channel

Storage
Total storage capacity The total amount of data that can be stored on the device.	256 GB
Storage media Used for the storage of data e.g. HDD (hard disk drive), SSD (solid-state drive).	SSD
Optical drive type An optical drive uses laser to read optical discs such as CDs, DVDs and Blu-Ray. Some types of optical drive are: CD ROM drive, CR-RW (CD writer) drive, DVD-ROM.
Number of storage drives supported How many storage drives can be fit into the product at once.	1
Total SSDs capacity	256 GB
Number of SSDs installed	1
SSD capacity The Solid State Drive's data storage capacity.	256 GB

Graphics
Discrete graphics card
On-board graphics card Graphics hardware which is built into the motherboard or CPU, as opposed to a separate graphics adapter (video card). On-board graphics uses CPU and RAM for graphics processing.
Discrete graphics card model A graphics adapter (often known as a video card) generates images for a display. A discrete graphics adapter plugs into the motherboard, and usually produces much better graphics than an integrated graphics adapter. There are various models of discrete graphics adapters.	Not available
On-board GPU manufacturer	Intel
On-board graphics card family	Intel Iris Xe Graphics
On-board graphics card model "Graphic adapter" is the hardware that produces images on a display. "On-board" means that the graphics adapter is intergrated inside the motherboard.	Intel Iris Xe Graphics

Network
Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable.
Ethernet LAN data rates The different speed levels of the Ethernet LAN connection.	10,100,1000 Mbit/s
Wi-Fi Popular technology that allows an electronic device to exchange data or connect to the internet wirelessly using radio waves.
Top Wi-Fi standard Connection of this device is done via Wi-Fi in a high standard.	Wi-Fi 6 (802.11ax)
Wi-Fi standards The type of wireless local area network (LAN). It can be ad-hoc, where units in a network communicate peer-to-peer, or Infrastructure, where units communicate with each other via an access point A LAN interconnects computers in a small area e.g. home, school or office.	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Antenna type Type of antenna, also known an aerial, e.g. external, internal.	2x2
Bluetooth Bluetooth is a low-power radio technology developed to replace the cables and wires currently used to link or connect electronic devices such as personal computers, printers, and a wide variety of handheld devices including mobile phones. Because it uses radio-wave connectivity, a Bluetooth-enabled device has a constant, established connection to whatever browser it uses. This saves the user the trouble of logging on to check for emails or news updates, for example.
Bluetooth version The type of bluetooth technology in the product e.g. Bluetooth Smart (v4.0).	5.2

Ports & interfaces
USB 2.0 ports quantity Number of USB 2.0 ports (connecting interfaces) in the device. USB 2.0 was released in April 2000 (now called "Hi-Speed"), adding higher maximum signaling rate of 480 Mbit/s (effective throughput up to 35 MB/s or 280 Mbit/s), USB 2.0 ports are usually black.	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	5
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity Number of USB 3.0 (3.1 Gen 1) ports with Type-C connector. USB 3.0 (3.1 Gen 1) is USB interface version which supports transfer rate up to 5 Gbit/s (SuperSpeed). USB Type-C connector has symmetrical design architecture and compatible with Thunderbolt 3 interface.	1
HDMI ports quantity The number of sockets (ports) for HDMI connections. HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor, video projector, digital television, or digital audio device. HDMI is a digital replacement for existing analog video standards.	1
HDMI version	2.0
DisplayPorts quantity Number of DisplayPorts. A DisplayPort is a digital display interface developed by the Video Electronics Standards Association (VESA). The interface is primarily used to connect a video source to a display device such as a computer monitor, though it can also be used to carry audio, USB, and other forms of data.	1
Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet.	1
Microphone in The socket where a microphone is connected to the device.
Line-out

Design
Product colour The colour e.g. red, blue, green, black, white.	Black

Performance
Product type The sub-category of the product.	Mini PC

Software
Operating system architecture The way in which the operating system of a computer/smartphone (32-bit/64-bit) is set up.	64-bit
Compatible operating systems List of desktop operating systems tested as compatible with this product.	Windows 10/11

Power
Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage.	80.7 W
Power consumption (standby) The amount of electricity that is consumed when the product is on standby.	2.9 W

Operational conditions
Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated.	-10 - 45 °C
Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored.	-20 - 60 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	10 - 90%

Weight & dimensions
Width The measurement or extent of something from side to side.	119 mm
Depth The distance from the front to the back of something.	180 mm
Height The measurement of the product from head to foot or from base to top.	30 mm
Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.	600 g
Package width The distance from one side of the packaging to the other.	192 mm
Package depth The distance from the front to the back of the packaging.	267 mm
Package height The distance from the top to the bottom of the packaging.	72 mm
Package weight Weight of the packaged product.	970 g

Display
Display included This product includes a display.
