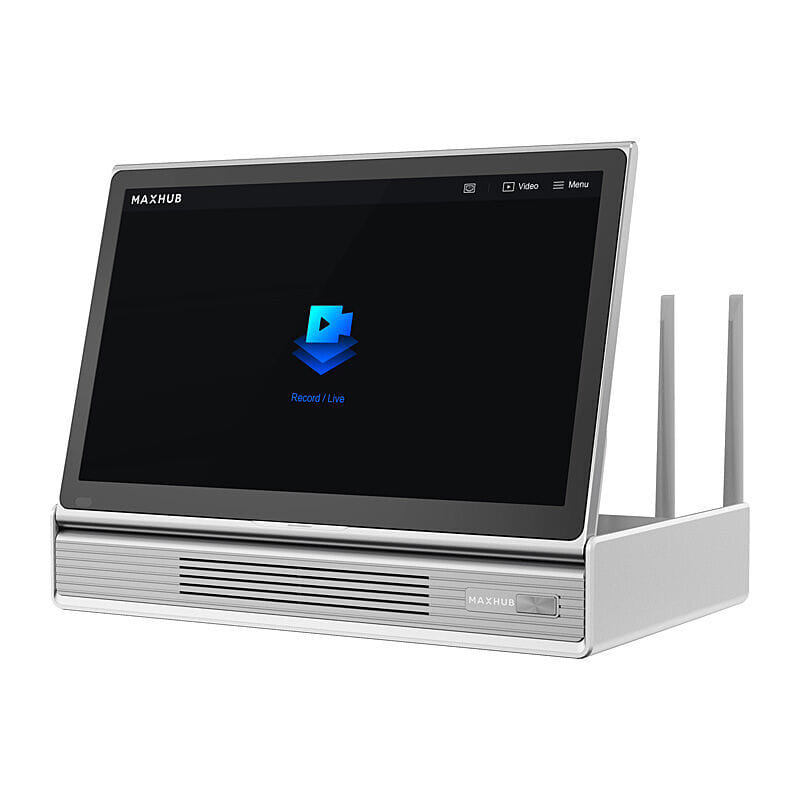

Maxhub Mobile Capture Host

Features

• Intuitive Touch Control: Manage your cameras and switch scenes with ease.  Responsive touchscreen interface for greater operational efficiency


• Wireless Deployment: Flexible setup without complex cabling


• Extended Battery Endurance: Enjoy up to 6 hours of continuous use. Automatic overheat protection for peace of mind during long sessions


• High-Reliability Storage: Featuring durable SSD storage. Withstands frequent movement and rough handling to keep your data safe and sound

Specifications

Display

• Operating System: Linux


• Diagonal Size (inch): 15.6


• Brightness: 250 nits


• Resolution: 1920 - 1080


• Backlight Unit: ELED


• Color Gamut: 72% NTSC


• Viewing Angle: > 170Deg


• Refresh Rate: 60 Hz


• Mean Time Between Failures (MTBF): ? 250,000 Hours


• Glass: 7H Tempered


• Screen Type: Capacitive touch screen


• Touch Point: 10 Points touch

System

• CPU: A76-4 + A55-4


• GPU: Mali-G610 MP4


• NPU: 6 TOPs


• RAM: 8GB


• Storage: 512GB SSD

Video I/O Port

• Video Recording Resolution: 4K@30fps, 1080p, 720p, VGA, QVGA


• Video Recording Frame Rate: 60fps/ 30fps/ 25fps


• Video Recording Format: MP4


• Multi-Channel Recording: Up to 7 channels


• Live Streaming Channel: Up to 3 RTMP channels, 1080p


• Live Streaming Resolution: 1080p, 720p, VGA, QVGA

Ports

• DC In -1


• RJ45 -5 (one for Internet, one for Mic in, three for PoE)


• HDMI Out -3


• HDMI In (HDMI 1.4) -2


• USB-A 3.0 -2


• USB Type-C -1


• RS422 -1


• Mic In -1


• Line In -1


• Line Out -2


• Power Button -1

Wireless Connection

• Frequency: 2.4GHz, 5GHz, 5.8GHz


• Wi-Fi: 802.11ac/b/g/n/a/ax (Wi-Fi 6 supported)


• Bluetooth: 5.2

Electrical Parameters

• Power Adapter: 100-24050/60HZ 2.0A Max


• Power Supply: DC 24V 4.0A


• Power Consumption (Max): 60W


• Power Consumption (Standby): 0.5W

Physical Parameters

• Dimension (Raised Position, L - W - D): 385.2 - 255 - 290.8 mm


• Dimension (Lowered Position, L - W - D): 385.2 - 255 - 70 mm


• Shipping Dimension (W - H - D): 487 - 163 - 358 mm


• Net Weight: 6.5 Kg


• Gross Weight: 8.3 Kg

Environmental Conditions

• Operating Temperature: 0DegC 40DegC


• Storage Temperature: -20DegC 60DegC


• Operating Humidity: 10% 90% RH


• Storage Humidity: 10% 90% RH


• Altitude: Below 5000 meters

Accessories

• Power Adapter -1


• Power Cable -1


• Phoenix Connector -2


• Antenna Adapter Cable -1


• External Antenna -5
