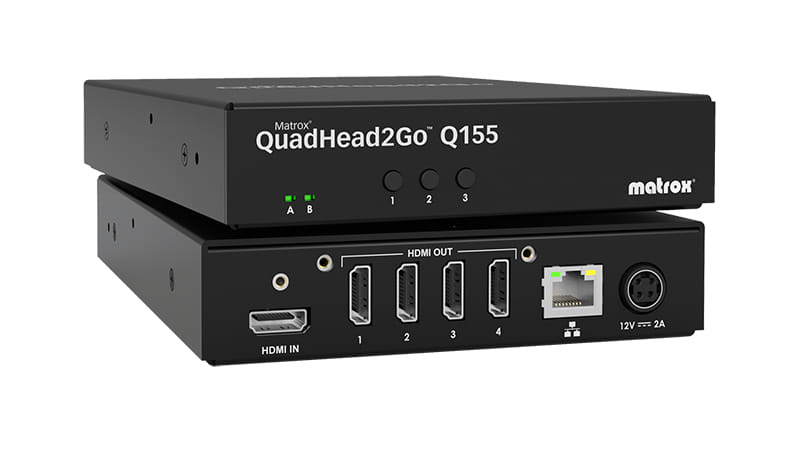

Matrox QuadHead2Go Q155 Multi-Monitor Controller Appliance / Q2G-H4K, Black, Metal, Regulatory/environmental compliance: EMC Class A: FCC, CE, KC, RCM, VCCI, 1000 Mbit/s, 10/100Base-T(X), 1 GB
Matrox QuadHead2Go Q155 Multi-Monitor-Controller Appliance
Product Info:
Capable of driving four displays from one signal, the Matrox QuadHead2Go Q155 multi-monitor controller appliance provides complete video wall scalability and flexibility. This system-independent appliance is designed to power any video wall configuration of any possible dimension, from any HDMI video source-reliably delivering flawless image quality across expansive, artistic video wall displays, suited for digital signage in a wide range of industries. QuadHead2Go s on-device buttons and pre-set configurations ensure an out-of-the-box, trouble-free installation experience.
Drive up to four pristine quality Full HD displays from a single video signal-of up to 4Kp60 and 8Kx8K-at full RGB 8:8:8 and YUV 4:4:4 color support.
Expand to a video wall configuration of any size by using multiple QuadHead2Go units.
Create a video wall from any content source, including professional graphics cards and integrated GPUs, video wall controllers, digital signage players, media players, decoders, laptops, NUCs, set-top boxes, gaming consoles, and more.
Design modern and artistic video wall layouts with free rein-each output can have its own resolution, be independently rotated (90, 180, and 270 degrees), cropped, upscaled, downscaled, and positioned anywhere.
Fashion countless forms of setups-arrange displays in 4x1, 1x4, 2x2, 3x1, 1x3, 2x1, or 1x2 rectangular configurations, in portrait or landscape, or other non-rectangular/artistic configurations-and combine/scale them to create large-scale, captivating vid
Simplify installation with guaranteed out-of-the-box plug and play when using the default configuration of 2x2 in landscape-set up without installing software or even connecting a video source.
Design any custom configuration/array with the intuitive Matrox PowerWall software.
Ensure compatibility with professional-grade graphics cards and media players with HDMI support.
Eliminate physical handling by controlling and updating the units remotely from anywhere on the network (LAN).
Select and set the display layout by cycling through pre-set configurations* using an on-device button-there is no need to install software when using a pre-set configuration.
Set up display positions, fine tune bezels, and also troubleshoot with ease, by accessing the built-in or pre-saved images directly from the appliance, together with display identification information that includes the ID number and the resolution of each
Tech Specs:
Connector : RJ45
Depth : 181.10 mm
Height : 31.75 mm
Memory : 1 GB
Width : 139.70 mm
Form Factor : Appliance (p/n: Q2G-H4K)
Audio Format : AAC, PCM, Stereo, and Mono
Regulatory Compliance : FCC, CE, KC, RCM, EMC
Control Interface : 1 x 10/100/1000 Base-T RJ45 Ethernet port
Standard : Ethernet 10/100/1000 Base-T, Auto-Detect, Half/Full-Duplex
DC Voltage : 12 Volts
Video Scaling : Matrox s advanced multi-channel Video Scaling Engine
Audio Sampling Rate : 44.1 KHz and 48 KHz, 16-bit stereo
Supported Configurations : 2x2 (default), 4x1, 3x1, 2x1, 1x2, 1x3, 1x4, Clone in both landscape and portrait modes and other non-rectangular/artistic configurations
Product Weight : 0.49 kg
Maximum Output Resolutions : 1920x1080 at 60Hz, 1920x1080 at 30Hz, 1920x1200 at 60Hz, 1920x1200 at 30Hz Other output resolutions are supported
Active Power : 42 Watt
Warranty (Length/Type) : 3 Years
Operating Temperature (Maximum) : 45 C
Operating Temperature (Minimum) : 0 C
Firmware Update : Via network interface
IP addressing : DHCP (default) and Static IP
AC Voltage (Minimum) : 100 Volts
AC Voltage (Maximum) : 240 Volts
IP Version : IPv4/IPv6
Output Color Space : RGB: 8:8:8 (24 bits per pixel)
Input connector (video and audio support) : 1 x HDMI
Maximum input resolutions : 3840x2160 at 60Hz, 3840x2160 at 30Hz, 7680x1080 at 60Hz, 7680x1080 at 30Hz, 1920x4320 at 60Hz, 1920x4320 at 30Hz Other input resolutions including 8Kx8K are supported
Output connector (video and audio support) : 4 x HDMI
Command and control protocols : HTTP/HTTPS, UPnP (discovery), mDNS and DNS-SD (discovery)
Input color space : RGB: 8:8:8 (24 bits per pixel), YUV: 4:4:4, 4:2:2 (8 bits per component)
Systems Controlled - Audio
Systems Controlled - Video
Warranty - Yes
Product Info:
Capable of driving four displays from one signal, the Matrox QuadHead2Go Q155 multi-monitor controller appliance provides complete video wall scalability and flexibility. This system-independent appliance is designed to power any video wall configuration of any possible dimension, from any HDMI video source-reliably delivering flawless image quality across expansive, artistic video wall displays, suited for digital signage in a wide range of industries. QuadHead2Go s on-device buttons and pre-set configurations ensure an out-of-the-box, trouble-free installation experience.
Drive up to four pristine quality Full HD displays from a single video signal-of up to 4Kp60 and 8Kx8K-at full RGB 8:8:8 and YUV 4:4:4 color support.
Expand to a video wall configuration of any size by using multiple QuadHead2Go units.
Create a video wall from any content source, including professional graphics cards and integrated GPUs, video wall controllers, digital signage players, media players, decoders, laptops, NUCs, set-top boxes, gaming consoles, and more.
Design modern and artistic video wall layouts with free rein-each output can have its own resolution, be independently rotated (90, 180, and 270 degrees), cropped, upscaled, downscaled, and positioned anywhere.
Fashion countless forms of setups-arrange displays in 4x1, 1x4, 2x2, 3x1, 1x3, 2x1, or 1x2 rectangular configurations, in portrait or landscape, or other non-rectangular/artistic configurations-and combine/scale them to create large-scale, captivating vid
Simplify installation with guaranteed out-of-the-box plug and play when using the default configuration of 2x2 in landscape-set up without installing software or even connecting a video source.
Design any custom configuration/array with the intuitive Matrox PowerWall software.
Ensure compatibility with professional-grade graphics cards and media players with HDMI support.
Eliminate physical handling by controlling and updating the units remotely from anywhere on the network (LAN).
Select and set the display layout by cycling through pre-set configurations* using an on-device button-there is no need to install software when using a pre-set configuration.
Set up display positions, fine tune bezels, and also troubleshoot with ease, by accessing the built-in or pre-saved images directly from the appliance, together with display identification information that includes the ID number and the resolution of each
Tech Specs:
Connector : RJ45
Depth : 181.10 mm
Height : 31.75 mm
Memory : 1 GB
Width : 139.70 mm
Form Factor : Appliance (p/n: Q2G-H4K)
Audio Format : AAC, PCM, Stereo, and Mono
Regulatory Compliance : FCC, CE, KC, RCM, EMC
Control Interface : 1 x 10/100/1000 Base-T RJ45 Ethernet port
Standard : Ethernet 10/100/1000 Base-T, Auto-Detect, Half/Full-Duplex
DC Voltage : 12 Volts
Video Scaling : Matrox s advanced multi-channel Video Scaling Engine
Audio Sampling Rate : 44.1 KHz and 48 KHz, 16-bit stereo
Supported Configurations : 2x2 (default), 4x1, 3x1, 2x1, 1x2, 1x3, 1x4, Clone in both landscape and portrait modes and other non-rectangular/artistic configurations
Product Weight : 0.49 kg
Maximum Output Resolutions : 1920x1080 at 60Hz, 1920x1080 at 30Hz, 1920x1200 at 60Hz, 1920x1200 at 30Hz Other output resolutions are supported
Active Power : 42 Watt
Warranty (Length/Type) : 3 Years
Operating Temperature (Maximum) : 45 C
Operating Temperature (Minimum) : 0 C
Firmware Update : Via network interface
IP addressing : DHCP (default) and Static IP
AC Voltage (Minimum) : 100 Volts
AC Voltage (Maximum) : 240 Volts
IP Version : IPv4/IPv6
Output Color Space : RGB: 8:8:8 (24 bits per pixel)
Input connector (video and audio support) : 1 x HDMI
Maximum input resolutions : 3840x2160 at 60Hz, 3840x2160 at 30Hz, 7680x1080 at 60Hz, 7680x1080 at 30Hz, 1920x4320 at 60Hz, 1920x4320 at 30Hz Other input resolutions including 8Kx8K are supported
Output connector (video and audio support) : 4 x HDMI
Command and control protocols : HTTP/HTTPS, UPnP (discovery), mDNS and DNS-SD (discovery)
Input color space : RGB: 8:8:8 (24 bits per pixel), YUV: 4:4:4, 4:2:2 (8 bits per component)
Systems Controlled - Audio
Systems Controlled - Video
Warranty - Yes
| Design | |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Housing material What the casing of the product is made of. | Metal |
| Built-in fan |
 |
| Rack mounting The type of mounting that can position devices in a shelving system (rack). |
 |
| Certification | Regulatory/environmental compliance: EMC Class A: FCC, CE, KC, RCM, VCCI |
| Features | |
| Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable. |
|
| Ethernet LAN data rates The different speed levels of the Ethernet LAN connection. | 1000 Mbit/s |
| Cabling technology Type of cable technology performance. | 10/100Base-T(X) |
| Built-in processor Whether or not a processor is built into the device. |
|
| Internal storage capacity The amount e.g of data which can be stored inside the device. | 1 GB |
| Bundled software Software distributed with another product such as a piece of computer hardware or other electronic device, or a group of software packages which are sold together. A software suite is an example of bundled software, as is software which is pre-installed on a new computer. | Matrox PowerWall: https://www.matrox.com/graphics/en/products/video-wall/powerwall/ |
| HDCP High-bandwidth Digital Content Protection (HDCP) is a form of digital copy protection to prevent copying of digital audio and video content as it travels across connections. |
|
| Ports & interfaces | |
| HDMI input ports quantity | 1 |
| HDMI output ports quantity | 4 |
| RJ-45 ports quantity | 1 |
| Power | |
| Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage. | 15 W |
| Power supply location Where the power supply is positioned. | External |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 45 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -40 - 70 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 139.7 mm |
| Depth The distance from the front to the back of something. | 181.1 mm |
| Height The measurement of the product from head to foot or from base to top. | 31.8 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 494 g |
| SKU | 701231 |
| MPN | Q2G-H4K |
| Brand | Matrox |
| Product Condition | Brand New/Unused |
| Product Use | General |
| Warranty Period | 3 Years Warranty |
| Warranty Contact | https://www.matrox.com/ |
