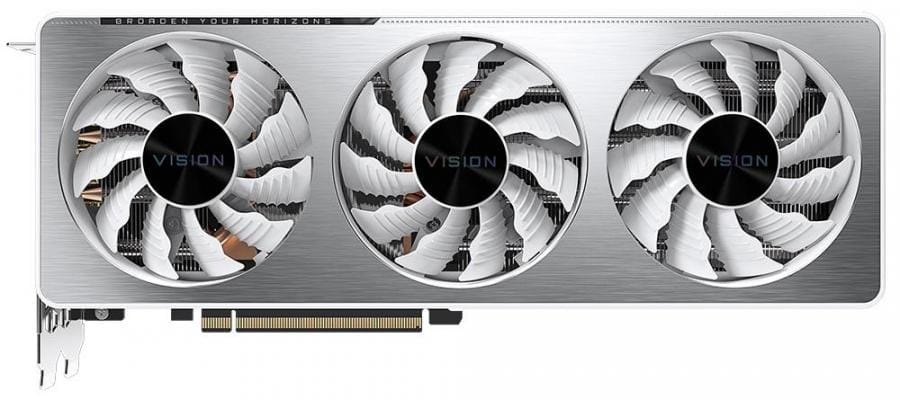

2nd Generation RT Cores; 3rd Generation Tensor Cores; GeForce RTX 3070; 8GB GDDR6 256-bit; WINDFORCE 3X Cooling System; RGB Fusion 2.0
Please Note: all Gigabyte Mainboard/Graphics Cards had necessary testing done by Gigabyte Service Centre before shipping to us to ensure the customer is getting a quality working unit. Additionally, NO cables or accessories are included, the Mainboard/Graphics Card will either be enclosed into the original packaging or some sort of protective box. The pictures shown are for illustration purposes only, and the actual product condition may vary.
** Buy with confidence knowing all the manufacture refurbished mainboard & Graphic cards come with 6 months return to base warranty.

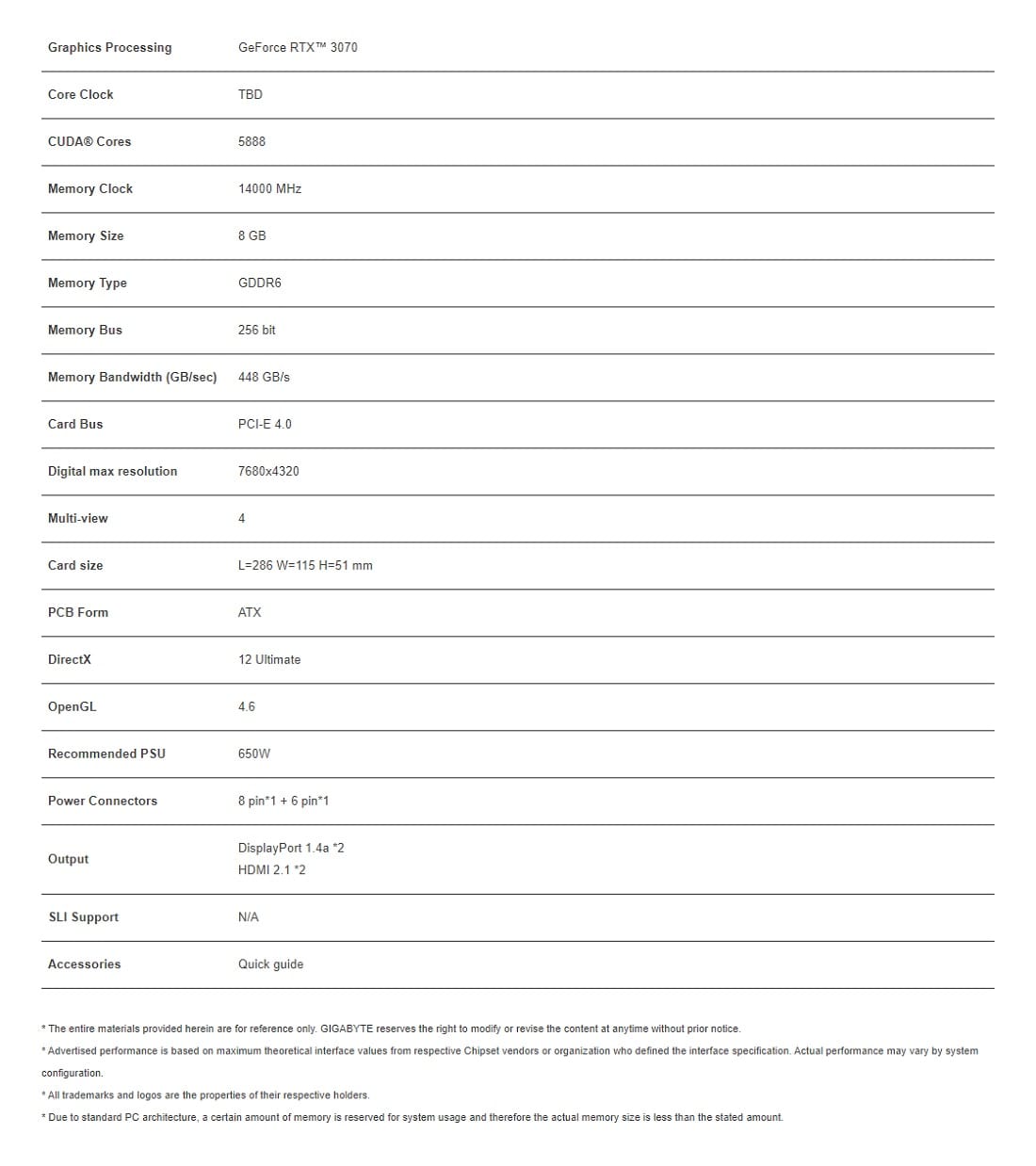

| Processor | |
| CUDA CUDA (aka Compute Unified Device Architecture) is a parallel computing platform and programming model created by NVIDIA and implemented by the graphics processing units (GPUs) that they produce. CUDA gives program developers direct access to the virtual instruction set and memory of the parallel computational elements in CUDA GPUs. |
 |
| CUDA cores | 5888 |
| Graphics processor family The category to which the graphics processor (GPU) belongs e.g. Southern Islands family of Radeon processors (made by AMD), GeForce 600 (made by NVIDIA). | NVIDIA |
| Graphics processor Also known as a graphics processing unit (GPU), this is a specialized electronic circuit designed to rapidly manipulate and alter memory to accelerate the creation of images in a frame buffer intended for output to a display. GPUs are used in embedded systems, mobile phones, personal computers, workstations, and game consoles. Modern GPUs are very efficient at manipulating computer graphics. | GeForce RTX 3070 |
| Processor boost clock speed | 1815 MHz |
| Maximum resolution The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. | 7680 x 4320 pixels |
| Maximum displays per videocard | 4 |
| Memory | |
| Discrete graphics adapter memory | 8 GB |
| Graphics adapter memory type The type of memory used by the video card. Often a combination of dedicated memory (Video RAM or VRAM) and dynamic system memory is used. UMA stands for Unified Memory Architecture, and is a computer memory architecture that allows the graphics processing unit to share system memory. Other abreviations: RAM = Random Access Memory, SDRAM = synchronous dynamic RAM, DDR = double-data-rate. | GDDR6 |
| Memory bus Hardware and software that connects the main memory to the memory controller in computer systems. Originally, general-purpose buses like VMEbus and the S-100 bus were used, but to reduce latency, modern memory buses are designed to connect directly to DRAM chips, and thus are designed by chip standards bodies such as JEDEC. | 256 bit |
| Memory clock speed The frequency at which the memory (e.g. RAM) runs. | 14000 MHz |
| Memory bandwidth (max) | 448 GB/s |
| Ports & interfaces | |
| Interface type | PCI Express x16 4.0 |
| HDMI ports quantity The number of sockets (ports) for HDMI connections. HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor, video projector, digital television, or digital audio device. HDMI is a digital replacement for existing analog video standards. | 2 |
| HDMI version | 2.1 |
| DisplayPorts quantity Number of DisplayPorts. A DisplayPort is a digital display interface developed by the Video Electronics Standards Association (VESA). The interface is primarily used to connect a video source to a display device such as a computer monitor, though it can also be used to carry audio, USB, and other forms of data. | 2 |
| DisplayPort version | 1.4a |
| Performance | |
| DirectX version DirectX is a collection of APIs (application programming interfaces) for easily handling tasks related to game programming on the Microsoft Windows operating system. | 12.0 |
| OpenGL version OpenGL (Open Graphics Library) is a specification defining a cross-language cross-platform API for writing applications that produce 3D computer graphics (and 2D computer graphics as well). The interface consists of over 250 different function calls which can be used to draw complex three-dimensional scenes from simple primitives. | 4.6 |
| Design | |
| Cooling type The method used to cool the device or to cool the air around the device. | Active |
| Cooling technology | GIGABYTE WINDFORCE 3X |
| Number of fans The quantity of fans (apparatus with rotating blades that creates a current of air for cooling or ventilation). | 3 fan(s) |
| Fan diameter The size of the fan, measured by the distance from one side of the fan to the other, via a straight line going through the middle of the fan. | 8 cm |
| Form factor The shape or design of the product. | Full-Height/Full-Length (FH/FL) |
| Bracket height | Full-Height (FH) |
| Illumination The device has illumination. |
|
| Illumination colour The colour of the illumination, which is the light which allows you to see the display etc. clearly. | Multi |
| Product colour The colour e.g. red, blue, green, black, white. | Silver |
| Power | |
| Minimum system power supply The lowest power that is needed. | 650 W |
| Supplementary power connectors | 1x 6-pin, 1x 8-pin |
| Packaging content | |
| Quick installation guide |
|
| Weight & dimensions | |
| Depth The distance from the front to the back of something. | 286 mm |
| Height The measurement of the product from head to foot or from base to top. | 51 mm |
| Width The measurement or extent of something from side to side. | 115 mm |
| Packaging data | |
| Package type The type of product package e.g. box. | Box |
| SKU | 516161 |
| MPN | GV-N3070VISION OC-8GD-RFB |
| Brand | Gigabyte |
| Product Condition | Refurbished |
