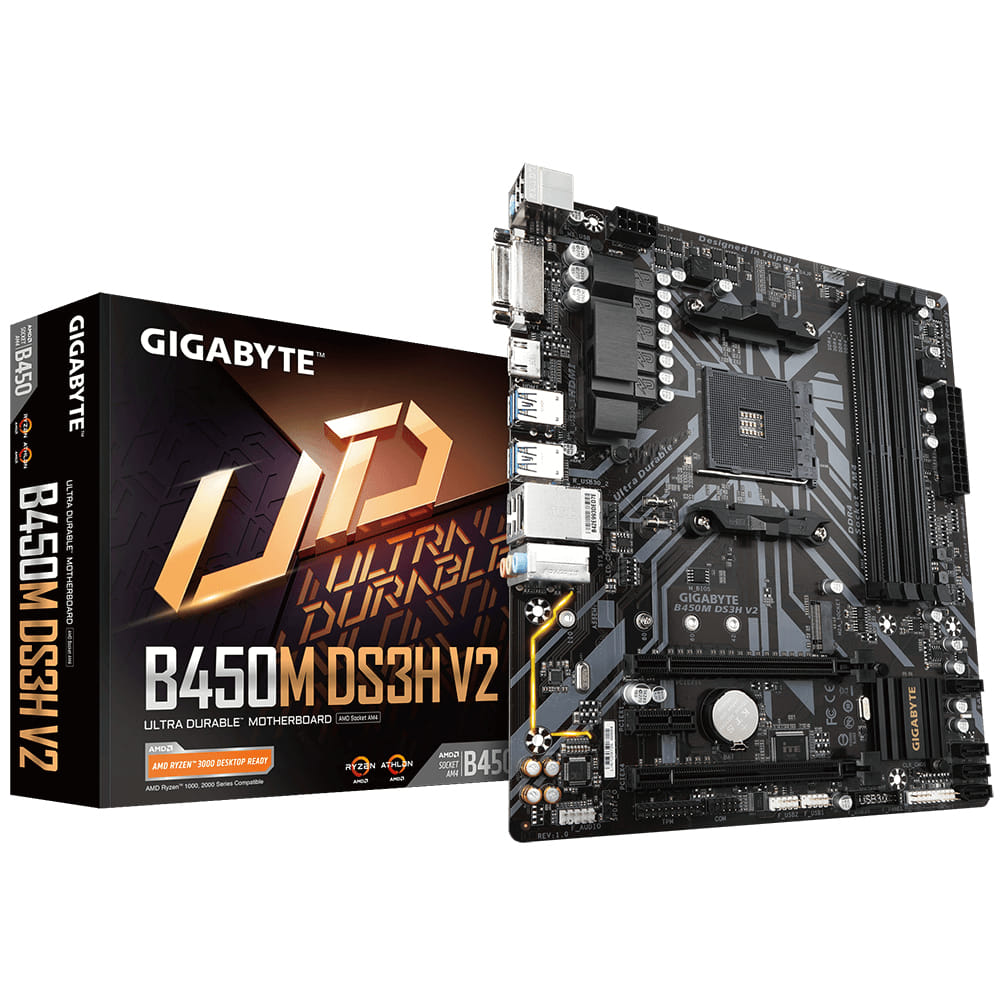

Gigabyte B450M DS3H V2 AMD Ryzen AM4 Motherboard, 4x DDR4, 1x PCI-e x16, 1x M.2, 4x SATA3, 4x USB 3.1, 4x USB 2.0, RAID 0/1/10
Please Note: all Gigabyte Mainboard/Graphics Cards had necessary testing done by Gigabyte Service Centre before shipping to us to ensure the customer is getting a quality working unit. Additionally, NO CABLES, I/O SHIELD OR ACCESSORIES ARE INCLUDED, the Mainboard/Graphics Card will either be enclosed into the original packaging or some sort of protective box. The pictures shown are for illustration purposes only, and the actual product condition may vary.
** Buy with confidence knowing all the manufacture refurbished mainboard & Graphic cards come with 6 months return to base warranty.
Supports AMD Ryzen 5000 series/ 3rd Gen Ryzen / 2nd Gen Ryzen / 1st Gen Ryzen / 2nd Gen Ryzen with Radeon Vega Graphics/ 1st Gen Ryzen with Radeon Vega Graphics/ Athlon with Radeon Vega Graphics Processors
Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
Feature Digital VRM Solution with Low RDS(on) MOSFETs
HDMI, DVI-D Ports for Multiple Display
Ultra-Fast PCIe Gen3 x4 M.2 with PCIe NVMe & SATA mode support
High Quality Audio Capacitors and Audio Noise Guard with LED Trace Path Lighting
GIGABYTE Exclusive 8118 Gaming LAN with Bandwidth Management
RGB Fusion supports RGB LED Strips in 7-Colors
Smart Fan 5 Features 5 Temperature Sensors and 2 Hybrid Fan Headers with FAN STOP
APP Center Including EasyTune and Cloud Station Utilities
CEC 2019 Ready, Save Power with a Simple Click
CPU
AM4 Socket: Supports AMD Ryzen 5000 series/ 3rd Gen Ryzen / 2nd Gen Ryzen / 1st Gen Ryzen / 2nd Gen Ryzen with Radeon Vega Graphics/ 1st Gen Ryzen with Radeon Vega Graphics/ Athlon with Radeon Vega Graphics Processors
(Please refer 'CPU Support List' for more information.)
Chipset
AMD B450
Memory
4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for DDR4 3600(O.C.)/3466(O.C.)/3200(O.C.)/2933/2667/2400/2133 MHz memory modules
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
Onboard Graphics
Integrated Graphics Processor:
1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
* The DVI-D port does not support D-Sub connection by adapter.
1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz(Note)
* Support for HDMI 2.0 version and HDCP 2.2.(Note)
| Processor | |
| Processor manufacturer The manufacturer that produced the processor. | AMD |
| Processor socket Mechanical component(s) that provides mechanical and electrical connections between a microprocessor and a printed circuit board (PCB). This allows the processor to be replaced without soldering. | Socket AM4 |
| Compatible processor series A processor which is compatible with this device, belongs to a 'series' which is part of 'family' e.g Celeron D, Celeron G, Celeron M, or, in some cases, is the same as 'family'. | AMD Ryzen 3, 2nd Generation AMD Ryzen™ 3, AMD Ryzen 3 3rd Gen |
| Memory | |
| Supported memory types Types of memory which can be used with the product. | DDR4-SDRAM |
| Number of memory slots | 4 |
| Memory slots type A memory slot, also known as a memory socket or RAM slot, is what allows computer memory (RAM) to be inserted into the computer. Depending on the motherboard, there will usually be 2 to 4 memory slots (sometimes more on high-end motherboards). The most common types of RAM are SDRAM and DDR for desktop computers and SODIMM for laptop computers, each having various types and speeds. | DIMM |
| Memory channels | Dual-channel |
| Supported memory clock speeds Memory clock speed is the time it takes for a computer to complete basic operations. It refers to the computer's processing speed and is measured in hertz. It is however not such a reliable measure of a computer's speed as it doesn't take into account other factors like RAM and cache size. | 2133,2400,2667,2933 MHz |
| Maximum internal memory The maximum internal memory which is available in the product. | 128 GB |
| Storage controllers | |
| Supported storage drive types The type of storage drives the device is compatible with. | HDD & SSD |
| Supported storage drive interfaces | M.2, Serial ATA III |
| RAID levels RAID is a storage technology that combines multiple disk drive components into a logical unit for the purposes of data redundancy and performance improvement. Data is distributed across the drives in one of several ways, referred to as RAID levels, depending on the specific level of redundancy and performance required. | 0,1,10 |
| Graphics | |
| Parallel processing technology support Parallel processing technology is the simultaneous use of more than one CPU or processor core to execute a program or multiple computational threads. Ideally, parallel processing makes programs run faster because there are more engines (CPUs or Cores) running it. In practice, it is often difficult to divide a program in such a way that separate CPUs or cores can execute different portions without interfering with each other. Most computers have just one CPU, but some models have several, and multi-core processor chips are becoming the norm. There are even computers with thousands of CPUs. | 2-Way CrossFireX,Quad-GPU CrossFireX |
| Internal I/O | |
| USB 2.0 connectors The end of a cable with a USB 2.0 connector. USB 2.0 was released in April 2000 (now called "Hi-Speed"), adding higher maximum signaling rate of 480 Mbit/s (effective throughput up to 35 MB/s or 280 Mbit/s), in addition to the "USB 1.x Full Speed" signaling rate of 12 Mbit/s. USB 2.0 connectors are usually colored black. | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors This is a connector (normally attached to a cable) for USB 3.0. USB 3.0 is the second major revision of the Universal Serial Bus (USB) standard for computer connectivity. First introduced in 2008, USB 3.0 adds a new transfer mode called "SuperSpeed," (distinguishable from USB 2.0 by either the blue colour of the port or the initials SS) capable of transferring data at up to 5Gbit/s—more than ten times as fast as the 480 Mbit/s top speed of USB 2.0. | 1 |
| Number of SATA III connectors Serial ATA (Advanced Technology Attachment) (SATA) is a computer bus interface that connects host bus adapters to mass storage devices such as hard disk drives and optical drives. SATA III (revision 3.x) interface, formally known as SATA 6Gb/s, is a third generation SATA interface running at 6.0Gb/s. The bandwidth throughput, which is supported by the interface, is up to 600MB/s. This interface is backwards compatible with SATA 3 Gb/s interface. | 4 |
| S/PDIF out connector |
 |
| Front panel audio connector |
|
| Front panel connector |
|
| ATX Power connector (24-pin) |
|
| CPU fan connector |
|
| TPM connector |
|
| Serial port headers | 1 |
| 12V power connector |
|
| RGB LED pin header |
|
| Rear panel I/O ports | |
| USB 2.0 ports quantity Number of USB 2.0 ports (connecting interfaces) in the device. USB 2.0 was released in April 2000 (now called "Hi-Speed"), adding higher maximum signaling rate of 480 Mbit/s (effective throughput up to 35 MB/s or 280 Mbit/s), USB 2.0 ports are usually black. | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. | 1 |
| PS/2 ports quantity The number of PS/2 connectors for keyboards and mice. Its name comes from the IBM Personal System/2. | 1 |
| HDMI ports quantity The number of sockets (ports) for HDMI connections. HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor, video projector, digital television, or digital audio device. HDMI is a digital replacement for existing analog video standards. | 1 |
| DVI-D ports quantity This is the amount of DVI-I interfaces. Digital Visual Interface (DVI) is a video display interface developed by the Digital Display Working Group (DDWG). The digital interface is used to connect a video source to a display device, such as a computer monitor. DVI-D means DVI digital, which means it can only support digital, but not analog. | 1 |
| Network | |
| Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable. |
|
| Ethernet interface type | 100 Gigabit Ethernet, Gigabit Ethernet |
| Wi-Fi Popular technology that allows an electronic device to exchange data or connect to the internet wirelessly using radio waves. |
 |
| Features | |
| Motherboard chipset The chipset connects the microprocessor to the rest of the motherboard. | AMD B450 |
| Audio chip | Realtek ALC887 |
| Audio output channels An audio output channel is an electric circuit which acts as a path for a signal produced by a device. A device may have several audio output channels. | 7.1 channels |
| Component for What this product is used as a part of (component for). | PC |
| Motherboard form factor Design of the motherboard (ATX, BTX etc). | micro ATX |
| Motherboard chipset family The category of motherboard chipset e.g. Intel, AMD. | AMD |
| Windows operating systems supported Windows vesions wich can be used with the device. | Windows 10 x64 |
| Expansion slots | |
| PCI Express x1 slots | 1 |
| PCI Express x16 slots | 1 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| Number of M.2 (M) slots | 1 |
| BIOS | |
| BIOS type The BIOS (Basic Input/Output System) initializes and tests system hardware components, and loads a bootloader or an operating system from a mass memory device. The BIOS additionally provides abstraction layer for the hardware, i.e. a consistent way for application programs and operating systems to interact with the keyboard, display, and other input/output devices. There are several types of BIOS, including the motherboard ROM BIOS, video BIOS, drive controller BIOS, network adapter BIOS, and SCSI adapter BIOS. | UEFI AMI |
| BIOS memory size | 128 Mbit |
| ACPI version | 5.0 |
| Clear CMOS jumper |
|
| Desktop Management Interface (DMI) version | 2.7 |
| System Management BIOS (SMBIOS) version | 2.7 |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 244 mm |
| Depth The distance from the front to the back of something. | 215 mm |
| SKU | 703508 |
| MPN | GA-B450M-DS3H-V2-RFB |
| Brand | Gigabyte |
| Product Condition | Refurbished |
| Case/MB Form Factor | Micro-ATX |
| Motherboard Chipset | AMD B450 |
| CPU Socket | AM4 |
| Memory Type | DDR4 |
| Memory Form Factor | DIMM |
| Warranty Period | 6 Months Warranty |
| Warranty Contact | https://www.gigabyte.com/ |
