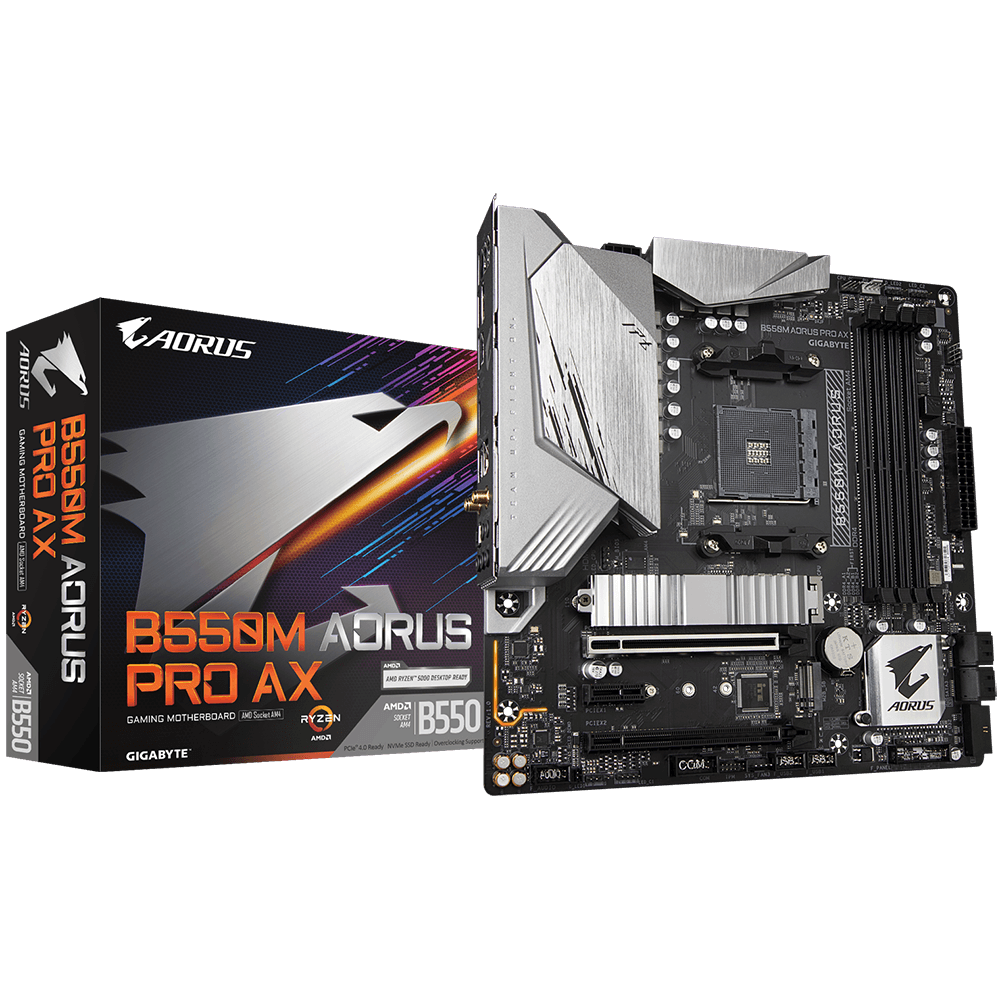

Manufacturer Refurbished Gigabyte B550M Aorus Pro AX M-ATX Motherboard

Please Note: all Gigabyte Mainboard/Graphics Cards had necessary testing done by Gigabyte Service Centre before shipping to us to ensure the customer is getting a quality working unit. Additionally, NO CABLES, I/O SHIELD OR ACCESSORIES ARE INCLUDED, the Mainboard/Graphics Card will either be enclosed into the original packaging or some sort of protective box. The pictures shown are for illustration purposes only, and the actual product condition may vary.

** Buy with confidence knowing all the manufacture refurbished mainboard & Graphic cards come with 6 months return to base warranty.

---

Gigabyte B550M AORUS PRO AX AMD Ryzen M-ATX Motherboard, 4x DDR4 ~128GB, 2x PCI-E x16, 1x PCI-E x1, 2x M.2, 4x SATA3, 1x USB-C, 4x USB 3.2, 4x USB 2.0

AMD B550 AORUS Motherboard with 10+2 Phases Digital Twin Power Design, Enlarged Surface Heatsinks, PCIe 4.0 x16 Slot, Dual PCIe 4.0/3.0 x4 M.2, 2.5GbE LAN, Intel WiFi 6 802.11ax, Rear & Front USB Type-C , RGB FUSION 2.0, Q-Flash Plus

Supports AMD Ryzen 5000 Series/ Ryzen 5000 G-Series/ 3rd Gen Ryzen and 3rd Gen Ryzen with Radeon Graphics Processors
Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs
10+2 Phases Digital Twin Power Design with 50A DrMOS
Advanced Thermal Design with Enlarged VRM Heatsinks
Ultra Durable PCIe 4.0 Ready x16 Slot
Dual Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 with One Thermal Guard
Onboard Intel WiFi 6 802.11ax 2T2R & BT5 with AORUS Antenna
AMP-UP Audio with ALC1200 and Premium Audio Capacitors
Blazing Fast 2.5GbE LAN with Bandwidth Management
DisplayPort & HDMI for Multiple Display
RGB FUSION 2.0 Supports Addressable LED & RGB LED Strips
Smart Fan 5 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP
Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card
Pre-installed IO Shield for Easy and Quick Installation

CPU
AMD Socket AM4, support for: AMD Socket AM4, support for: AMD Ryzen 5000 Series/ Ryzen 5000 G-Series/ 3rd Gen Ryzen and 3rd Gen Ryzen with Radeon Graphics Processors
(Please refer 'CPU Support List' for more information.)
Chipset
AMD B550
Memory
4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
AMD Ryzen 5000 series processors/ 3rd Generation AMD Ryzen :
Support for DDR4 4400(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules
3rd Gen AMD Ryzen with Radeon Graphics processors:
Support for DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 400
