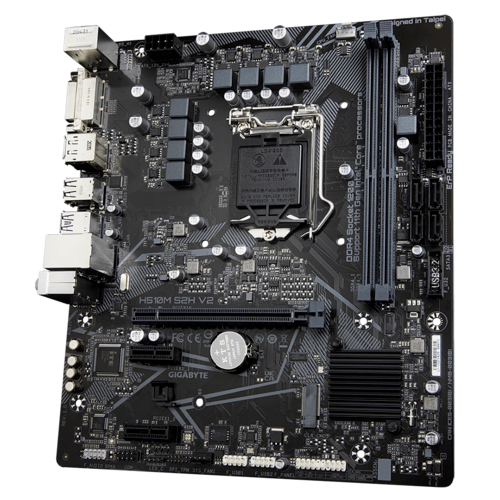

Chipset: Intel H510 Express Chipset - LGA1200 - LAN: Realtek GbE LAN chip (1 Gbit/100 Mbit)
Please Note: all Gigabyte Mainboard/Graphics Cards had necessary testing done by Gigabyte Service Centre before shipping to us to ensure the customer is getting a quality working unit. Additionally, NO CABLES, I/O SHIELD OR ACCESSORIES ARE INCLUDED, the Mainboard/Graphics Card will either be enclosed into the original packaging or some sort of protective box. The pictures shown are for illustration purposes only, and the actual product condition may vary.
** Buy with confidence knowing all the manufacture refurbished mainboard & Graphic cards come with 6 months return to base warranty.

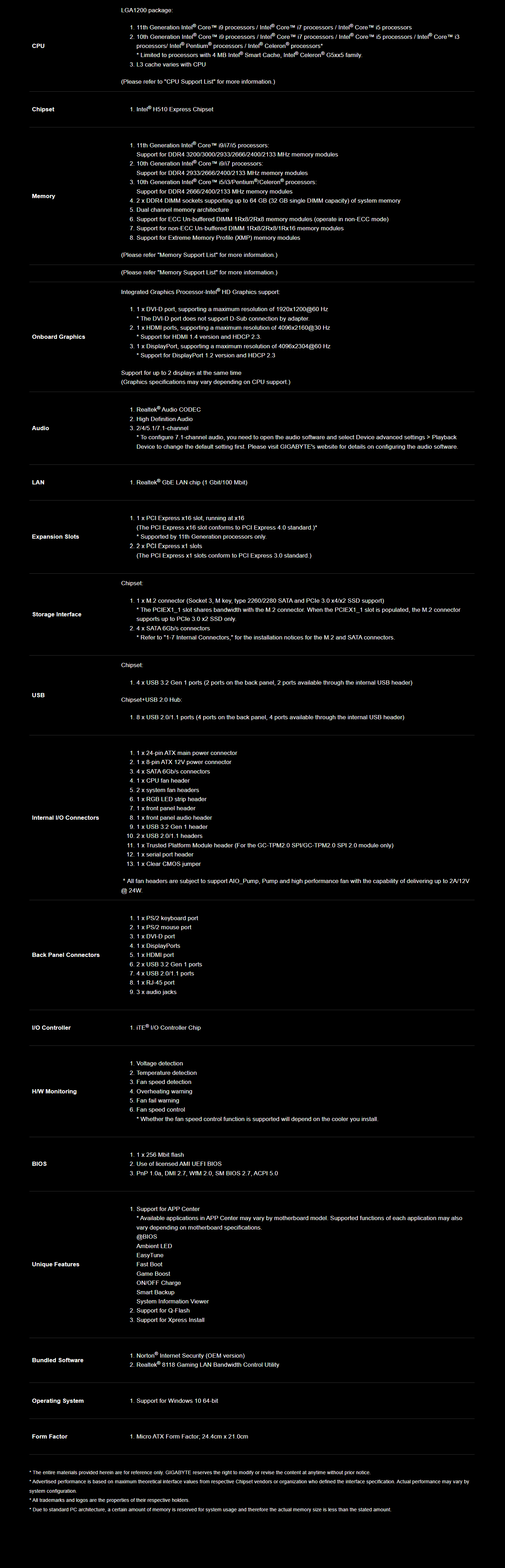

| Processor | |
| Processor manufacturer The manufacturer that produced the processor. | Intel |
| Processor socket Mechanical component(s) that provides mechanical and electrical connections between a microprocessor and a printed circuit board (PCB). This allows the processor to be replaced without soldering. | LGA 1200 |
| Compatible processor series A processor which is compatible with this device, belongs to a 'series' which is part of 'family' e.g Celeron D, Celeron G, Celeron M, or, in some cases, is the same as 'family'. | Intel® Celeron®, Intel® Core™ i3, Intel Core i5, Intel Core i7, Intel Core i9, Intel® Pentium® |
| Supported processor sockets The sockets (plugs) for processors that are supported (can be used) by the device. | LGA 1200 (Socket H5) |
| Memory | |
| Supported memory types Types of memory which can be used with the product. | DDR4-SDRAM |
| Number of memory slots | 2 |
| Memory slots type A memory slot, also known as a memory socket or RAM slot, is what allows computer memory (RAM) to be inserted into the computer. Depending on the motherboard, there will usually be 2 to 4 memory slots (sometimes more on high-end motherboards). The most common types of RAM are SDRAM and DDR for desktop computers and SODIMM for laptop computers, each having various types and speeds. | DIMM |
| Memory channels | Dual-channel |
| ECC ECC means Error Correction Code, and it is memory that is able to detect and correct some memory errors without user intervention. |
 |
| Non-ECC |
|
| Supported memory clock speeds Memory clock speed is the time it takes for a computer to complete basic operations. It refers to the computer's processing speed and is measured in hertz. It is however not such a reliable measure of a computer's speed as it doesn't take into account other factors like RAM and cache size. | 2133,2400,2666,2933,3000,3200 MHz |
| Maximum internal memory The maximum internal memory which is available in the product. | 64 GB |
| Unbuffered memory |
|
| Storage controllers | |
| Supported storage drive types The type of storage drives the device is compatible with. | HDD & SSD |
| Supported storage drive interfaces | M.2,PCI Express 3.0,SATA III |
| Number of storage drives supported How many storage drives can be fit into the product at once. | 5 |
| Graphics | |
| Parallel processing technology support Parallel processing technology is the simultaneous use of more than one CPU or processor core to execute a program or multiple computational threads. Ideally, parallel processing makes programs run faster because there are more engines (CPUs or Cores) running it. In practice, it is often difficult to divide a program in such a way that separate CPUs or cores can execute different portions without interfering with each other. Most computers have just one CPU, but some models have several, and multi-core processor chips are becoming the norm. There are even computers with thousands of CPUs. | Not supported |
| Maximum resolution The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. | 4096 x 2304 pixels |
| HDCP High-bandwidth Digital Content Protection (HDCP) is a form of digital copy protection to prevent copying of digital audio and video content as it travels across connections. |
|
| Number of displays supported The number of displays that can be used with this product. | 2 |
| Internal I/O | |
| USB 2.0 connectors The end of a cable with a USB 2.0 connector. USB 2.0 was released in April 2000 (now called "Hi-Speed"), adding higher maximum signaling rate of 480 Mbit/s (effective throughput up to 35 MB/s or 280 Mbit/s), in addition to the "USB 1.x Full Speed" signaling rate of 12 Mbit/s. USB 2.0 connectors are usually colored black. | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors This is a connector (normally attached to a cable) for USB 3.0. USB 3.0 is the second major revision of the Universal Serial Bus (USB) standard for computer connectivity. First introduced in 2008, USB 3.0 adds a new transfer mode called "SuperSpeed," (distinguishable from USB 2.0 by either the blue colour of the port or the initials SS) capable of transferring data at up to 5Gbit/s—more than ten times as fast as the 480 Mbit/s top speed of USB 2.0. | 1 |
| Number of SATA III connectors Serial ATA (Advanced Technology Attachment) (SATA) is a computer bus interface that connects host bus adapters to mass storage devices such as hard disk drives and optical drives. SATA III (revision 3.x) interface, formally known as SATA 6Gb/s, is a third generation SATA interface running at 6.0Gb/s. The bandwidth throughput, which is supported by the interface, is up to 600MB/s. This interface is backwards compatible with SATA 3 Gb/s interface. | 4 |
| Front panel audio connector |
|
| Front panel connector |
|
| ATX Power connector (24-pin) |
|
| CPU fan connector |
|
| Number of chassis fan connectors | 2 |
| EPS power connector (8-pin) |
|
| TPM connector |
|
| Serial port headers | 1 |
| 12V power connector |
|
| RGB LED pin header |
|
| Rear panel I/O ports | |
| USB 2.0 ports quantity Number of USB 2.0 ports (connecting interfaces) in the device. USB 2.0 was released in April 2000 (now called "Hi-Speed"), adding higher maximum signaling rate of 480 Mbit/s (effective throughput up to 35 MB/s or 280 Mbit/s), USB 2.0 ports are usually black. | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. | 1 |
| PS/2 ports quantity The number of PS/2 connectors for keyboards and mice. Its name comes from the IBM Personal System/2. | 2 |
| HDMI ports quantity The number of sockets (ports) for HDMI connections. HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor, video projector, digital television, or digital audio device. HDMI is a digital replacement for existing analog video standards. | 1 |
| HDMI version | 1.4 |
| DVI-D ports quantity This is the amount of DVI-I interfaces. Digital Visual Interface (DVI) is a video display interface developed by the Digital Display Working Group (DDWG). The digital interface is used to connect a video source to a display device, such as a computer monitor. DVI-D means DVI digital, which means it can only support digital, but not analog. | 1 |
| DisplayPorts quantity Number of DisplayPorts. A DisplayPort is a digital display interface developed by the Video Electronics Standards Association (VESA). The interface is primarily used to connect a video source to a display device such as a computer monitor, though it can also be used to carry audio, USB, and other forms of data. | 1 |
| DisplayPort version | 1.2 |
| Headphone outputs Number of sockets /ports where headphones are connected. | 3 |
| Microphone in The socket where a microphone is connected to the device. |
|
| USB connector type The type of USB connector/port that this product has. | USB Type-A |
| Network | |
| Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable. |
|
| Ethernet interface type | Gigabit Ethernet |
| Wi-Fi Popular technology that allows an electronic device to exchange data or connect to the internet wirelessly using radio waves. |
 |
| Features | |
| Motherboard chipset The chipset connects the microprocessor to the rest of the motherboard. | Intel H510 Express |
| Audio output channels An audio output channel is an electric circuit which acts as a path for a signal produced by a device. A device may have several audio output channels. | 7.1 channels |
| PC health monitoring | Fan, Temperature, Voltage |
| Component for What this product is used as a part of (component for). | PC |
| Motherboard form factor Design of the motherboard (ATX, BTX etc). | micro ATX |
| Motherboard chipset family The category of motherboard chipset e.g. Intel, AMD. | Intel |
| Windows operating systems supported Windows vesions wich can be used with the device. | Windows 10 x64 |
| Expansion slots | |
| PCI Express x1 slots | 2 |
| PCI Express x16 slots | 1 |
| Number of M.2 (M) slots | 1 |
| BIOS | |
| BIOS type The BIOS (Basic Input/Output System) initializes and tests system hardware components, and loads a bootloader or an operating system from a mass memory device. The BIOS additionally provides abstraction layer for the hardware, i.e. a consistent way for application programs and operating systems to interact with the keyboard, display, and other input/output devices. There are several types of BIOS, including the motherboard ROM BIOS, video BIOS, drive controller BIOS, network adapter BIOS, and SCSI adapter BIOS. | UEFI AMI |
| BIOS memory size | 256 Mbit |
| ACPI version | 5.0 |
| Clear CMOS jumper |
|
| Desktop Management Interface (DMI) version | 2.7 |
| System Management BIOS (SMBIOS) version | 2.7 |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 244 mm |
| Depth The distance from the front to the back of something. | 210 mm |
| Packaging content | |
| Cables included | SATA |
| Drivers included |
|
| Bundled software Software distributed with another product such as a piece of computer hardware or other electronic device, or a group of software packages which are sold together. A software suite is an example of bundled software, as is software which is pre-installed on a new computer. | Norton Internet Security, Realtek 8118 Gaming LAN Bandwidth Control Utility |
| SKU | 703979 |
| MPN | GA-H510M-S2H-V2-RFB |
| Brand | Gigabyte |
| Product Condition | Refurbished |
