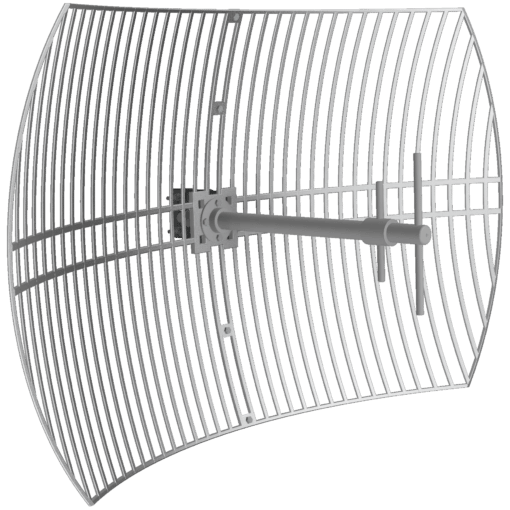

Low Band Grid Antenna 698 to 960MHz 14 dBi 4.3-10 Female

The Powertec Low Band 4G Grid Antenna is one of the highest performing external antenna solutions available for poor 4G voice and data service. This antenna has been optimised for long range 4G connectivity, tuned specifically for frequencies used in regional and remote areas.

This Grid antenna covers the cellular bands between the 700 and 960 MHz range with a very high 14 dBi peak gain. Gain of this magnitude focuses maximum energy in the direction of the cell tower, while still maintaining a reasonable beamwidth to capture reflected and scattered signal. By narrowing the operating frequency range to just the lower cellular band, maximum radiated efficiency is achieved, and no energy is wasted on short-range frequencies.

FEATURES

• Ruggedised construction for Australian conditions
• Solid aluminium and acetal feed, powder-coated cast aluminium reflector
• Stainless steel mounting clamp included
• 30 cm tail with a waterproof 4.3-10 Female connector
