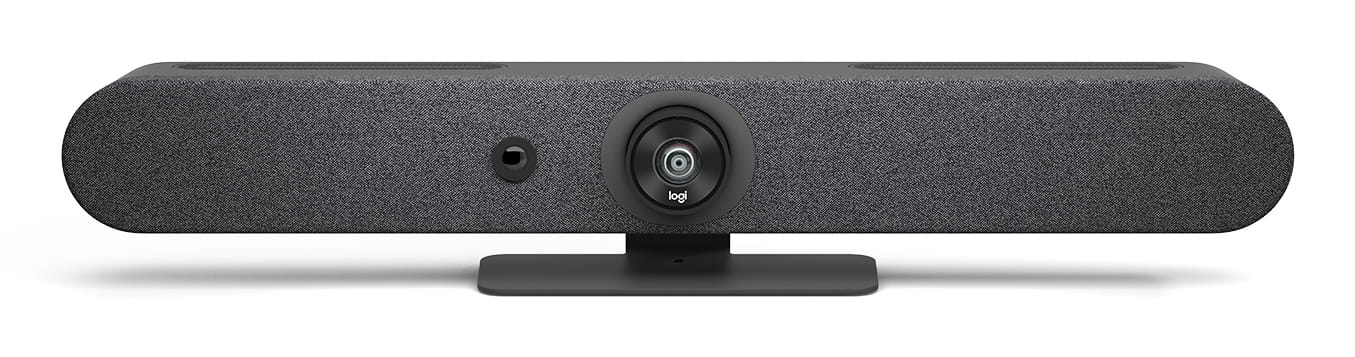

Logitech Rally Bar Mini Video Conferencing System

Technical details
Product colour The colour e.g. red, blue, green, black, white.	Graphite
Product type The sub-category of the product.	Group video conferencing system
Pan range	-25 - 25°
Tilt angle range	-15 - 15°
PTZ control

Video
HD type Type of supported High Definition (e.g. Full HD, 4K Ultra HD).	4K Ultra HD
Digital zoom Indicates the digital zoom capacity, the number of times that the picture is enlarged thanks to digital technology.	4x
Supported video modes The video modes that can be displayed by the device.	720p,900p,1440p,2160p
Maximum frame rate This is the maximum frame rate, also known as frame frequency and frames per second (FPS). It is the frequency (rate) at which an imaging device produces unique consecutive images called frames. The term applies equally well to film and video cameras, computer graphics, and motion capture systems. Frame rate is most often expressed in frames per second (FPS) and is also expressed in progressive scan monitors as hertz (Hz).	30 fps

Audio
Output level	90/99 dB
Output voltage Total Harmonic Distortion (THD)	2%
Built-in speaker(s) The device contains speaker(s) to produce sound.
Microphone pick-up range	4.5 m

Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
Microphone in The socket where a microphone is connected to the device.

Interface module
Interface module HDMI ports quantity	3
Interface module HDMI input ports quantity	1
Interface module HDMI output ports quantity	2
Interface module Ethernet LAN (RJ-45) ports	1

Network
Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable.
Ethernet LAN data rates The different speed levels of the Ethernet LAN connection.	10,100,1000 Mbit/s
Wi-Fi Popular technology that allows an electronic device to exchange data or connect to the internet wirelessly using radio waves.
Wi-Fi standards The type of wireless local area network (LAN). It can be ad-hoc, where units in a network communicate peer-to-peer, or Infrastructure, where units communicate with each other via an access point A LAN interconnects computers in a small area e.g. home, school or office.	802.11a,802.11b,Wi-Fi 4 (802.11n),Wi-Fi 5 (802.11ac)
Security algorithms Security algorithms are used to provide authentication, cipher key generation, integrity and radio link privacy to users on mobile networks. The security algorithms supported are the ones that can be used with this product.	128-bit AES

Camera
Field of view (FOV) angle	120°
Horizontal field of view	113°
Remote control interface	Bluetooth

Microphone
Microphone sensitivity	-36 dB
Microphone frequency The range of frequencies (low to high sounds) that the microphone can pick up (detect).	90 - 16000 Hz
Sound pressure level (max)	90 dB
Number of microphones	6

Features
Telepresence

Operational conditions
Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated.	0 - 40 °C
Operating relative humidity (H-H)	10 - 95%
Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored.	-40 - 70 °C
Heat dissipation The heat generated by the power supply.	64 BTU/h

Power
AC input voltage The voltage of the AC electricity that is inputted into the product.	100 - 240 V
Current	4.754 A
DC input voltage	19 V

Weight & dimensions
Width The measurement or extent of something from side to side.	719 mm
Depth The distance from the front to the back of something.	101 mm
Height The measurement of the product from head to foot or from base to top.	91.4 mm
Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.	4.03 kg

Packaging content
Cables included	AC, DC, HDMI, USB Type-A to USB Type-C
Power cable length	2.5 m
HDMI cable length	2 m
Remote control included Component of an electronics device, most commonly a television set, DVD player and home theater systems originally used for operating the device wirelessly from a short line-of-sight distance.
