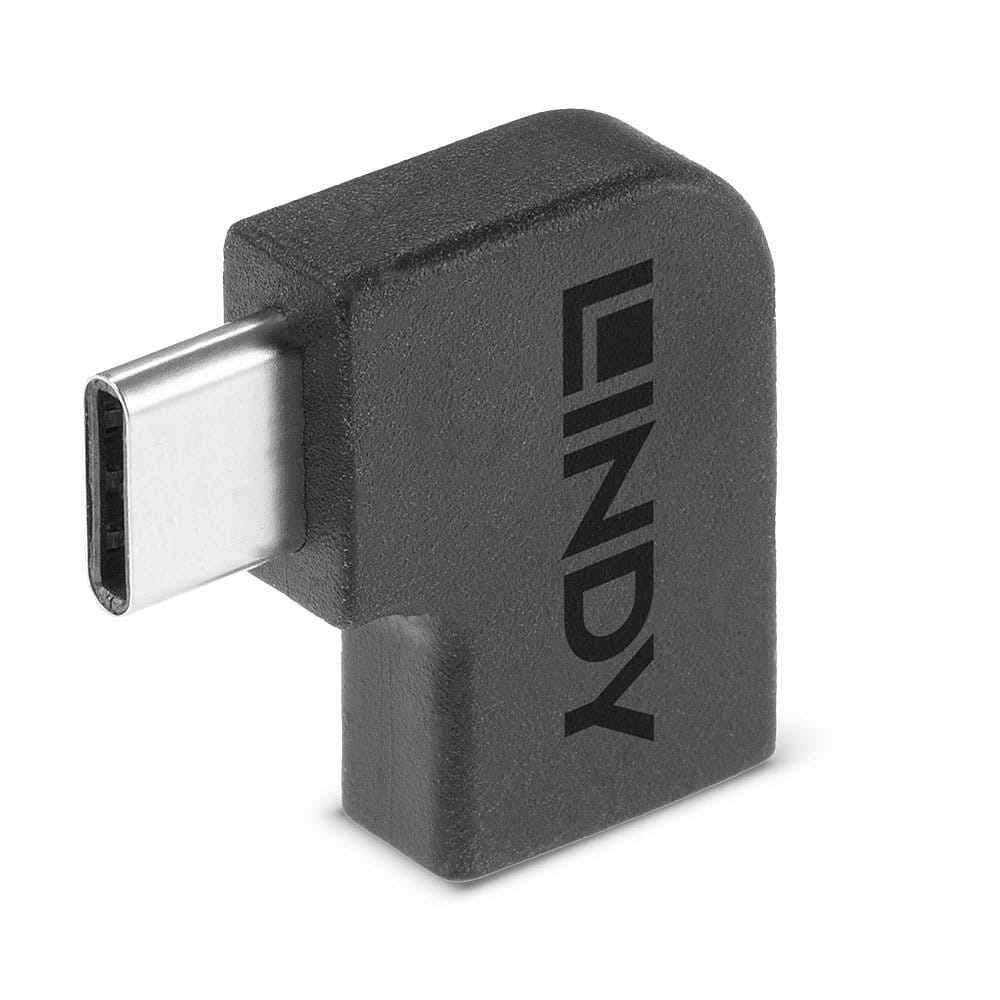

Lindy USB 3.2 Type C to C Adapter 90Deg, USB 3.2 Type C, USB 3.2 Type C, Black
Connects a USB Type C cable to a USB Type C device with recessed ports or within limited spaces
Angled 90Deg left/right - can be used as a strain relief for chargers and USB-C converters
Robust PVC housing, nickel connectors and gold plated contacts
Supports data transfer speeds up to SuperSpeed USB 20Gbps (USB 3.2 Gen 2x2)
10 year warranty
USB adapters allow users to connect different USB interfaces to a device that uses a differing USB port.
The Lindy USB 3.2 Type C to C 90Deg Adapter is a compact solution that allows users to connect a USB Type C cable to a USB Type C device with recessed or hard to reach ports. This adapter allows for a 90Deg connection to the left or right of the device. It is ideal to use as a strain relief for chargers and USB-C converters.
Data transfer speeds up to 20Gbps are supported for the quick and effortless transfer of large data volumes.
Angled 90Deg left/right - can be used as a strain relief for chargers and USB-C converters
Robust PVC housing, nickel connectors and gold plated contacts
Supports data transfer speeds up to SuperSpeed USB 20Gbps (USB 3.2 Gen 2x2)
10 year warranty
USB adapters allow users to connect different USB interfaces to a device that uses a differing USB port.
The Lindy USB 3.2 Type C to C 90Deg Adapter is a compact solution that allows users to connect a USB Type C cable to a USB Type C device with recessed or hard to reach ports. This adapter allows for a 90Deg connection to the left or right of the device. It is ideal to use as a strain relief for chargers and USB-C converters.
Data transfer speeds up to 20Gbps are supported for the quick and effortless transfer of large data volumes.
| Ports & interfaces | |
| Connector 1 This is the first connector in the device. | USB 3.2 Type C |
| Connector 2 This is the second connector in the device. | USB 3.2 Type C |
| Connector 1 gender The gender of the first connector of the product. Each half of a pair of mating connectors is assigned the designation male or female, the part bearing one or which fits into another being called male. | Male |
| Connector 2 gender The gender of the second connector of the product. Each half of a pair of mating connectors is assigned the designation male or female, the indented one or the one fitting around the other being called female. | Female |
| Connector 1 form factor | Angled |
| Connector 2 form factor | Straight |
| Connector contacts plating What the connector contacts are covered with (layer on top). | Nickel/Gold |
| Connector 1 shielding | Copper foil |
| Connector 2 shielding | Copper foil |
| Performance | |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Housing material What the casing of the product is made of. | Polyvinyl chloride (PVC) |
| Data transfer rate Rate at which data can be transferred. Usually expressed in units per second. May vary with network configurations. | 20 Gbit/s |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | -10 - 80 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 85 °C |
| Sustainability | |
| Sustainability certificates | REACH, RoHS |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 24.6 mm |
| Depth The distance from the front to the back of something. | 23 mm |
| Height The measurement of the product from head to foot or from base to top. | 6.3 mm |
| Packaging data | |
| Package type The type of product package e.g. box. | Polybag |
| SKU | 766028 |
| MPN | 41894 |
| Brand | Lindy |
| Product Condition | Brand New/Unused |
| Adapter Type | USB Adapter |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 10 Years Warranty |
| Warranty Contact | https://www.lindy.com.au/ |
