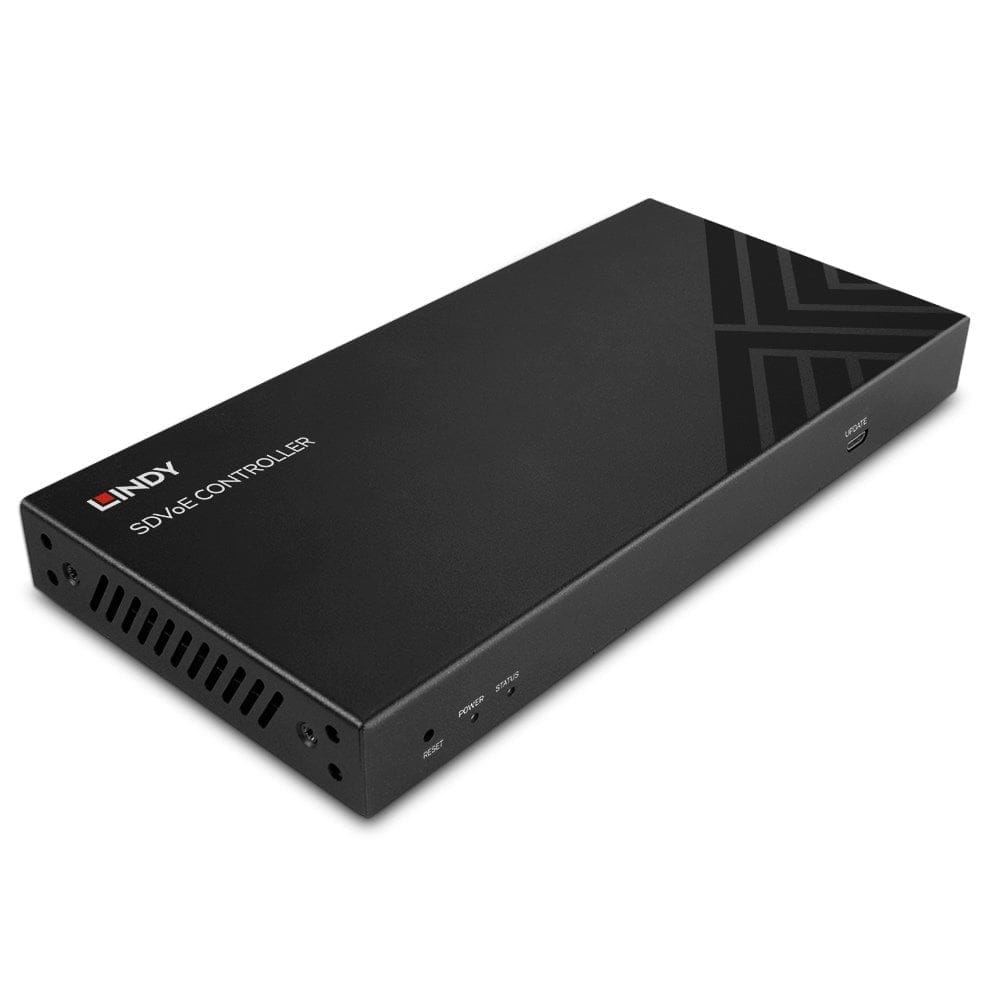

Lindy SDVoE Controller, 3840 x 2160 pixels, AV repeater, 100 m, Wired, Black
SDVoE is a globally recognised standard for high quality distribution of AV content with other features, including control, matrix, video wall and multi view over longer distances via 10G Network with no compressions and latency.
The Lindy SDVoE controller is a fast and reliable control system for 4K60 Over IP Extender installations. This unit provides a single interface to manage large installations including multi view functions and video walls with the option to create projects to simplify the control tasks. Device management is controlled by a web based visual interface with signal preview supporting drag and drop operations making setup of the installation fast and intuitive.
Provides dual network ports to isolate Controls and Multicast networks and it can be managed also via third-party RS-232 central control.
The convenient PoE gigabit interface allows users to install the unit without connecting the included PSU.
Please note: this unit works only when connected to a 10Gigabit network where several extender transceiver units (No.38365) are connected.
The Lindy SDVoE controller is a fast and reliable control system for 4K60 Over IP Extender installations. This unit provides a single interface to manage large installations including multi view functions and video walls with the option to create projects to simplify the control tasks. Device management is controlled by a web based visual interface with signal preview supporting drag and drop operations making setup of the installation fast and intuitive.
Provides dual network ports to isolate Controls and Multicast networks and it can be managed also via third-party RS-232 central control.
The convenient PoE gigabit interface allows users to install the unit without connecting the included PSU.
Please note: this unit works only when connected to a 10Gigabit network where several extender transceiver units (No.38365) are connected.
| Features | |
| Type Characteristics of the device. | AV repeater |
| Maximum resolution The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. | 3840 x 2160 pixels |
| Cable types supported | Cat6 |
| Maximum transfer distance The greatest distance over which the data/signal can be transferred. | 100 m |
| Maximum refresh rate | 60 Hz |
| Supported network protocols Network protocols tested as compatible with this product e.g. FTP,HTML, POP. | IP |
| Material The material from which a thing is or can be made e.g. wood, plastic. | Metal |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Ports & interfaces | |
| Connectivity technology The technology that enables connectivity of the device, e.g. wired or wireless. | Wired |
| Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable. |
 |
| RJ-45 input ports | 1 |
| RJ-45 output ports | 1 |
| USB ports quantity | 1 |
| USB connector type The type of USB connector/port that this product has. | Micro-USB |
| RS-232 input ports | 2 |
| 3.5 mm (1/8-inch) in |
|
| 3.5 mm (1/8-inch) out |
|
| Remote (IR) input | 1 |
| Remote (IR) output | 1 |
| DC-in jack The socket/plug where the DC electricity supply connects to the device. |
|
| Power | |
| Power source type What the power source is. | DC |
| Operating voltage Defines the range of operating voltages available | 12 V |
| Output current | 1 A |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 40 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 60 °C |
| Operating relative humidity (H-H) | 20 - 90% |
| Storage relative humidity (H-H) | 20 - 90% |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 204 mm |
| Depth The distance from the front to the back of something. | 98.5 mm |
| Height The measurement of the product from head to foot or from base to top. | 21.5 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 760 g |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| Package width The distance from one side of the packaging to the other. | 255 mm |
| Package depth The distance from the front to the back of the packaging. | 157 mm |
| Package height The distance from the top to the bottom of the packaging. | 77 mm |
| Package weight Weight of the packaged product. | 960 g |
| Package type The type of product package e.g. box. | Box |
| Packaging content | |
| AC adapter included |
|
| Cables included | IR |
| Quick start guide Instructions, either online, as a computer program or in paper form, to allow you to set up and start using the product quickly. |
|
| Mounting kit |
|
| Technical details | |
| Special features | API support, 4 channel GPIO control ports (5V/12V optional level) |
| Sustainability compliance |
|
| Sustainability certificates | CE, Federal Communications Commission (FCC), REACH, RoHS, UKCA |
| SKU | 788717 |
| MPN | 38364 |
| Brand | Lindy |
| Product Condition | Brand New/Unused |
| Product Use | General |
| Stock Availability | Available for Shipping |
