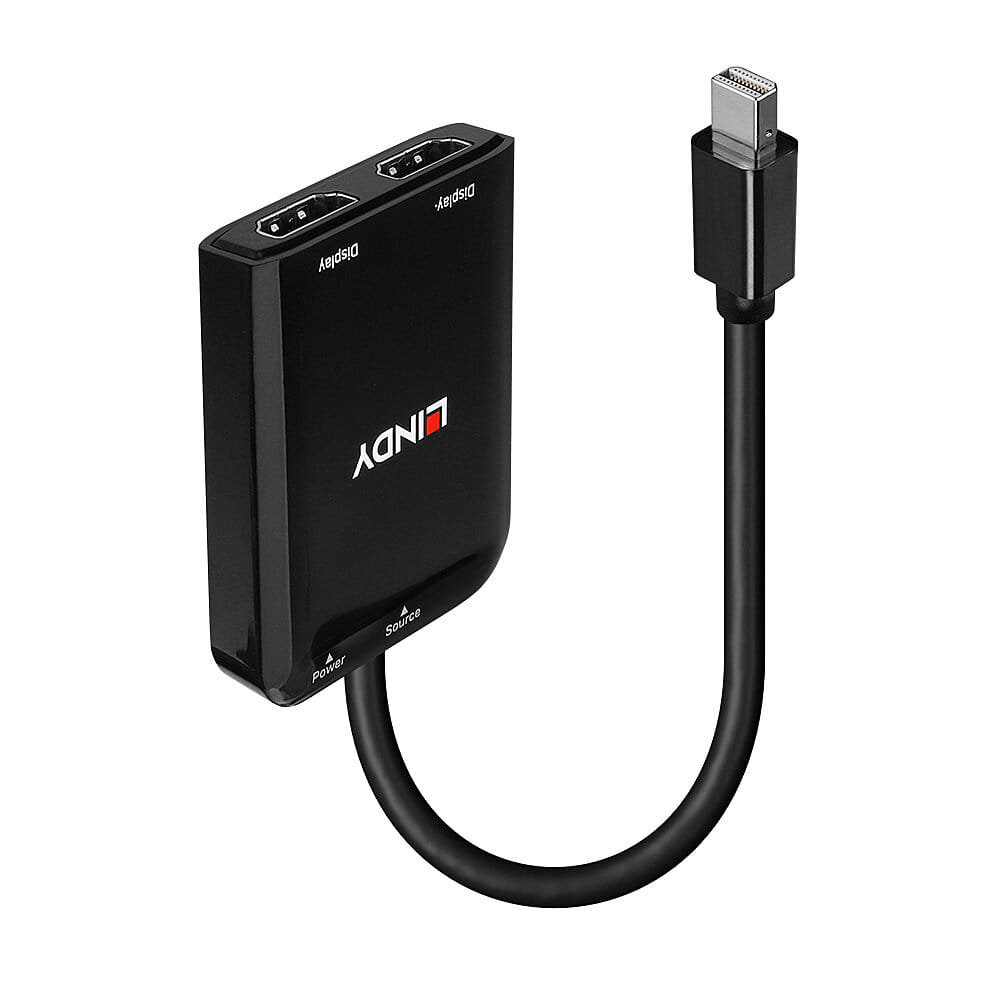

Lindy 38432, Mini DisplayPort, HDMI, 21600 Mbit/s, 30 Hz, 2160p, 3840 x 2160 pixels
The Lindy mDP to 2 Port HDMI MST Hub is an ideal solution for expanding or duplicating Mini DisplayPort signals across 2 HDMI monitors or TVs. MST hubs allow for the connection of a single mDP source device including computers, laptops or notebooks to 2 separate HDMI displays, while also providing the ability to visualise content in multiple ways. Signals can be expanded across both displays to show large scale spreadsheets, create immersive panoramic gaming experiences or eye-catching digital signage in retail. Content can also be, independently shown on either display, great for developing a productive, multi-tasking working environment, or duplicated on both displays for use in hospitality, retail or educational scenarios.
With support up to 2 x 3840x2160@30Hz 4:4:4 8bit, content can be viewed in ultra-realistic quality, ideal for applications that require a high resolution output such as graphic design, while compatibility with a variety of graphics cards including AMD Eyefinity, ensures issue free multi-screen playback.
This active MST Hub supports DP++ and does not require the source or graphics card to support DP++ to provide dual-mode signals
Please note: This hub is not compatible with Apple products
With support up to 2 x 3840x2160@30Hz 4:4:4 8bit, content can be viewed in ultra-realistic quality, ideal for applications that require a high resolution output such as graphic design, while compatibility with a variety of graphics cards including AMD Eyefinity, ensures issue free multi-screen playback.
This active MST Hub supports DP++ and does not require the source or graphics card to support DP++ to provide dual-mode signals
Please note: This hub is not compatible with Apple products
| Ports & interfaces | |
| Host interface Interface that enables a host controller to communicate with a driver. | Mini DisplayPort |
| Hub interfaces A hub is a device for connecting multiple devices together. The hub interface is where the hub connects to other devices via input/output (I/O) ports. | HDMI |
| HDMI ports quantity The number of sockets (ports) for HDMI connections. HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor, video projector, digital television, or digital audio device. HDMI is a digital replacement for existing analog video standards. | 2 |
| HDMI version | 2.0 |
| DisplayPort version | 1.2 |
| Ports quantity The number of ports or external interfaces to which other equipment can be connected. | 2 |
| DC-in jack The socket/plug where the DC electricity supply connects to the device. |
 |
| Features | |
| Data transfer rate Rate at which data can be transferred, usually measured in units per second. May vary with network configurations. | 21600 Mbit/s |
| Maximum refresh rate | 30 Hz |
| Supported video modes The video modes that can be displayed by the device. | 2160p |
| Maximum resolution (HDMI) | 3840 x 2160 pixels |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Housing material What the casing of the product is made of. | Acrylonitrile butadiene styrene (ABS) |
| HDCP High-bandwidth Digital Content Protection (HDCP) is a form of digital copy protection to prevent copying of digital audio and video content as it travels across connections. |
|
| HDCP version | 1.4 |
| HD type Type of supported High Definition (e.g. Full HD, 4K Ultra HD). | 4K Ultra HD |
| Power | |
| Power supply type The type of power supply which this product uses. | USB |
| Input voltage The voltage (V) which is required to power the product. | 5 V |
| Input current | 1 A |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 254 mm |
| Depth The distance from the front to the back of something. | 49 mm |
| Height The measurement of the product from head to foot or from base to top. | 10 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 49 g |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| Package width The distance from one side of the packaging to the other. | 174 mm |
| Package depth The distance from the front to the back of the packaging. | 194 mm |
| Package height The distance from the top to the bottom of the packaging. | 10 mm |
| Package weight Weight of the packaged product. | 59 g |
| Package type The type of product package e.g. box. | Polybag |
| Packaging content | |
| Cables included | Micro-USB |
| Operational conditions | |
| Minimum operating temperature | -20 °C |
| Maximum operating temperature | 40 °C |
| Operating temperature (T-T) | -4 - 104 °F |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -40 - 80 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Sustainability | |
| Sustainability compliance |
|
| Sustainability certificates | Federal Communications Commission (FCC), UKCA, CE, REACH, RoHS |
| SKU | 788765 |
| MPN | 38432 |
| Brand | Lindy |
| Product Condition | Brand New/Unused |
| Adapter Type | HDMI Adapter, DisplayPort Adapter |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.lindy.com.au/ |
