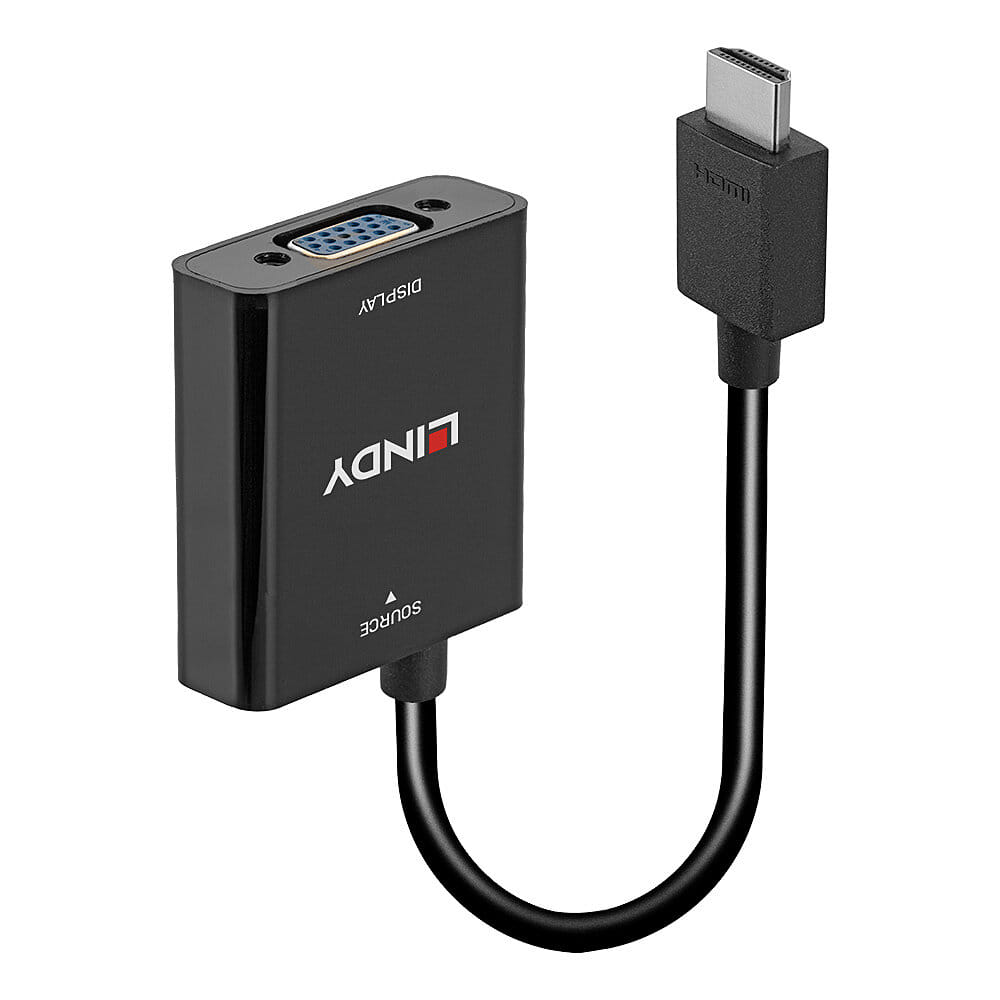

The LINDY HDMI to VGA converter is great value solution for connecting HDMI equipment to older VGA displays and projectors\
Features
Connector 1 form factor
Straight
Connector 2 form factor
Straight
Cable length
How long the cable is.
0.1 m
Connector 1
This is the first connector in the device.
HDMI Type A (Standard)
Connector 2
This is the second connector in the device.
VGA (D-Sub)
Connector 1 gender
The gender of the first connector of the product. Each half of a pair of mating connectors is assigned the designation male or female, the part bearing one or which fits into another being called male.
Male
Connector 2 gender
The gender of the second connector of the product. Each half of a pair of mating connectors is assigned the designation male or female, the indented one or the one fitting around the other being called female.
Female
HDMI version
1.3
Maximum resolution
The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels.
1920 x 1080 pixels
Supported graphics resolutions
The graphic resolutions that can be displayed by the device. The graphic resolution describes the width and height dimensions of a display, such as a computer monitor, measured in pixels.
1920 x 1080 (HD 1080),1920 x 1200 (WUXGA)
Supported video modes
The video modes that can be displayed by the device.
1080p
Data transfer rate
Rate at which data can be transferred. Usually expressed in units per second. May vary with network configurations.
4.95 Gbit/s
Maximum refresh rate
60 Hz
Product colour
The colour e.g. red, blue, green, black, white.
Black
Chipset
Set of electronic components in an integrated circuit that manages the data flow between the processor, memory and peripherals. It is usually found in the motherboard of a computer. Chipsets are usually designed to work with a specific family of microprocessors. Because it controls communications between the processor and external devices, the chipset plays a crucial role in determining system performance.
Algoltek AG6200A
Jacket material
Polyvinyl chloride (PVC)
Connector housing material
Acrylonitrile butadiene styrene (ABS)
Colour depth
12 bit
Plug and Play
Indicates whether this product supports is "plug and play". Plug and play is hardware or software that, after being installed ("plugged in"), can immediately be used ("played with"), as opposed to hardware or software which requires configuration.
Certification
CE, UKCA, FCC, RoHS, REACH
Operational conditions
Operating temperature (T-T)
The minimum and maximum temperatures at which the product can be safely operated.
0 - 70 °C
Storage temperature (T-T)
The minimum and maximum temperatures at which the product can be safely stored.
-10 - 80 °C
Operating relative humidity (H-H)
5 - 95%
Weight & dimensions
Cable diameter
The distance from one side of the cable to the other, with a straight line going through the middle of the cable.
4.8 mm
Connector 1 dimensions (WxDxH)
37 x 42 x 14.5 mm
Connector 2 dimensions (WxDxH)
21 x 17.4 x 9.6 mm
Weight
Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.
27 g
Packaging data
Quantity per pack
1 pc(s)
Package width
The distance from one side of the packaging to the other.
160 mm
Package depth
The distance from the front to the back of the packaging.
20 mm
Package height
The distance from the top to the bottom of the packaging.
160 mm
Package type
The type of product package e.g. box.
