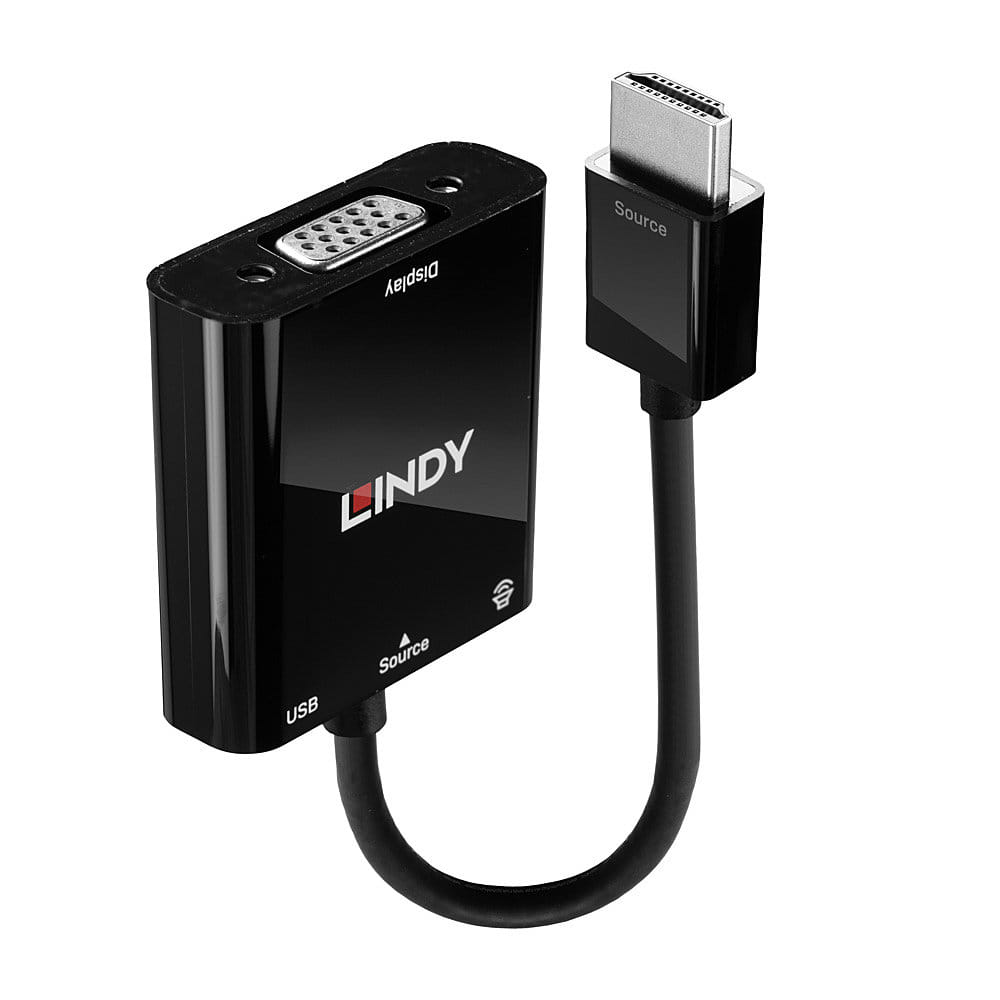

This adapter is ideal for connecting HDMI equipped sources such as laptops, ultrabooks and PCs to VGA displays. It converts the HDMI signal into an analogue VGA signal
| Features | |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| Connector contacts plating What the connector contacts are covered with (layer on top). | Nickel |
| Audio connector |
 |
| Audio connector type | 3.5 mm (1/8") |
| Power source What is providing power for the product e.g. mains electricity. | USB |
| Cable length How long the cable is. | 0.1 m |
| Connector 1 This is the first connector in the device. | HDMI Type A (Standard) |
| Connector 2 This is the second connector in the device. | VGA (D-Sub) |
| Connector 1 gender The gender of the first connector of the product. Each half of a pair of mating connectors is assigned the designation male or female, the part bearing one or which fits into another being called male. | Male |
| Connector 2 gender The gender of the second connector of the product. Each half of a pair of mating connectors is assigned the designation male or female, the indented one or the one fitting around the other being called female. | Female |
| HDMI version | 1.3 |
| Maximum resolution The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. | 1920 x 1200 pixels |
| Data transfer rate Rate at which data can be transferred. Usually expressed in units per second. May vary with network configurations. | 4.95 Gbit/s |
| Cable material The material e.g. copper, steel from which the cable is made. | Copper |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Jacket material | Polyvinyl chloride (PVC) |
| AWG wire size | 30 |
| Colour depth | 12 bit |
| Cable shielding The protective layer for the cable, typically made of plastic. | Aluminum mylar foil |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 70 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -10 - 80 °C |
| Weight & dimensions | |
| Cable diameter The distance from one side of the cable to the other, with a straight line going through the middle of the cable. | 4.8 mm |
| Packaging data | |
| Package type The type of product package e.g. box. | Polybag |
| SKU | 556528 |
| MPN | 38285 |
| Brand | Lindy |
| Product Condition | Brand New/Unused |
| Adapter Type | Monitor Adapter, HDMI Adapter, Audio Adapter |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 2 Years Warranty |
| Warranty Contact | https://www.lindy.com.au/ |
