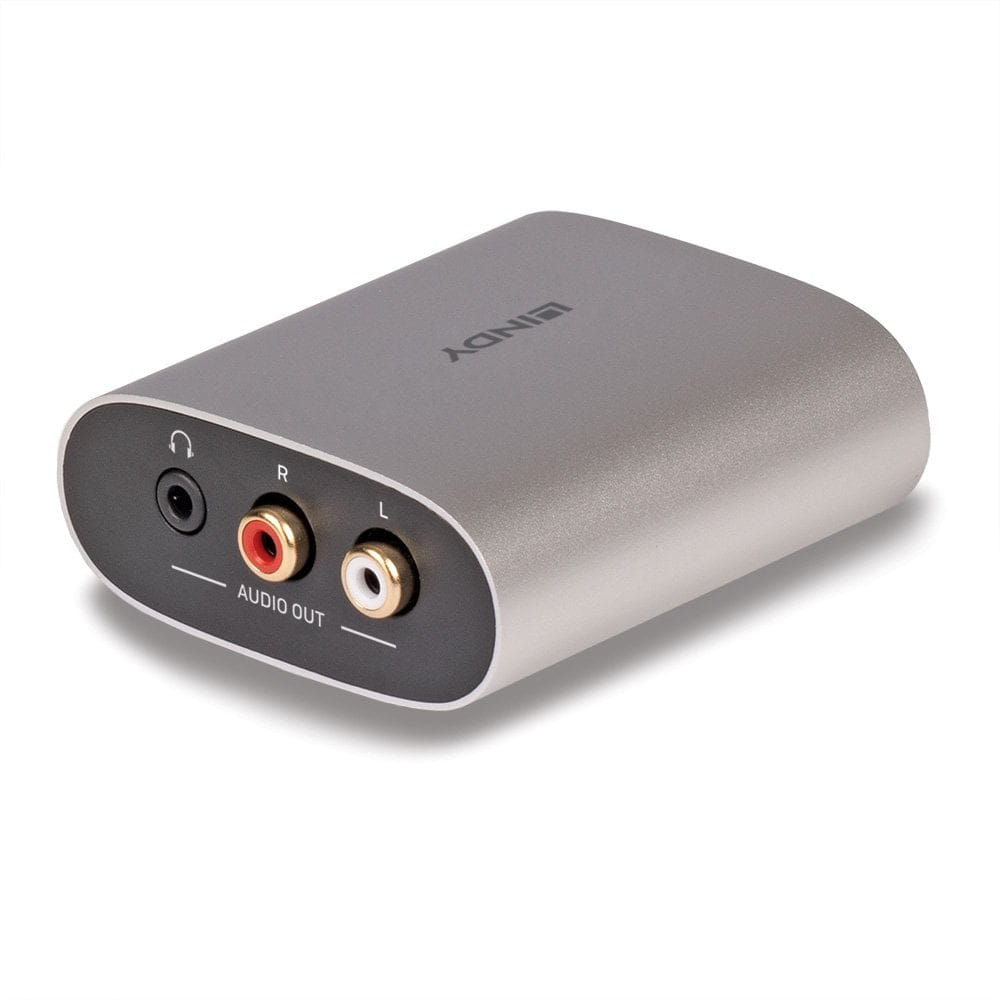

Lindy HDMI ARC Audio Extractor, Micro-USB, 500 mA, 5 V, 70 mm, 65 mm, 27 mm
The Lindy HDMI ARC Audio Extractor is an effective solution for extracting audio from a HDMI display to analogue audio devices.
The extractor supports high quality 4096x2160@30Hz resolutions with additional pass-through support for CEC, to allow source devices to be controlled from a TV control, and HDCP 1.4, this is ideal for use with source devices such as set top boxes, games consoles and Blu-Ray Players.
This audio extractor allows output to HDMI and analogue via L/R connections, ensuring seamless compatibility with an amplifier, sound bar or 2-channel speaker setup. With support for multi-channel audio including DTS: HD and Dolby Digital 5.1, this device will ensure an impressive three-dimensional surround sound performance to compliment films, games and music when connected to an audio device. The 3.5mm analogue connection ensures 2-channel speaker set ups can also be connected to the extractor, perfect for use with PC monitors which may require separate speakers.
The extractor supports high quality 4096x2160@30Hz resolutions with additional pass-through support for CEC, to allow source devices to be controlled from a TV control, and HDCP 1.4, this is ideal for use with source devices such as set top boxes, games consoles and Blu-Ray Players.
This audio extractor allows output to HDMI and analogue via L/R connections, ensuring seamless compatibility with an amplifier, sound bar or 2-channel speaker setup. With support for multi-channel audio including DTS: HD and Dolby Digital 5.1, this device will ensure an impressive three-dimensional surround sound performance to compliment films, games and music when connected to an audio device. The 3.5mm analogue connection ensures 2-channel speaker set ups can also be connected to the extractor, perfect for use with PC monitors which may require separate speakers.
| Inputs | |
| USB connector type The type of USB connector/port that this product has. | Micro-USB |
| HDMI in Port (socket) for HDMI input. | 1 |
| Outputs | |
| Audio (L/R) out The two sockets (ports) for transmitting left audio signal (white cable) and right audio signal (red cable). | 1 |
| Headphone out The socket for connecting headphones to the device. |
 |
| Technical details | |
| Frequency range The lowest and the hightest frequencies that can be inputted/produced. | 20 - 20000 Hz |
| Chipset Set of electronic components in an integrated circuit that manages the data flow between the processor, memory and peripherals. It is usually found in the motherboard of a computer. Chipsets are usually designed to work with a specific family of microprocessors. Because it controls communications between the processor and external devices, the chipset plays a crucial role in determining system performance. | SPHE8107S |
| HDMI version | 1.4 |
| CEC pass-through |
|
| Output impedance | 100 Ω |
| Supported sample rates | 192 kHz |
| Product colour The colour e.g. red, blue, green, black, white. | Silver |
| Housing material What the casing of the product is made of. | Plastic |
| Sustainability compliance |
|
| Sustainability certificates | CE, Federal Communications Commission (FCC), REACH, RoHS |
| Warranty period | 2 year(s) |
| Signal-to-Noise Ratio (SNR) This is the ratio of signal intensity to noise intensity. | 101 dB |
| Certification | California Proposition 65 |
| Power | |
| Power consumption | 500 mA |
| Input voltage The voltage (V) which is required to power the product. | 5 V |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 70 mm |
| Depth The distance from the front to the back of something. | 65 mm |
| Height The measurement of the product from head to foot or from base to top. | 27 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 81 g |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 40 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 60 °C |
| Operating relative humidity (H-H) | 20 - 90% |
| Packaging data | |
| Quantity The number of products there are. | 1 |
| Cables included | USB Type-A to Micro-USB Type-B |
| Manual |
|
| Package width The distance from one side of the packaging to the other. | 146 mm |
| Package depth The distance from the front to the back of the packaging. | 105 mm |
| Package height The distance from the top to the bottom of the packaging. | 65 mm |
| Package weight Weight of the packaged product. | 174 g |
| Package type The type of product package e.g. box. | Box |
| SKU | 788714 |
| MPN | 38363 |
| Brand | Lindy |
| Product Condition | Brand New/Unused |
| Adapter Type | HDMI Adapter, Audio Adapter |
